Description

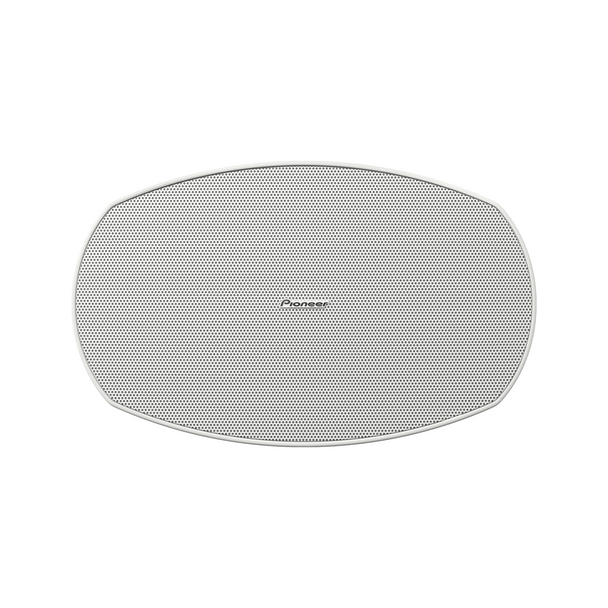

The CM-S58T continues Pioneer Pro Audio’s club loudspeaker heritage in a format tailored for surface-mounted installations. Its 8-inch two-way design makes it well-suited for hospitality venues, retail spaces, houses of worship, lounges, and other commercial environments where dependable performance and clean aesthetics are important.

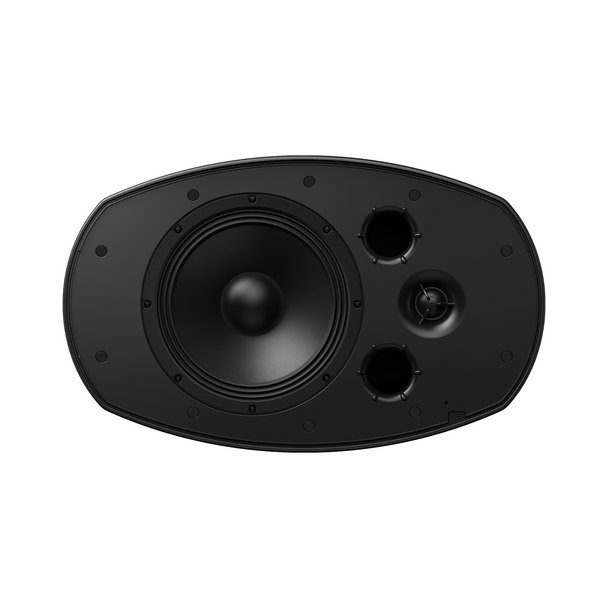

The newly developed 1-inch soft dome tweeter delivers high-definition high frequencies with clear articulation. With 100° × 100° conical dispersion, the CM-S58T offers controlled and even sound coverage, helping reduce gaps in distributed systems.
Low-frequency response is enhanced by the Vortex Bass Accelerator. The ribbed bass-reflex port design promotes smooth airflow, maximizing low-end performance while minimizing distortion and unwanted vibration.
The built-in transformer taps allow operation in both 70V/100V distributed systems and standard 8-ohm setups. This flexibility makes the CM-S58T adaptable to a wide range of installation requirements.

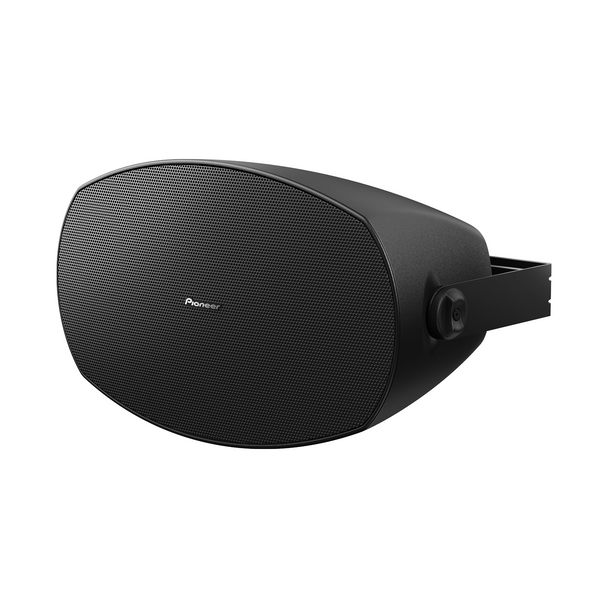

The IP54-rated enclosure provides resistance to dust and moisture, making the speaker suitable for certain outdoor applications. However, it should not be installed in areas exposed to excessive rain or heavy moisture. A sturdy U-bracket with rigid notches allows quick angle adjustment, and rear 60mm pitched holes provide alternative mounting options. The curved enclosure design blends naturally into modern interiors, whether mounted on flat or curved surfaces.
Why We Like This
The CM-S58T combines wider cabinet output from an 8-inch driver with controlled dispersion and flexible system compatibility. It’s a practical option for commercial installations that require durability, adjustability, and consistent sound coverage.
FAQs
Q: Can the CM-S58T be installed outdoors?
A: It is IP54 rated and suitable for select outdoor applications. It should not be used in areas exposed to excessive rain or heavy moisture.
Q: Does this speaker support 70V and 100V systems?
A: Yes. It includes built-in transformer taps for 70V/100V operation, along with standard 8-ohm compatibility.
Q: Is mounting hardware included?
A: Yes. A U-bracket is included for adjustable surface mounting.
If you're installing audio in a restaurant, retail store, or venue around Chicago or beyond, Gear Club Direct can help you choose the right setup for your space.
Tech Specs
Loudspeaker Type: |
Two-way passive, reflex-loaded |
Rigging and Hardware: |
1 × U-bracket 2 × M6 threaded mounting points on rear |
Grille: |
Punched Aluminum |
Enclosure: |
PP |
Frequency response (- 10 dB, Typical): |
53 Hz - 20 kHz |
Sensitivity (1W/1m): |
91 dB |
Nominal Impedance: |
8 Ω |
Power Handling (RMS/Program): |
90 W / 180 W |
Transformer taps: |
70 V: 60 W / 30 W / 15 W / 7.5 W 100 V: 60 W / 30 W / 15 W |
Dispersion: |
100 °H × 100 °V |
Maximum SPL: |
117 dB (peak) |
Driver Configuration: |
LF: 8" (200 mm) cone HF: 1" (25 mm) silk dome tweeter |
Connectors: |
Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-) |
Dimensions: |
11.10" x 18.03" x 9.9" |
Weight / piece: |
16.5 lbs. |
Color: |
CM-S58T-K: Black CM-S58T-W: White |
Packaging Type: |
2 Pieces per package |
