Description

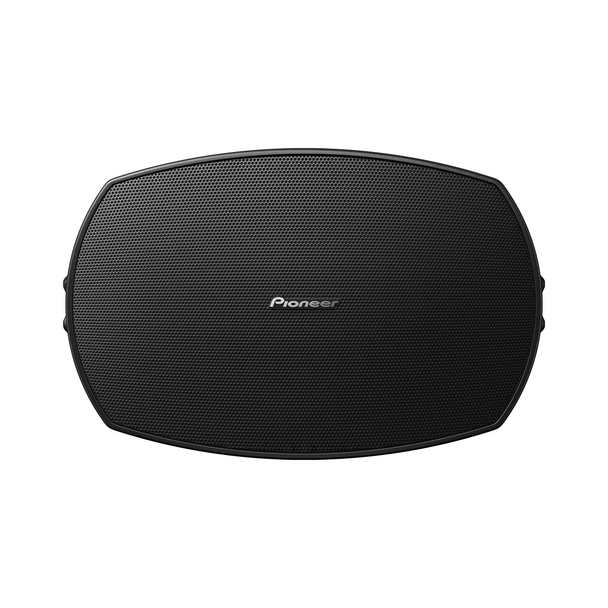

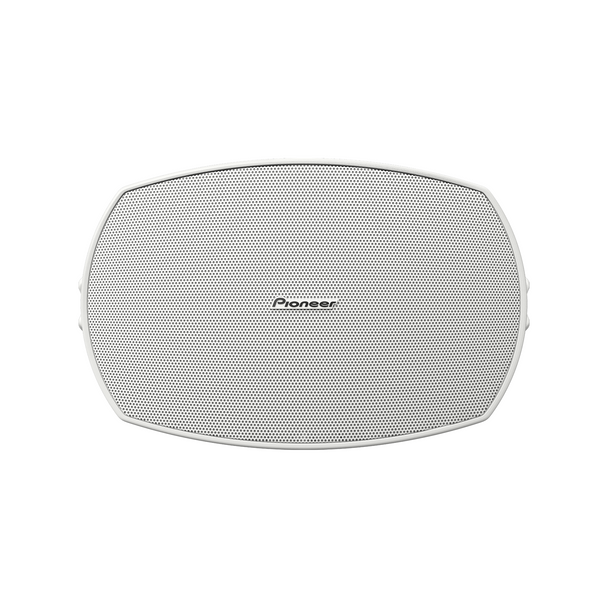

The CM-S56T builds on Pioneer Pro Audio’s club loudspeaker heritage and adapts it for versatile fixed installations. Its 6-inch two-way design is well-suited for retail stores, restaurants, hospitality venues, houses of worship, and other commercial spaces where surface mounting is preferred.
A newly developed 1-inch soft dome tweeter delivers detailed, high-frequency clarity. With 110° × 110° conical dispersion, the CM-S56T provides broad and consistent coverage, helping reduce the number of speakers required in distributed systems.
Low-frequency performance is supported by the Vortex Bass Accelerator. This ribbed bass-reflex port construction ensures smoother airflow, improving bass response while minimizing distortion and vibration.
The built-in transformer taps allow the speaker to operate in 70V/100V line systems or standard 8-ohm configurations, offering flexibility across a wide range of installations. The IP54-rated enclosure and protective terminal cover provide resistance to dust and moisture, making it suitable for some outdoor settings. However, it should not be installed in areas exposed to excessive rain or moisture.
Installation is straightforward with the included U-bracket featuring rigid notches for easy directional adjustment. For alternative mounting options, 60mm pitched rear holes allow placement in more challenging or compact spaces. The curved enclosure design blends naturally into modern interiors, whether mounted on flat or curved surfaces.
Why We Like This
The CM-S56T offers controlled coverage, flexible system compatibility, and durable construction in a clean, installation-friendly design. It works well in distributed audio systems where consistent sound and mounting flexibility matter.
FAQs
Q: Can this speaker be used outdoors?
A: Yes, it is IP54 rated and suitable for certain outdoor applications. However, it should not be exposed to excessive rain or moisture.
Q: Does it support 70V and 100V systems?
A: Yes. The CM-S56T includes built-in transformer taps for 70V/100V operation, as well as 8-ohm compatibility.
Q: Is mounting hardware included?
A: Yes. A U-bracket is included for adjustable surface mounting.
If you're installing audio in a restaurant, retail store, or venue around Chicago or beyond, Gear Club Direct can help you choose the right setup for your space.
Tech Specs
Loudspeaker Type: |
Two-way passive, reflex-loaded |
Rigging and Hardware: |
1 × U-bracket 2 × M6 threaded mounting points on rear |
Grille: |
Punched Aluminum |
Enclosure: |
PP |
Frequency response (- 10 dB, Typical): |
80 Hz - 20 kHz |
Sensitivity (1W/1m): |
88 dB |
Nominal Impedance: |
8 Ω |
Power Handling (RMS/Program): |
60 W / 120 W |
Transformer taps: |
70 V: 60 W / 30 W / 15 W / 7.5 W 100 V: 60 W / 30 W / 15 W |
Dispersion: |
110 °H × 110 °V |
Maximum SPL: |
113 dB (peak) |
Driver Configuration: |
LF: 6" (152 mm) cone HF: 1" (25 mm) silk dome tweeter |
Connectors: |
Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-) |
Dimensions: |
8.46" x 12.72" x 7.16" |
Weight / piece: |
11.2 lbs |
Environmental: |
IP54 |
Packaging Type: |
2 Pieces per package |
