Description

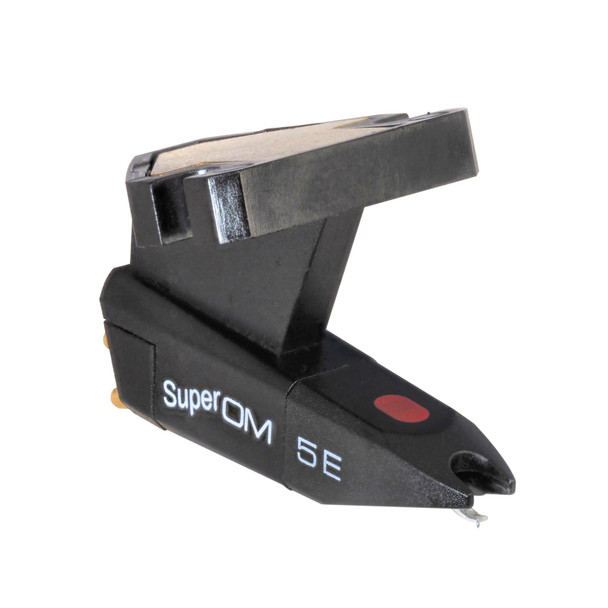

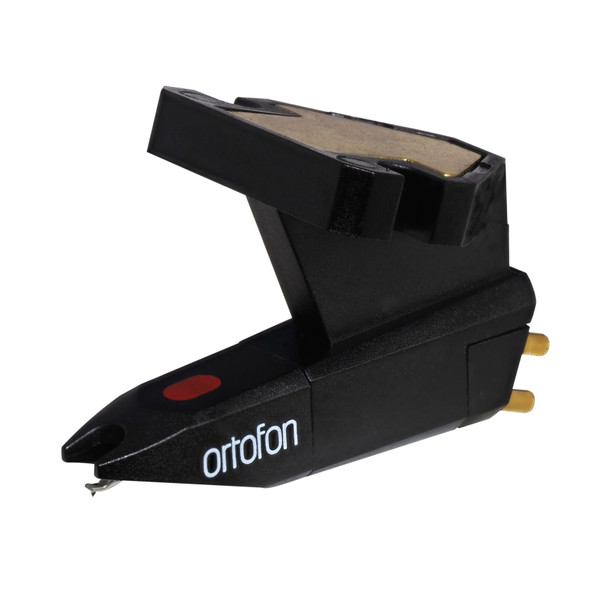

The Super OM 5E features improved lineraty, higher channel seperation, and an Elliptical stylus that provides balanced and distortion-free playback. The Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape. This results in better tracking and less distortion.
Tech Specs
Brand: |
Ortofon |
Cartridge colour: |
Black/Black |
Cartridge weight: |
incl. extra weight 5 g, excl. extra weight 2.5 g |
Channel balance at 1 kHz: |
1.5 dB |
Channel separation at 1 kHz: |
22 dB |
Compliance, dynamic, lateral: |
20 µm/mN |
Configuration: |
Single |
EAN: |
5705796013849 |
Frequency response 20 Hz - 20 kHz: |
20-22.000 Hz + 3 / -3 |
Internal impedance, DC resistance: |
1 kOhm |
Internal inductance: |
580 mH |
Manufacturer: |
Ortofon |
Manufacturer SKU: |
0130541 |
Model: |
super-om-5e |
Output voltage at 1 kHz, 5cm/sec: |
4 mV |
Product Model: |
Super OM 5e |
Recommended load capacitance: |
200-500 pF |
Recommended load resistance: |
47 kOhm |
Stylus tip radius: |
r/R 8/18 µm |
Stylus type: |
Elliptical |
Tracking ability at 315 Hz: |
60 µm |
Tracking angle: |
20° |
Tracking force range: |
1.5-2.0 g (15-20 mN) |
Tracking force, recommended: |
1.75 g (17.5 mN) |
