Ortofon

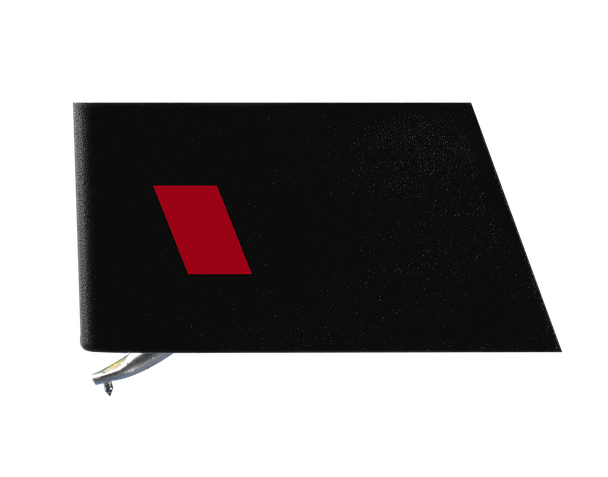

Ortofon Stylus VNL #1 Spherical stylus, flexible

$51.99
Ortofon Stylus VNL #1 Spherical stylus, flexible
Ortofon Stylus VNL #1 Spherical stylus, flexible
Ortofon Stylus VNL #1 Spherical stylus, flexible
Ortofon Stylus VNL #1 Spherical stylus, flexible
SKU:
vnl-i-stylus
UPC:
5705796130232
MPN:
5705796130232
Width:
1.75 (in)
Height:
1.50 (in)
Depth:
2.25 (in)
Shipping:
$16.00 (Fixed Shipping Cost)
Current Stock:

Description

Output voltage at 1000Hz, 5cm/sec. - 6 mV.
Channel separation at 1kHz - 20 dB.
Frequency response 20 Hz - 20 kHz -2/+4 dB.
Tracking ability at 315 Hz at recommended tracking force - 100 μm.
Compliance, dynamic lateral - 16 μm/mN.
Tracking force range - 3 - 5 g.
Tracking force recommended - 4 g.

Features

Stylus VNL I

Output voltage at 1000 Hz, 5cm/sec. - 6 mV. Channel separation at 1 kHz - 20 dB. Frequency response 20 Hz - 20 kHz  -2/+4 dB. Tracking ability at 315 Hz at recommended tracking force - 100 μm. Compliance, dynamic lateral - 16 μm/mN. Tracking force range - 3 - 5 g. Tracking force recommended - 4 g.

For information about set-up and alignment, stylus care and lifetime, break-in time, and troubleshooting, check out our DJ FAQ.

Download the VNL userguide

Download Concorde MkII Universal & VNL styli datasheet

Tech Specs

Brand:
Ortofon
Channel separation at 1 kHz:
20 dB
Compliance, dynamic, lateral:
16 μm/mN
Configuration:
Stylus
EAN:
5705796130232
Frequency response 20 Hz - 20 kHz:
2/+4 dB
Manufacturer:
Ortofon
Manufacturer SKU:
0050001
Model:
vnl-i-stylus
Product Model:
VNL I
Tracking ability at 315 Hz:
100 μm
Tracking force range:
3 - 5 g
Tracking force, recommended:
4 g
