Description

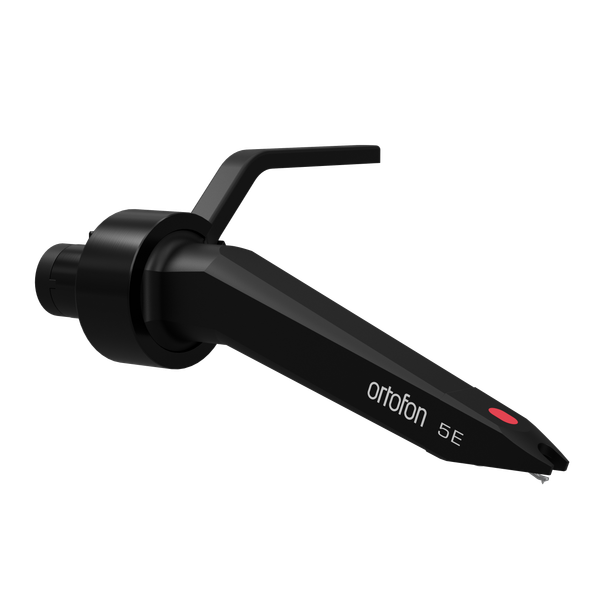

Settle into everyday vinyl listening with the Concorde 5E. Its elliptical diamond stylus supports detailed, balanced playback.
Features
- No-tool installation – easily mounts onto the tonearm for a quick setup.
- Elliptical stylus – improves tracking and enhances detail in the music.
- Balanced and natural sound – for music lovers seeking clarity and precision.
Tech Specs
Brand: |
Ortofon |
Cantilever material: |
Aluminium |
Cartridge colour: |
Black |
Cartridge weight: |
18.5 grams |
Channel balance at 1 kHz: |
< 2 dB |
Channel separation at 1 kHz: |
> 20 dB |
Coil system: |
Quad coils |
Coil wire material: |
OFC |
Compliance, dynamic, lateral: |
20 µm/mN |
Configuration: |
Single |
EAN: |
5705796031836 |
Frequency response 20 Hz - 20 kHz: |
+/- 3 dB |
Internal impedance, DC resistance: |
750 Ω |
Manufacturer: |
Ortofon |
Manufacturer SKU: |
01430600 |
Model: |
concorde-5e |
Output voltage at 1 kHz, 5cm/sec: |
4 mV |
Product Model: |
Concorde 5e |
Recommended load resistance: |
47 kΩ |
Stylus tip radius: |
r/R 8/18 µm |
Stylus type: |
Elliptical Diamond |
Tracking force, recommended: |
1.8 grams |
