Description

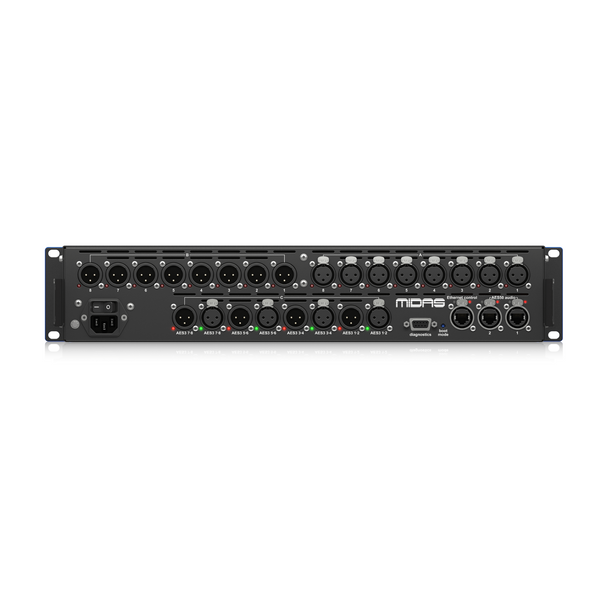

The DL155 from MIDAS is a stagebox that features eight analog inputs, eight analog outputs, eight channels of AES3 AES/EBU input and output and delivers the company's legendary sound quality in a cost effective, rugged 19", 2U rack mount chassis. Equipped with eight MIDAS microphone preamplifiers with 2.5 dB gain steps and dual redundant AES50 network ports, the unit is the ideal partner to the PRO1 and PRO2 digital consoles, significantly increasing the network capacity through additional analog and digital inputs and outputs.
Interface controls and feedback are available via the intuitively laid out front panel. The controls and LED indicators provide ease of use and instant status feedback. All primary connections use high quality balanced XLR connectors and the road-ready unit is ideally suited for mounting in an optional standard flight case.
Features
- Eight MIDAS analog microphone preamps with switchable +48V phantom power
- Eight active-balanced low-impedance line level outputs
- Eight AES3 (AES/EBU) digital inputs and eight AES3 outputs on XLRF/XLRM
- Selectable 96 or 48 kHz sample rate operation
- Dual AES50 Neutrik etherCON network ports with LED status indicators
- All settings programmable from front panel controls or console
- Remote operation up to 100 meters via CAT5 cable
- PSU status indicator LEDs and configuration LCD display on front panel
- Rugged 2U rack-mount chassis for durability in portable applications
- Auto-ranging universal switch-mode power supply
Tech Specs
Sample Rates: |
48 or 96 kHz |
Analog Inputs: |
8 x XLR 3-pin female Microphone |
Analog Outputs: |
8 x XLR 3-pin male Line |
Digital Inputs: |
4 x XLR 3-pin female AES3 |
Digital Outputs: |
4 x XLR 3-pin male AES3 |
Other Connectors: |
1 x RJ45 Ethernet 2 x Neutrik etherCON ports 1 x 9-pin D-Sub (diagnostics) |
Power Requirements: |
100~240VAC, 50/60 Hz |
Dimensions: |
19" 2U rackmount |
