Midas

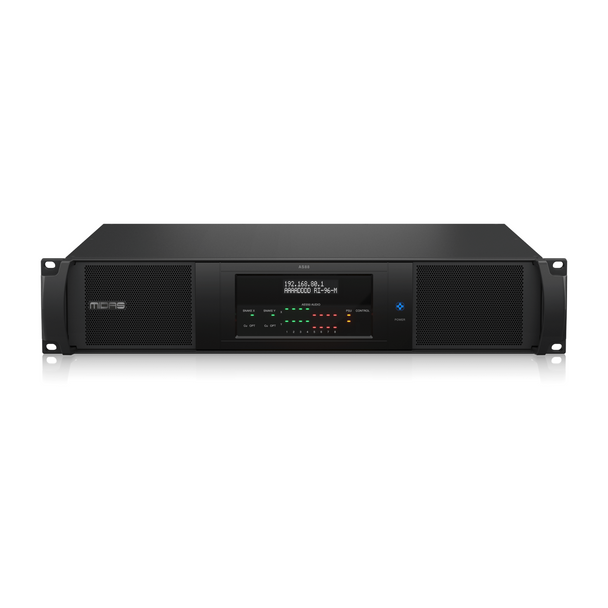

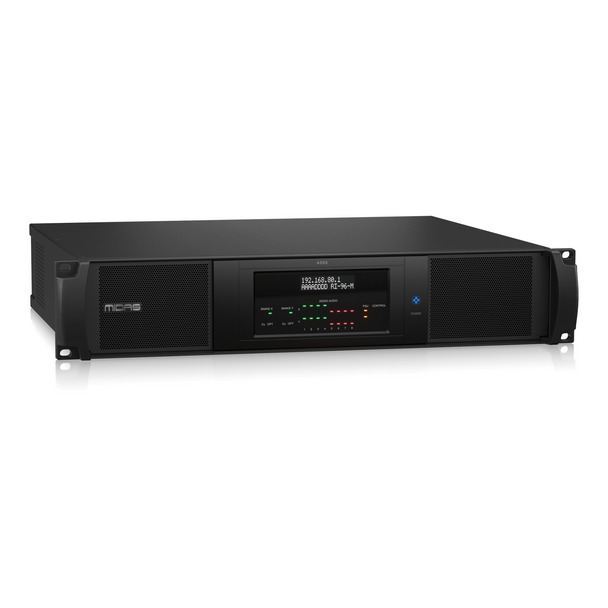

Midas AS88 Dual HyperMAC to 8 Port Dual Redundant AES50 Converter

$6,725.00
MIDAS AS88 Dual HyperMAC to 8 Port Dual Redundant AES50 Converter
MIDAS AS88 Dual HyperMAC to 8 Port Dual Redundant AES50 Converter
MIDAS AS88 Dual HyperMAC to 8 Port Dual Redundant AES50 Converter
MIDAS AS88 Dual HyperMAC to 8 Port Dual Redundant AES50 Converter
MIDAS AS88 Dual HyperMAC to 8 Port Dual Redundant AES50 Converter
SKU:
MIDAS-AS 88
UPC:
4033653000567
Width:
19.01 (in)
Height:
17.32 (in)
Depth:
3.46 (in)
Shipping:
Free Shipping
Current Stock:

Description

Designed to seamlessly convert a two high-bitrate HyperMAC connections into eight fully redundant AES50 connections and vice versa, the Midas AS88 ensures ultra-fast audio switching that's built for speed and reliability. The AS88 also supports up to 192 bidirectional channels at 96 kHz.

Features

  • Dual redundant HyperMAC to 8 redundant AES50 SuperMAC converter
  • Up to 192 bidirectional channels at 96 kHz
  • Dual redundant auto-ranging universal switch-mode power supply
  • Compact and rugged design
  • 2 RU rack-mountable design
  • Clocked from incoming AES50 or HyperMAC ports
  • Connection redundancy status available from connected console indicating cable state
  • Industry standard RJ45 connectors used for AES50 ports and copper snake connection
  • Industry standard dual-fiber optical connector used for optical-fiber snake connection

Reliable Redundancy

Using the AS88 with Midas's flagship HD96 console enables full redundancy across both console Snake ports - unlocking greater channel capacity and enhanced system reliability. Furthermore, AS88's utilization of advanced FPGA-based switching technology ensures dependable HyperMAC failover to a redundant connection when needed.

Seamless Integration

Equipped with rugged industry standard RJ45 and optical connectors, the AS88 ensures seamless system integration and reliable, high-performance audio transmission over long distances. Engineered for professionals who demand rock-solid stability and uncompromising audio quality, it's the trusted solution for touring and live sound environments.

Tough and Dependable

The AS88 features a rugged 2 RU rack-mountable chassis that fits seamlessly into any live or portable sound setup. Its compact size maximizes space, while its durability ensures it can withstand the physical demands and high-pressure environments of life on the road.

Tech Specs

Panel Type:
LCD
Display:
2 x 20 Character
Indicators:
Snake X Status: 2 x Green / 2 x Red
Snake Y Status: 2 x Green / 2 x Red
PSU Status: 2 x Green / 2 x Red
AES50 Status: 16 x Green / 16 x Red
Ethernet Status: 1 x Green
Audio I/O:
16x RJ45 AES3/S/PDIF Output
Power Source:
AC Input (Included)
AC Input Power:
100 to 240 VAC, 50 / 60 Hz
Power Consumption:
25 W (Maximum)
Power:
Power Switches: 2 x Rocker on Rear Panel
Power Inlets: 2 x IEC C13 on Rear Panel
Power Indicator: Blue LED on Front Panel
