Description
The LiteGear LiteTile Spectrum 8 Edison kit combines a foldable full-color LED head with a LiteDimmer Spectrum AC/DC 400, a 25ft PDX cable, and an Edison mains cable. Its engineered-fabric light head provides broad, controllable illumination for studio and location production.
Features
- 400W nominal light-head power; 480W maximum
- 1700K–20,000K color-temperature range
- Six-color hue and saturation control with plus/minus green adjustment
- 64 individually controlled pixels
- 120° HPA beam angle
- IP65-rated light head
- LiteDimmer Spectrum AC/DC 400 included

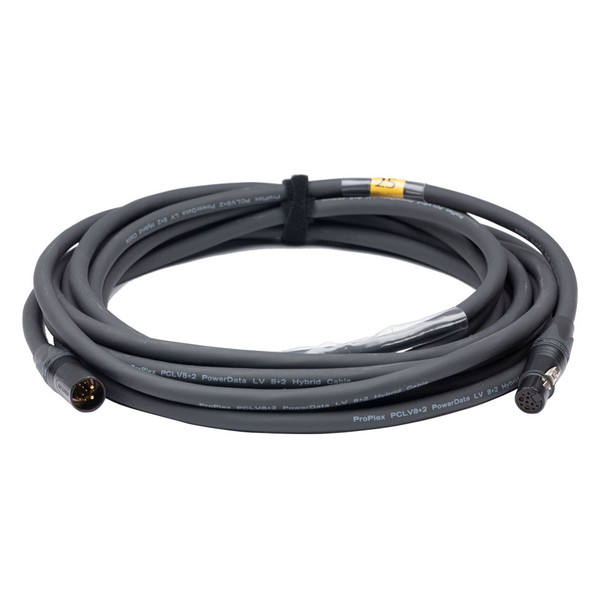

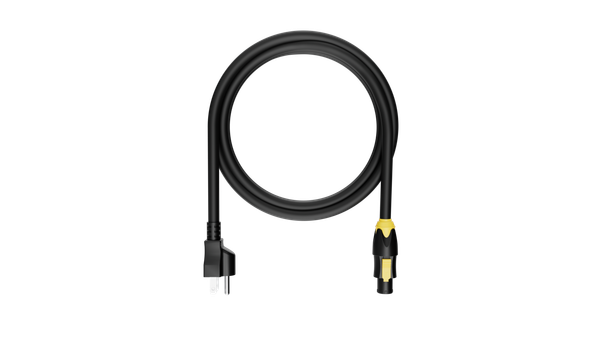

- 25ft PDX cable and powerCON TRUE1 TOP Edison mains cable included
Why We Like This
The foldable head offers placement options where rigid panels are awkward to position, and the included dimmer and cables simplify assembling a matched lighting setup.
FAQs
Q: What comes with the Edison kit?
A: The kit includes the LiteTile Spectrum 8 head, LiteDimmer Spectrum AC/DC 400, a 25ft PDX cable, and a powerCON TRUE1 TOP Edison mains cable.
Q: Does the head plug directly into AC mains?
A: The light head requires 48VDC through its PDX connection. Use the included LiteDimmer and mains cable for the kit connection.
Q: What is the published weather rating?
A: The light head is rated IP65. That head rating does not establish the same protection rating for every kit component.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Beam Angle: |
120° HPA |
CRI: |
>= 95 |
Color Temperature Range: |
1,700K to 20,000K |
Colored Light: |
6-color, wide gamut hue and saturation control |
Dimming Range: |
0 to 100% continuous when paired with a compatible LiteGear dimmer |
IP Rating: |
IP65 |
Included Dimmer: |
LiteDimmer Spectrum AC/DC 400 |
Included Mains Cable: |
powerCON TRUE1 TOP mains cable, Edison |
Included PDX Cable: |
25 ft |
Input Current: |
1.1A per module |
Input Voltage: |
48VDC |
Kit Variant: |
Edison |
LED Lifetime: |
50,000 hrs |
Pixels: |
64 individual large format pixels |
Power: |
50W Nominal per module |
Power & Data Connector: |
PDX |
Tint Control: |
Full plus and minus green adjustment |
Total LED Quantity: |
6,144 |
Total Power: |
400W Nominal (480W Maximum) |
