Description

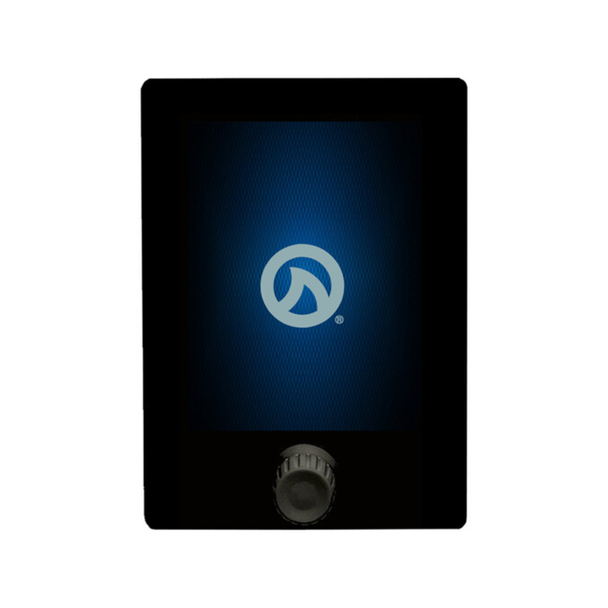

This wall-mounted Connect Series Programmable Touch Screen with Rotary Encoder from LEA Professional provides you with intuitive control of LEA Amplifiers such as the Network and Dante Connect series as well as the 1504 and all other Connect series amplifiers.
It is easily programmed via the amplifier's WebUI software and can control and group multiple amplifier channels for system volume and source selection. The controller mounts onto a single gang wall box, and supports PoE power.
Individual Zone Control
- Volume and mute control for a single zone
- Source select for a single zone
- Control up to 100 single zones from one CS Touch
Group Control
- Group up to 100 amplifier channels into a single group control
- Group source select up to 65 LEA Connect series amplifier channels
- Group volume control, mute, and source select
- Make and control multiple groups from a single CS Touch
- Multiple Connect Series Touch can be used on the same network
Programmable Functions
- Group volume control: ability to control up to 100 individual channel zones or one control for 100 channel zones grouped together
- Volume subgroup control: control the volume level of a specific zone within a group volume control
- Group source select: recall amplifier input sources on up to 65 channels grouped together
Tech Specs
Panel Type: |
LCD |
Display Size: |
Not Specified by Manufacturer |
Native Resolution: |
240 x 320 |
Touchscreen: |
Yes |
Power Source: |
PoE |
DC Input Power: |
44 to 57 VDC |
Power Consumption: |
3.5 W (Maximum) |
Mounting: |
Top: 1x Through Hole Bottom: 1x Through Hole |
Material of Construction: |
Aluminum |
