Description

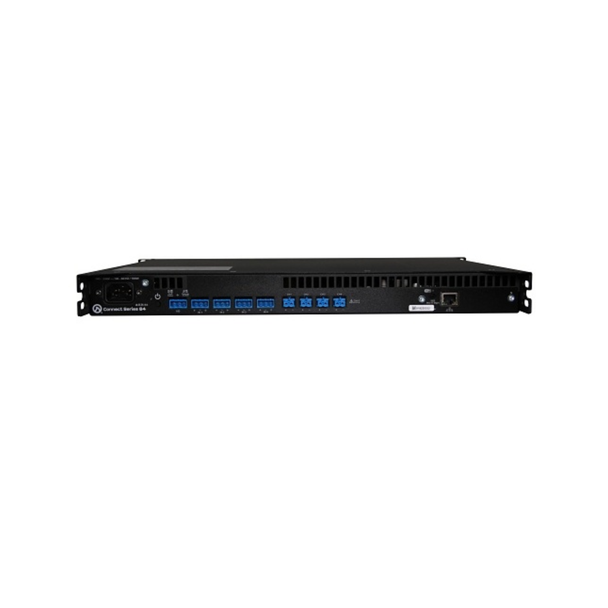

The Connect Series 84 offers a feature-rich amplifier in a compact design. With 96kHz DSP, LEA Cloud, SharkWare, and more—it’s perfect for your next install. Each model supports Lo-Z, 70V, or 100V, plus three network options: built-in Wi-Fi, existing Wi-Fi, or Ethernet. Ideal for versatile applications.
Features
- WebUI works on any device with no software to download -- just three clicks from anything
- Direct LoZ and HiZ (70V or 100V) selectable per channel
- Proprietary Smart Power Bridge allows user to bridge a channel to achieve double the power of that channel without sacrificing an amplifier channel
- 3 Ways to Connect 1.) Built-in WiFi Access Point 2.) Connects to existing WiFi network 3.) Local Area Network Ethernet connection
- 96kHz Analog Devices DSP with Input Routing, multiple 48dB/Oct crossover filters, 8 Parametric EQ filters, user configurable speaker limiters, and real-time load monitoring
- Universal Switch Mode Power Supply with PFC. Operation from 100VAC - 240VAC +/-15%
- Analog fully routable inputs. Route any input to any output
- External I/O Port for Remote On/Off and fault monitoring
- Highly Efficient Class D Output Stage for low AC Current draw
- AWS IoT Core lets integrators send their Connect Series systems into the Cloud, where they can access and control securely, from anywhere in the world -- no VPN required
Tech Specs
INPUTS: |
Analog: 4 Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity |
THD+N: |
0.1% (20Hz to 20kHz) |
FREQUENCY RESPONSE: |
20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω |
SIGNAL TO NOISE LEVEL: |
105dB (20Hz to 20kHz referenced to 8Ω) |
CROSSTALK: |
70dB (20Hz to 20kHz) |
DSP ARCHITECTURE: |
Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters |
INPUT MATRIX: |
Routable matrix; any input to any output with primary and secondary input priority |
CROSSOVERS: |
Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth) |
OUTPUT DELAY: |
100ms per channel |
OUTPUT PROTECTION: |
DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection |
USER INTERFACE: |
Web Browser User Interface, 3rd Party API control, or CLOUD control |
AC MAINS: |
100VAC - 240VAC +/- 15% 50Hz or 60Hz |
