Description
Developed in Germany, the UHF diversity wireless systems from the U300 series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584-608 MHz, 655-679 MHz, 823-832 MHz + 863-865 MHz, 470-490 MHz or 514-542 MHz. Up to six U300 systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation. U300 transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone's frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack's input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting.
The U300 receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both a balanced XLR and an unbalanced 6.35 mm audio output. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers. U300-series wireless systems feature a fresh, modern design and are available as vocal sets with receiver and dynamic handheld microphone with cardioid characteristic, bodypack and headset or bodypack and lavalier microphone. The microphone characteristic can be changed using U500-series replaceable heads. U300 instrument sets are available with bodypack and clip-on microphone for wind instruments or a double-shielded low-capacitance cable for guitars and basses.
Features:
- Diversity UHF wireless system with FM technology.
- 12 selectable channels.
- 100 m transmission range in ideal conditions.
- Simultaneous operation of up to 6 systems.
- ASC infrared transmitter and receiver syncing.
- Pilot tone squelch.
- 10 h transmitter operation on two AA batteries.
- Metal housing.
- Optional rackmount kit available as accessory.
Specifications
LDU3047BP - LD Systems U304.7 BPG (USA version) Body Pack Transmitter 470 - 490 MHz (only available in the USA)
- Product type: Wireless Microphone System Accessories
- Type: Bodypack
- Transmission frequency range: 470 - 490 MHz
- Channels: 12
- Groups: 1
- Weight: 0,085 kg
- Inputs: Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
- Frequency response: 25 - 16000
- Rated HF output power: 10 mW
- Signal-to-noise ratio: 104 dB
- Operating time: >10 h
- Controls: Gain (3-way switch) , Power On/Off
- Indicators: ASC IR Sync (Green/Amber Blinking LED) , Battery (low battery: red) , Power LED (Power ON: green)
- Power supply: 2 x AA battery
- Width: 65 mm
- Height: 91 mm
- Depth: 25 mm
- Other features: Belt clip , IR frequency synchronisation , Pilot tone

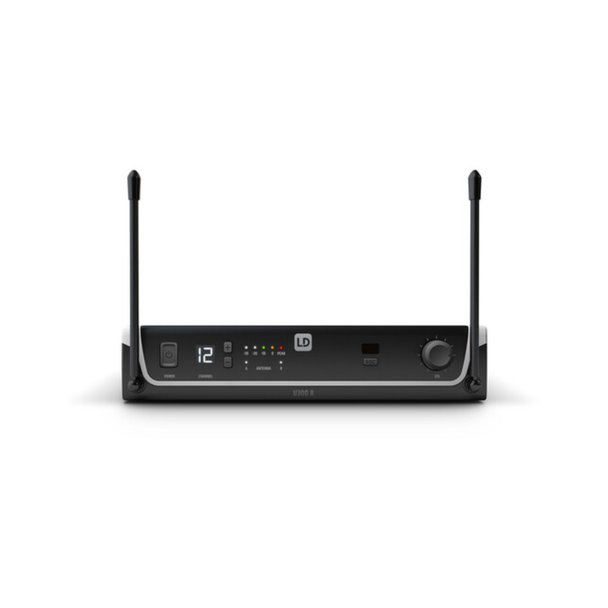

LDU3047R - LD Systems U304.7 BPG (USA version) Receiver 470 - 490 MHz (only available in the USA)
- Product type: Wireless Microphone System Accessories
- Type: Receivers
- Modulation Type: FM
- Transmission frequency range: 470 - 490 MHz
- Channels: 12
- Groups: 1
- Weight: 0,7 kg
- Antenna inputs: 2 x fixed
- Frequency response: 25 - 16.000
- Noise reduction: Squelch
- Transmission optimization: Pilot tone
- Total Harmonic Distortion (THD): < 0.3 %
- Signal-to-noise ratio: 104 dB
- Audio output, balanced: XLR
- Audio output, unbalanced: 6.3 mm jack, switchable unbalanced output level
- Max. output level: +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
- Controls: ASC , Channel down , Channel up , Line/Instrument Level , Power , volume
- Indicators: 5 LED VU meters , Antenna A/B , LC display
- Power supply: 12 V DC - 18 V DC (500 mA), external power supply
- Width: 211 mm
- Height: 43 mm
- Depth: 120 mm
- Accessories (included): 2 x AA batteries , Audio cable , Power supply
- Other features: IR frequency synchronisation
LDU500GC - LD Systems U304.7 BPG (USA version) Instrument cable for U500 series bodypack
- Product type: Wireless Microphone System Accessories
- Type: Guitar Cables
- Connector 1: Mini-XLR (3-pin, female)
- Connector 2: 6.3 mm jack
- Cable Length: 0.8 m
- Weight: 0.045 kg
