Description

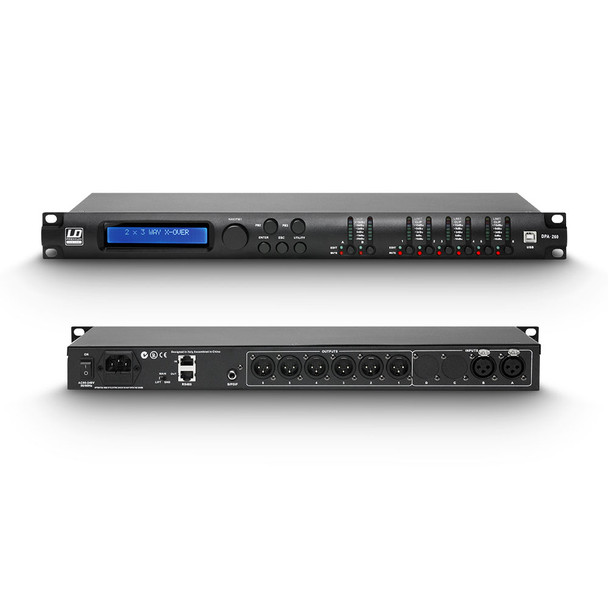

The LD DPA 260 is a 6-channel 19” speaker processor for our VA4 and VA8.
- Product number: LDDPA260
- Product type: Signal Processors
- Type: 6-channel, 6-channel
- AD/DA converter: 24bit
- Sampling frequency: 48kHz
- Frequency response: 20 - 20,000Hz
- Filter type: Bessel, Butterworth, Linkwitz-Riley
- Delay: max. 848.99mS
- Filter slew rate: 24dB/oct, 12dB/oct, 6dB/oct, 18dB/oct
- Dynamic range: 111 (A-weighted)dB
- Signal-to-noise ratio: > 106dB
- THD: < 0.005 %
- Crosstalk: 107 (+ 20 dBu @ 1 kHz)dB
- Max. input level: +20 dBu (balanced)dBu
- Max. output level: +20 dBu (balanced)dBu
- Input impedance (kOhms): 27kOhm
- Output impedance: 120Ohm(s)

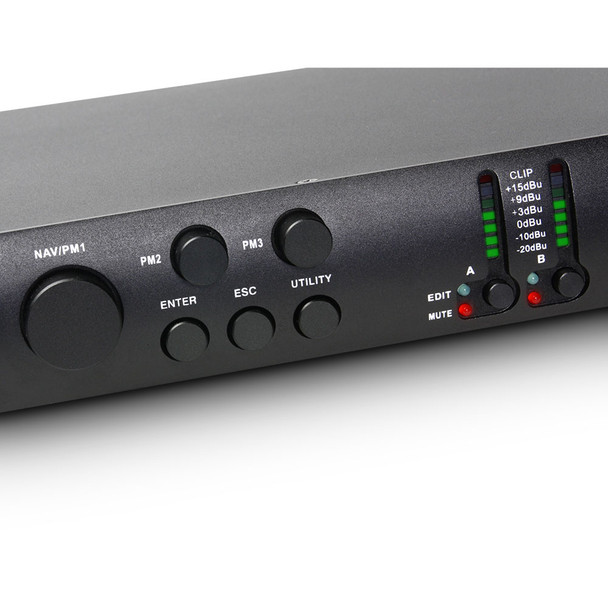

- Controls: Edit Input 1 - 2, PAR 3, Escape, Enter, Utility, PAR 2, Edit Output 1 - 6, NAV / PAR 1

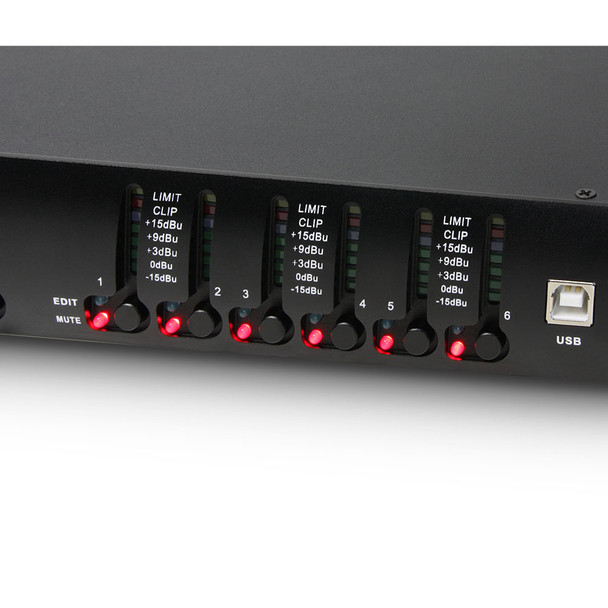

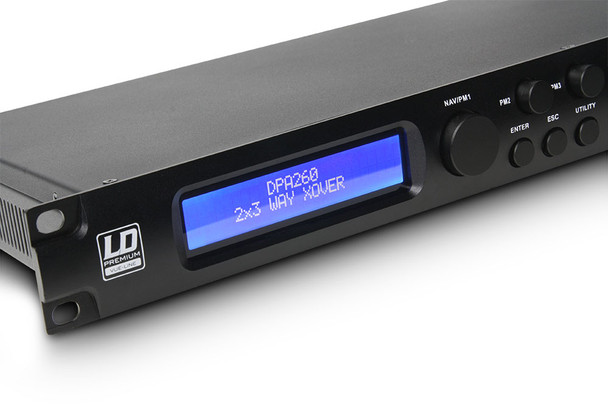

- Indicators: 2 x 6-segment input level display, 2 x input edit LED, 2 x input clip, multifunction LC display, 6 x output mute LED, 2 x input mute LED, 6 x 5-segment output level display, 6 x output limit, 6 x output clip, 6 x output edit LED
- Line inputs: 3

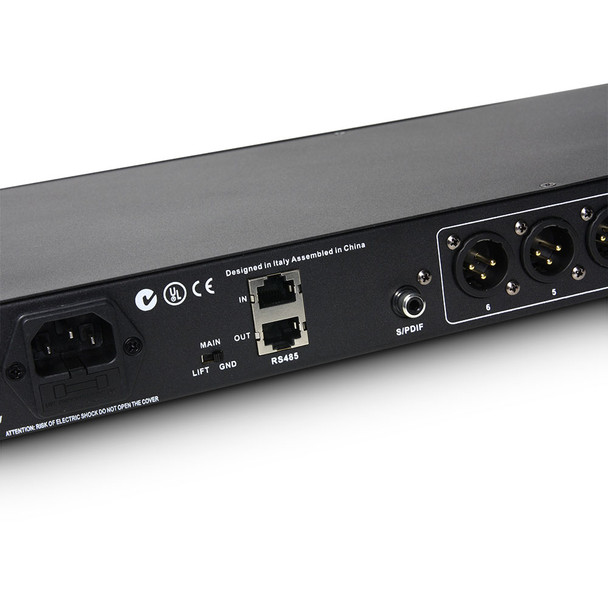

- Line input connectors: 2 x XLR (bal.), 1 x stereo digital (SPDIF coax)
- Line outputs: 6
- Line output connectors: XLR (balanced)
- Interfaces: USB, RS485 (in & out)
- Mains connector: IEC socket
- Operating voltage: 90 V AC - 250 V AC, 50 - 60 Hz
- Width: 482mm
- Height: 44.5mm
- Depth: 225mm
- Weight: 3.5kg
Tech Specs
