Description

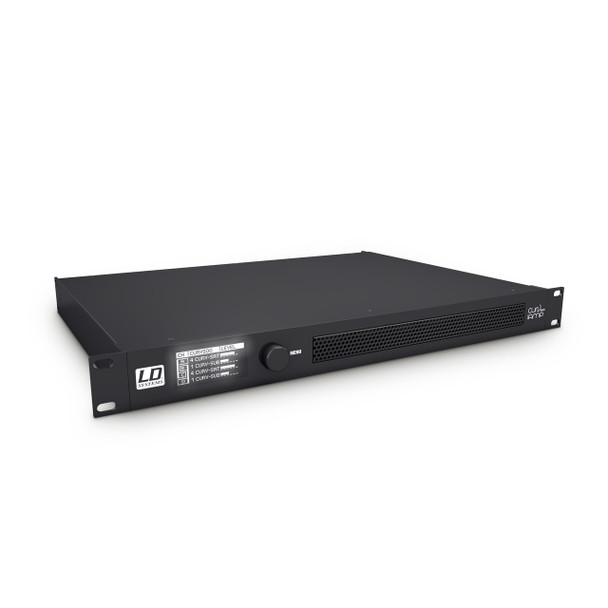

Purpose-designed for CURV 500® installations the I AMP is a low-profile 4-channel Class D rackmount amplifier with high-efficiency switch mode power supply and 10 Hz – 22 kHz frequency response. Sporting DSP control with presets for various satellite and subwoofer configurations, delay and parametric EQ each channel delivers 240 watts RMS at 4 ohms with less than 0.01% THD.
Operating the I AMP is simple and intuitive with just a single push encoder and easily readable high-contrast OLED display. It features a soft start circuit, DC, overcurrent, thermal and short circuit protection plus a temperature controlled low- noise fan. Input is on balanced XLR and terminal block connectors. The I AMP is capable of driving up to six CURV 500® satellites or one CURV500ISUB subwoofer per channel providing terminal block and speakON-compatible output connectors.
Features
- 4 channels with DSP control
- Purpose-designed for CURV 500® installations
- Low-profile 1U 19" rackmount construction
- Drives up to six CURV 500® satellites or one CURV 500® ISUB subwoofer per channel
- Single push encoder operation
- High-contrast OLED display
- Temperature controlled low-noise fan
- High-efficiency switch mode power supply
- Only 6.8 kg
Tech Specs
Product type: |
Power Amplifiers |
Type: |
Installation Power Amplifiers |
Rated ouput power (1kHz @ 2,7 Ohms): |
4 x 240 W |
Rated ouput power (1kHz @ 4 Ohms): |
4 x 240 W |
Rated ouput power (1kHz @ 8 Ohms): |
4 x 120 W |
Rated ouput power (1kHz @ 16 Ohms): |
4 x 60 W |
Output circuitry: |
Class D |
Frequency response: |
10 - 22000 |
Total Harmonic Distortion (THD): |
< 0,01 % |
Controls: |
Push encoder |
Line inputs: |
4 |
Line input connectors: |
Terminal block, XLR |
Loudspeaker outputs: |
4 |
Speaker output connections: |
Speakon compatible, Terminal block |
Power supply: |
Switching power supply |
Power consumption @ full load: |
1100W |
