Description

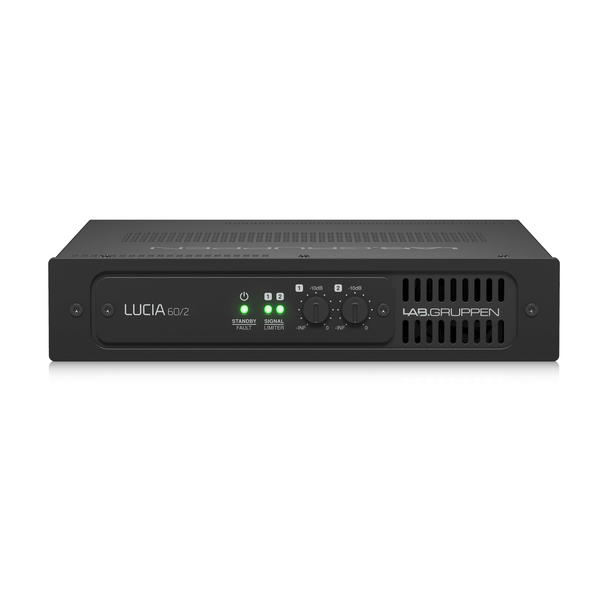

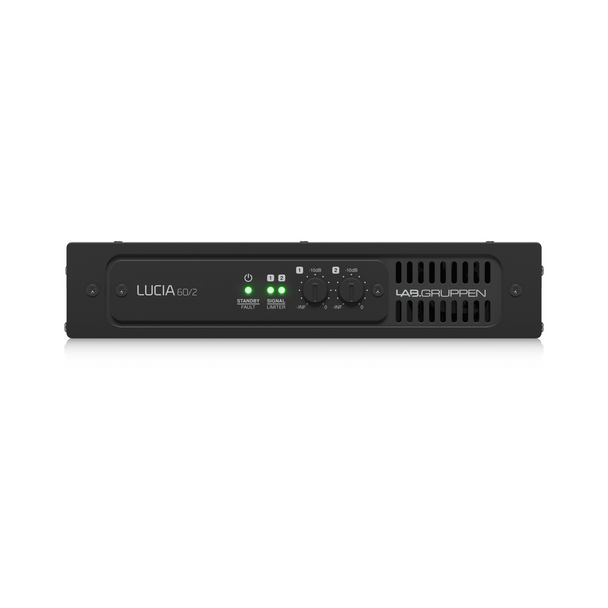

System installers in need of a high-quality amplifier should check out the Lab.Gruppen LUCIA 60/2, a compact, 2-channel 60W amplifier for A/V installation applications. Localized Utility Compact Intelligent Amplification (LUCIA) offers advanced audio performance and flexibility to a decentralized approach in AV systems design. Power, processing, control, and I/O are conveniently placed exactly where they are needed. In many AV applications requiring consistent performance, LUCIA offers a logical, cost-efficient, and scalable solution that often eliminates the complications and added expense of a centralized equipment room.
The half-rack space enclosure provides fast and easy installation. The supplied wall-mount bracket allows for deployment in discrete locations, such as behind video displays or next to a projector or podium. The Lab.Gruppen LUCIA 60/2 includes Euroblock input and output screw terminals, a power cord, and mounting hardware.
Features
- Compact amplifier, which offers full output power across a range of loads with 2 x 30W into 8, 4, or 2 ohms
- Comprehensive onboard DSP with loudspeaker processing and innovative features, which enhance performance and simplifies system design and commissioning
- Configuration software wizard for initial setup and advanced editor for preset configuration (LUCIA connection via USB) available for Windows and Mac
- Energy efficient with Energy Star certification for supreme green credentials and exceptionally low lifetime running costs
- Automatic Dynamic Loudness Contouring adapts to optimize performance at any output level
- Comprehensive DSP features with per-channel presets for high-pass filter, parametric EQ, multiband compressor, and look-ahead limiter
- Optimized presets available for a wide range of loudspeaker models for fast configuration
- Enhanced Bass Profile for extended LF response with small loudspeakers
- Proprietary Auto Load Sense automatically sets VPL (Voltage Peak Limiter) for optimum performance with any connected load
- Efficient Class-D amplifier with low distortion and minimal heat dissipation
- Compact form factor in a half-rack, 1 RU chassis with supplied bracket for discreet on-wall mounting
- Configurable GPIO port for remote control (e.g. wall panel) for channel switching, level control, and integration with paging systems
- Comprehensive circuit protection for fail-safe operation, including short circuit, thermal, and under-voltage protection
- Universal power supply supports 100 to 240 VAC at 50/60 Hz
- Intelligent fan control for silent operation at idle and at lower output levels
- Front-panel power and fault indication as well as per-channel signal LED and attenuation knob
- Balanced, high-quality analog inputs and amplifier outputs on detachable screw terminals
- Parallel analog input on unbalanced RCA connectors with optimized gain for mobile and other unbalanced sources
- Rackmount kit, pole-mount kit, and wall panel kits available as accessories
Tech Specs
Number of Channels: |
2 |
Amplifier Power Rating: |
2x 30 W Peak per Channel |
Amplifier Class: |
Class-D |
Load Impedance / Voltage: |
2 / 4 / 8 / 16 Ohms per Channel |
Rackmount Size: |
1 U (1/2-Rack) |
