LAB GRUPPEN LAB-CPA2402 8-Input Commercial Mixer Amplifier with Bluetooth and USB Media Player

Description
Tech Specs
Delivery & Returns

Description

Add ambiance to your store or restaurant with the Lab.Gruppen CPA2402, a commercial mixer amplifier that's the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. The 8-input mixer features independent volume controls on the front panel as well as individual front-panel master volume and bass/treble controls for each output. The high-quality media player features an LCD display and allows you to switch between the USB (thumb drive) input or Bluetooth for streaming your favorite music wirelessly from your smart device.

The CPA2402 features two 240W channels that are capable of delivering high-quality sound over both Low-Z (4/8 ohms) and High-Z (70/100V) loudspeaker configurations, offering extreme flexibility on every channel. CPA2402 is easy to install and operate, even for non-technical personnel. It is ideally suited for bars, restaurants, retail destinations, hotels, corporate, education, or other venues needing background music as well as public address systems.

Features

2 x 240W mixer amplifier for commercial and industrial applications
Low-Z (4/8 ohms) and High-Z (70/100V) operation per output with switchable high-pass filter
6 mic/line inputs plus 2 line inputs each with individual volume controls and output routing
High-quality media playback via Bluetooth streaming
USB media player with intuitive LCD navigation to play audio files via USB stick
Individual front-panel master volume and bass/treble controls for each output
Configurable priority and chime muting function for background music override
Direct drive, constant power technology for superior audio performance and reliability
GPI remote volume control using standard RJ45 connector and Ethernet cable
Auto Ramp circuitry for quiet and fast power up/down enables real-world energy savings
Front-panel power control button for direct access
Aux outputs for expansion to additional amplifiers
Rack-mountable 1 RU, 19" enclosure with brackets for rack mounting
Euroblock type mic/line input and output connectors
Convection-cooled, fan-less amplifier technology for low noise

Easy to Hook Up

The days of tape decks and CD players are long gone. Now your music lives on your smartphone or computer tablet, so you can stop searching for those outdated cables and fancy adapters. Now with a simple wave of your hand, you can stream music from any Bluetooth-equipped device such as your smartphone, tablet, laptop, etc. The CPA2402 also provides a USB media player with an intuitive LCD navigation to play audio files via USB stick. For connecting a balanced source such as a mixer or audio processor, a standard 3-pin Euroblock Input socket is provided. Alternatively, RCA cables can be connected for unbalanced stereo sources (summed to mono), such as players, phones, or computers; however, only one input source should be used at a time. Loudspeaker Output is provided in the form of a standard 2-pin Euroblock socket.

Easy to Install

The CPA2402 comes equipped with rubber feet, enabling the amps to be placed on a desk, shelf, or any clear surface without any additional installation requirements. However, optional rack mounting hardware is also supplied, allowing one or several models to be housed and protected inside an enclosure. This adds extensive flexibility as a single product can be housed in a half 19" rack or full rack enclosure as well as a pair of amplifiers can easily be mounted side-by-side in a single rack space. With the included brackets the unit can also be mounted to a wall or under a table/shelf.

Automatic Power On/Off

The CPA2402 has a flexible power scheme with seamless and automatic power on/off based on the input signal, which reduces consumption when a signal is not present. With virtually zero configuration required, an energy smart and hassle-free amplifier system can easily be set up for hands-off operation. If the CPA2402 is powered on but does not receive an input signal for 20 minutes, the system automatically enters sleep mode to reduce power consumption. As soon as the Auto Ramp circuit detects a signal, the system powers on and normal operation resumes. The amplifier can also be instantly forced into standby mode or awakened via the front-panel power button.

Simple Controls

CPA2402's controls are intuitive, allowing the operator to quickly adjust. The front-panel power button and Master volume knob are easily accessible, enabling virtually anyone to operate the system. Bass and Treble controls are also available for fine tuning, but require a tool when making changes.

Output Configuration

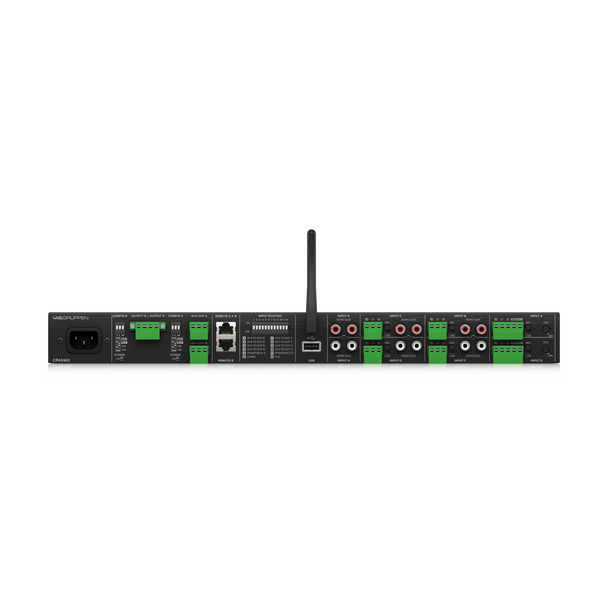

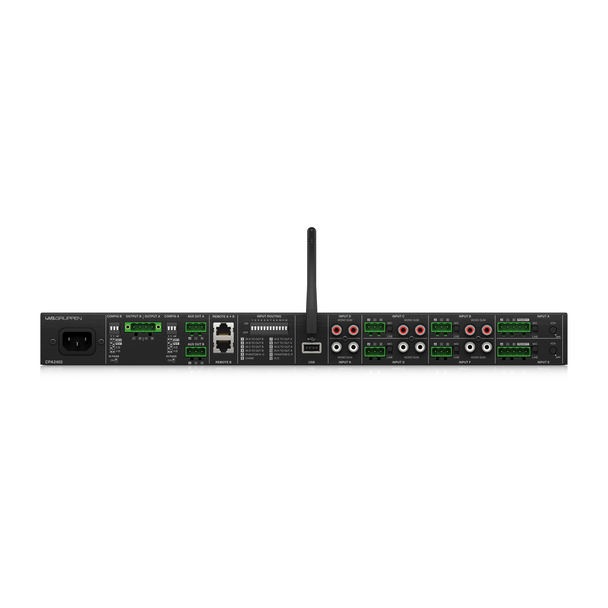

Intuitive configuration of the flexible outputs is provided directly adjacent to the rear panel Euroblock output connectors with dip switches, which allow selection of 100V, 70V, 8 ohms, or 4 ohms operation individually per channel. This configures both the maximum voltage of the output and the gain through the device. An individual control engages the built-in high-pass filter, which should be used on all constant voltage systems to avoid saturation on transformer-enabled loudspeakers and to help maintain sound integrity.

Expandable Remote Control

The RJ45 receptacle on the rear panel opens up a broad range of remote control options, including the CRC-V Series of wall controllers and a stylish tabletop controller, the LAB.LEVEL. All can be interconnected via inexpensive and readily available Ethernet cabling.

System Scalability

Commercial installs vary widely in scope and often grow and change over time. The CPA2402 is part of a family of products that provides both single and dual zone products that are perfect for building out a system to any size. With its individual zone volume and remote control capabilities, the CPA2402 is an ideal building block for a dynamic and scalable system solution.

Real-World Energy Savings

The CPA2402 2 x 120W Commercial Amplifier makes it easy to bring the highest-quality music and announcements to business and industrial environments in an easy to integrate, and even easier to operate system. Plus, with features such as its Auto Ramp and revolutionary direct drive constant power technology, the energy-efficient CPA2402 can generate enough energy savings to pay for itself in virtually no time at all.

Tech Specs

Number of Channels:	8 Input / 2 Output
Amplifier Power Rating:	4 Ohms / 8 Ohms / 70 V / 100 V: 2x 240 W Peak
Load Impedance / Voltage:	Mono/Stereo: 4 / 8 Ohms per Channel (Minimum) Mono/Stereo: 100 V per Channel (42 Ohms)
Audio I/O:	2x Block 5-Pin Balanced Line/Mic Input 4x Block 3-Pin Balanced Line/Mic Input 6x Stereo RCA TS Unbalanced Line Input 2x Block 3-Pin Balanced Aux Output
Digital Audio I/O:	No
Network I/O:	2x RJ45 Ethernet
USB I/O:	1x USB-A (Audio)
Rackmount Size:	1 U (with Included Hardware)
