Description
System installers in search of a flexible mixer/amplifier with Hi-Z and Lo-Z capabilities should check out the Lab.Gruppen CMA1201, a 4-input single-output 120W amplifier that provides the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense.

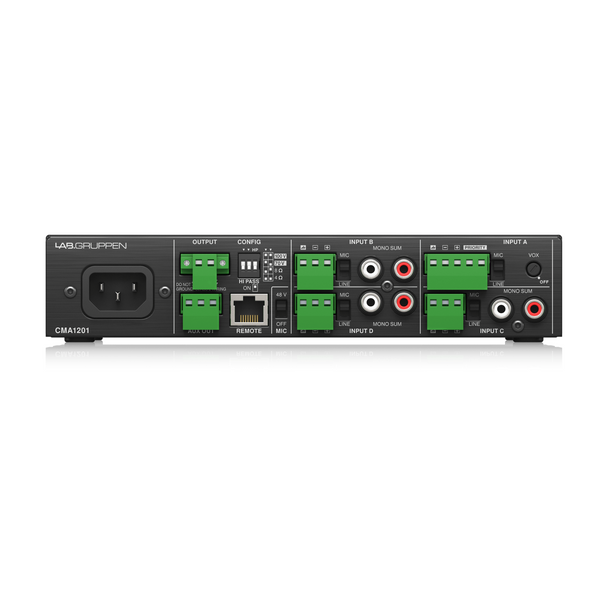

Each input offers balanced Mic/Line Euroblock connectors and channels B, C, and D offer unbalanced RCA connectors. Mic 1 features a configurable priority muting function for background music override. The CMA1201 is easy to install and provides a lot of hands-on control thanks to the four volume control knobs and master fader control. The CMA1201 includes a power cord, a set of Euroblock connectors, and mounting hardware for installing into a 19" rack, wall, or desktop.
Features
- 120W mixer/amplifier for commercial and industrial applications
- Low-Z (4/8 ohms) and High-Z (70/100 V) operation with switchable high-pass filter
- 4 mic/line inputs with individual volume controls
- Energy efficient design conserves energy and reduces

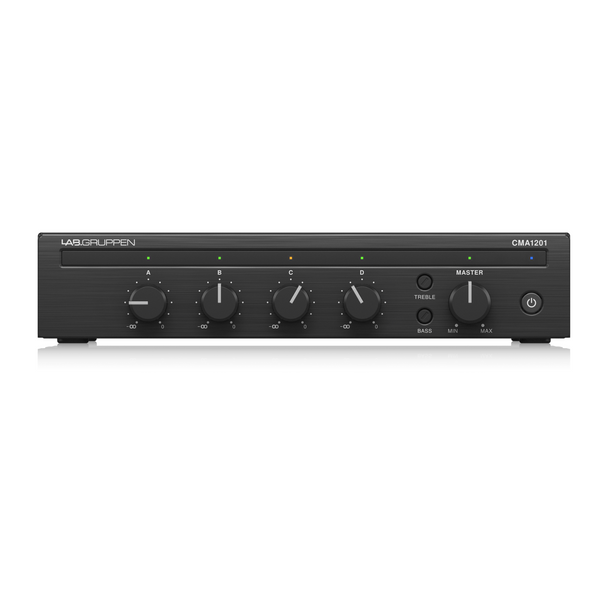

- Individual front-panel master volume and bass/treble controls
- Configurable priority muting function for background music override
- Direct-drive constant-power technology for superior audio performance and reliability
- GPI remote volume control using standard RJ-45 connector and Ethernet cable
- Auto Ramp circuitry for quiet and fast power up/down enables real-world energy savings
- Front-panel power control button for direct access
- Aux output for expansion to additional amplifiers

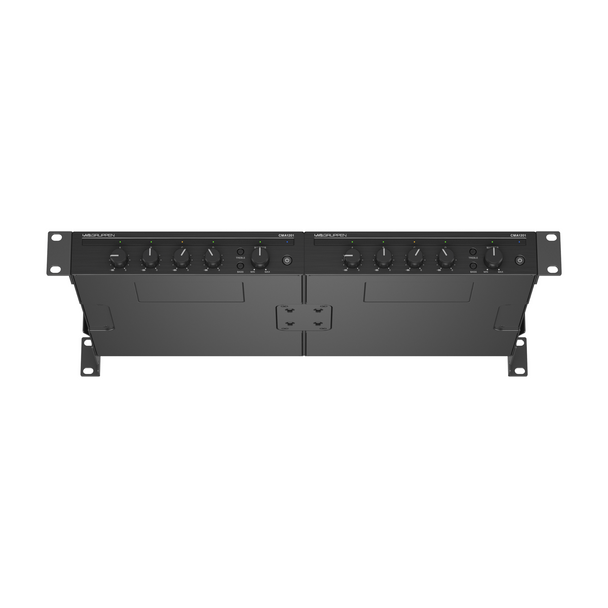

- Rack-mountable 1 RU half-rack-width enclosure with joining brackets for rack, table, and wall mounting
- Euroblock type mic/line input and output connectors
- Convection-cooled fanless amplifier technology for low noise
Tech Specs
Number of Channels: |
1 |
Amplifier Power Rating: |
4 Ohms / 8 Ohms / 70 V / 100 V: 120 W |
Load Impedance / Voltage: |
4 / 8 Ohms 70 V (41 Ohms) 100 V (82 Ohms) |
Analog Audio I/O: |
3x Block 3-Pin Balanced Line/Mic Input 1x Block 5-Pin Balanced Line/Mic Input 1x Block 2-Pin Speaker Output 1x Block 3-Pin Balanced Aux Output |
Digital I/O: |
No |
Network I/O: |
1x RJ45 Ethernet |
Rackmount Size: |
1 U (1/2-Rack) |
