Description
System installers in search of a quality commercial mixer with plenty of hands-on control will appreciate the Lab.Gruppen CM82, an 8-input, 2-output commercial mixer well suited for distributed audio in bars, restaurants, retail destinations, hotels, corporate, education, or other venues needing background music and/or a public-address system. The mixer offers a configurable priority muting function for background music override, great for making announcements.

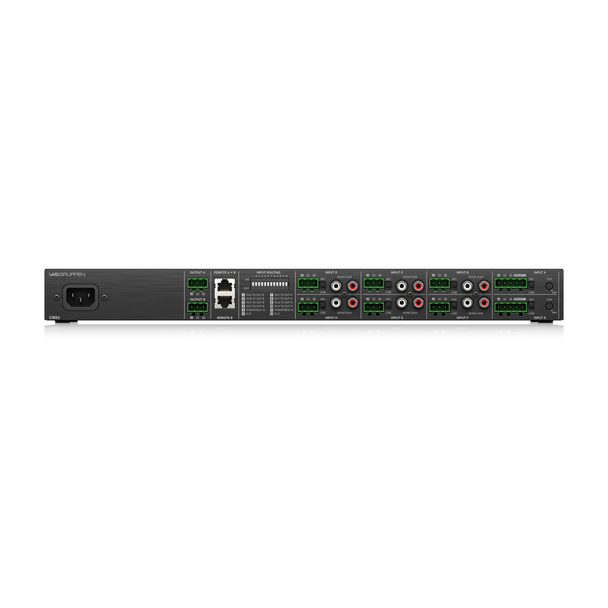

The rear panel offers eight mic/line input channels that sum to mono. Channel A and B feature 5-pin Euroblock inputs with the priority function, while channels C-H offer balanced 3-pin Euroblock connectors and a pair of unbalanced RCA connectors (summed to mono) for connecting stereo sources such as players, phones, computers, and more. The RJ45 ports allow the mixer to be controlled via Ethernet from a broad range of remote-control options.

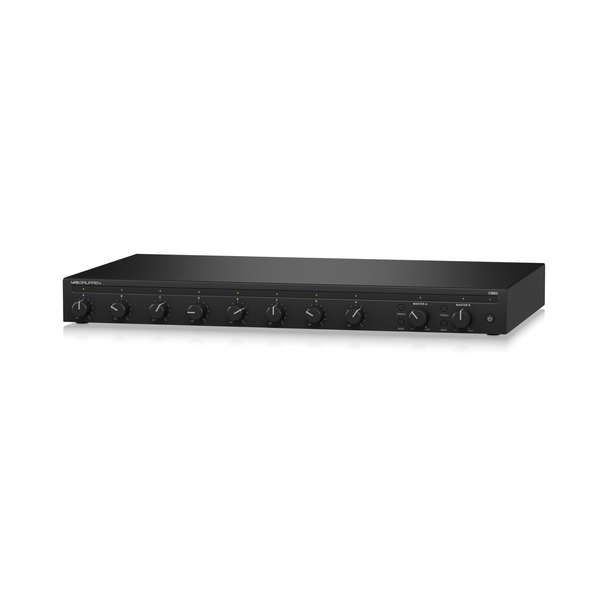

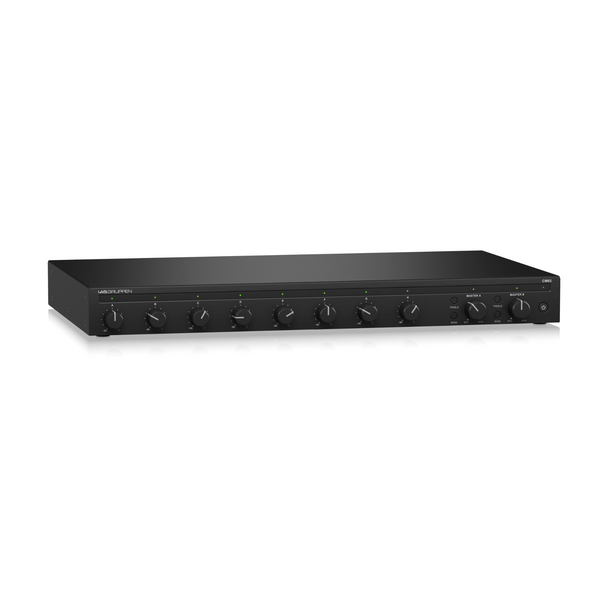

The front panel sports a power button, volume controls for each channel, and two master volume controls. Additionally, bass and treble controls are provided that allow you to dial in your best sound. The brushed, anodized aluminum enclosure is painted black with a steel bottom and can be used on a desktop or shelf thanks to the included four rubber feet and rackmount kit.
Features
- 8-input / 2-output mixer for commercial and industrial applications
- 8 mic/line inputs with individual volume controls and output routing
- Individual front-panel master volume and bass/treble controls for each output
- Configurable priority muting function for background music override
- GPI remote volume control using standard RJ45 connector and Ethernet cable
- Front-panel power control button for direct access
- Aux output for expansion to connect with amplifiers
- Rack-mountable 1 RU, 19" enclosure with brackets for rack mounting
- Euroblock type mic/line input and output connectors
Tech Specs
Compatibility: |
Not Specified by Manufacturer |
Audio Inputs: |
Impedance: 20 Kilohms (Balanced Mic/Line) 10 Kilohms (Unbalanced Line and RCA) Maximum Input Level: 4.88 V (+16 dBu) Microphone Phantom Power: 48 V |
Audio Outputs: |
Gain Range: (∞ +10 dB) Output Max Level: 9.6 V (+22 dBu) |
Performance: |
Distortion: <0.05% Frequency Response: 20 Hz to 20 kHz, +0.5 / -1 dB Crosstalk: >70 dB Signal-to-Noise: >97 dBA |
Audio I/O: |
2x Block 5-Pin Line/Mic Input (With Priority) 6x Block 3-Pin Line/Mic Input 6x 2RCA TS Line Input 2x Block 3-Pin Line Output |
Power Source: |
AC Input |
AC Input Power: |
100 to 240 VAC, 50 / 60 Hz |
Dimensions: |
17.2 x 9.8 x 1.7" |
Weight: |
5.3 lb |
