LAB GRUPPEN IPX 1200 Compact 1200W 2-Channel DSP Controlled Power Amplifier

Description
Tech Specs
Delivery & Returns

Description

Designed for permanent installations, portable corporate AV systems, or live PA setups, the Lab.Gruppen IPX 1200 is a 1 RU, two-channel 1200W amplifier with high power density and power consumption efficiency. The IPX 1200 is equipped with an innovative DSP engine with up to 40 real-time, multi-slope parametric EQs, adjustable gain, input and output delay, and both high- and low-pass filters adjustable to any frequency.

The DSP also provides extensive protection for your loudspeaker system by way of the innovative software-controlled Speaker Protect Limiter. Configuration is a breeze, thanks to the IPX Controller software, which is available Windows, Mac, and iPad. The IPX 1200 ships with a power cord and rear-support brackets.

Features

Compact 1200W, 2-channel amplifier with DSP control for touring applications
Low mains current draw with proven IDEEA technology for power conservation
Highly advanced DSP with 40 real-time, multi-slope Parametric EQ's
100 user presets for system configuration and setup
Networked control via touchscreen user interface
AES3 and analogue inputs with redundant failover
Renowned Speaker Protect Limiter (maxSPL) for optimal speaker match and protection
4-channel input mixer for multi-input mixing and switching
Backlit display with navigation buttons and encoder for front-panel setup
Horizontal output VU meters on display in operating mode
Binding post and Neutrik speakON connectors
Universal power supply supports 100 to 240V at 50 or 60 Hz
Fast network setup with auto-discovery and identification of amplifiers

Take Control

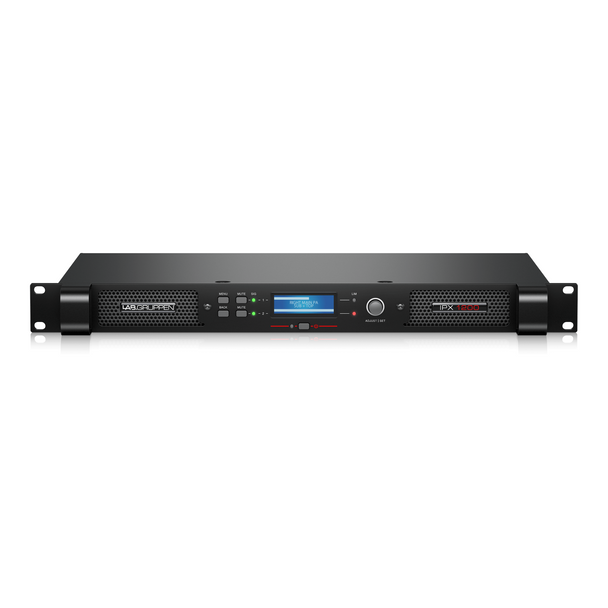

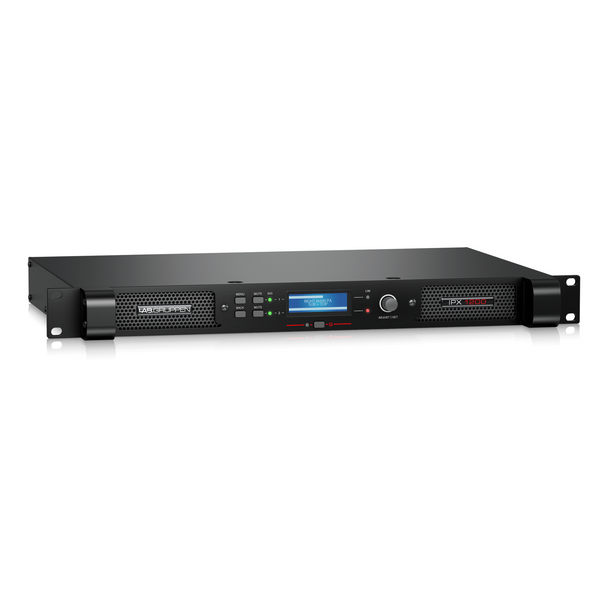

You can access all setup parameters for input mixing, DSP features, and limiter settings on the front panel, using two navigation buttons, a rotary encoder and the backlit display. Individual channel mute buttons are also available, and up to 100 user-defined presets may be stored onboard.

Fast and Foolproof Networking

Most likely, you also want to take advantage of the advanced, Ethernet-based networked monitoring and control features. Network configuration is fast and foolproof due to automatic discovery and identification of all connected amplifiers. The sleek GUI is designed for touch-based devices and enables quick grouping of amplifiers along with intuitive setup and preset storage of all DSP parameters.

Flexible I/O and Conversion Features

With AES3 digital inputs standard, the IPX 1200 connects directly to digital console stage boxes or accepts AES input along with onboard sample rate conversion between all commonly used sample frequencies within the digital domain, eliminating a D-A/A-D conversion cycle. Additionally, AES3 inputs can be set for automatic failover to analog (perfect redundancy solution for keeping the show going, or in case of installations, maintaining system integrity for mission-critical PA/VA system applications). Further, input mixing is available for all four inputs, and at the power output end, connections are available on binding posts or Neutrik speakON.

IPX Controller

At the heart of IPX Series is the intuitive and fast GUI of the IPX Controller software, giving you powerful hands-on control over just about every aspect of DSP performance for each device on the network. The IPX Controller is available for PC, Mac and iPad, and it was designed from the ground up with touchscreen operation in mind. Quite simply, the IPX Controller gives you an edge when it comes to tuning your system for perfection.

Turbocharged DSP Power

The IPX Series boasts a state-of-the-art DSP engine equipped with up to 40 real-time, multi-slope parametric EQs along with adjustable gain and input and output delay as well as both high- and low-pass filters adjustable to any frequency. This makes the IPX Series akin to a standalone digital audio processor, with the added bonus of 2 powerful and pristine amplifier channels on the side.

Pro Performance at Prosumer Price Points

With extensive functionality and professional features being married with competitive cost, the IPX Series amplifiers are equally (and perfectly) suited for permanent installations, portable AV systems, or for driving live monitors. In short, wherever performance and reliability cannot be compromised, yet your budget is tight, the IPX Series is a universal solution that sits smack in the middle of the performance/price sweet spot.

Tech Specs

Number of Channels:	2
Amplifier Power Rating:	2 Ohms: 500 W Peak Both Channels Driven 4 Ohms: 600 W Peak Both Channels Driven 8 Ohms: 300 W Peak Both Channels Driven
Amplifier Class:	Class-D
DSP:	Yes

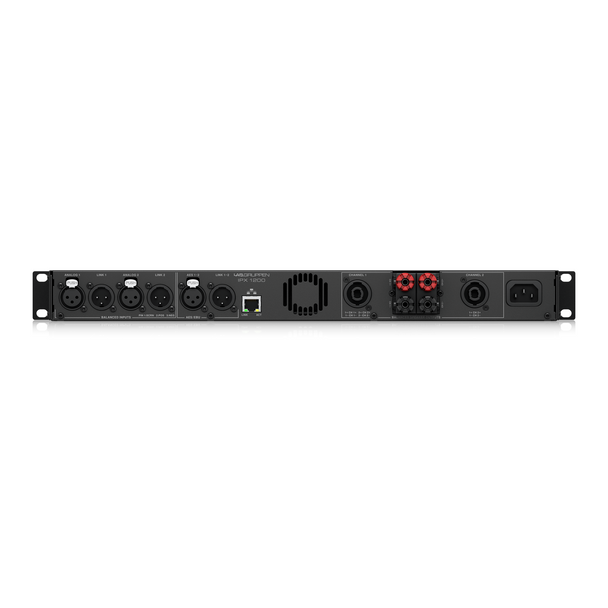

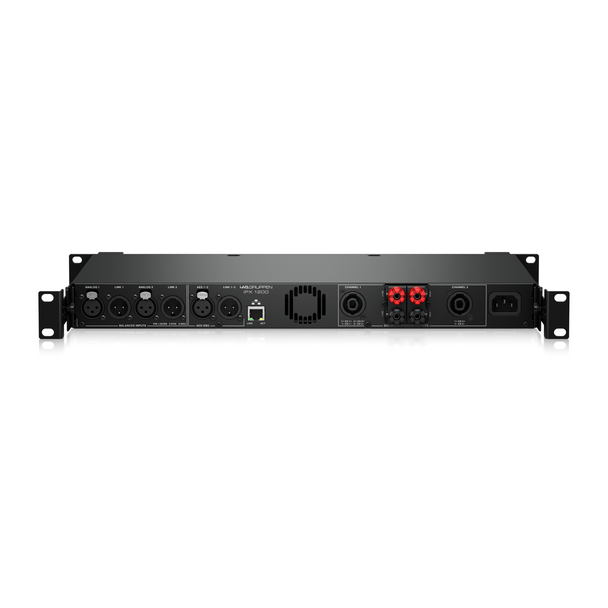

Analog Audio I/O:	2x XLR 3-Pin Female Balanced Line Input 2x XLR 3-Pin Male Balanced Line Thru 2x speakON NL4 Speaker Output 2x Binding Post Pair 1-Pin Speaker
Digital I/O:	2x XLR AES3 Input/Output
Network I/O:	1x RJ45 Ethernet
Rackmount Size:	1 U
