LAB GRUPPEN FP 7000 SP 7000W 2-Channel Amplifier with NomadLink Networking (speakON)

$3,299.00
LAB GRUPPEN FP 7000 SP 7000W 2-Channel Amplifier with NomadLink Networking (speakON)
LAB GRUPPEN FP 7000 SP 7000W 2-Channel Amplifier with NomadLink Networking (speakON)
LAB GRUPPEN FP 7000 SP 7000W 2-Channel Amplifier with NomadLink Networking (speakON)
LAB GRUPPEN FP 7000 SP 7000W 2-Channel Amplifier with NomadLink Networking (speakON)
LAB GRUPPEN FP 7000 SP 7000W 2-Channel Amplifier with NomadLink Networking (speakON)
SKU:
LAB-FP7000/SP
UPC:
4033653091725
Width:
19.00 (in)
Height:
3.50 (in)
Depth:
15.60 (in)
Shipping:
Free Shipping
Current Stock:

Description

Provide tight and transparent sound with the Lab.Gruppen FP 7000 SP, a 2 RU, two-channel 7000W amplifier that can drive professional-grade sound systems of any size. The FP 7000 provides two channels of extremely powerful amplification using Lab-Gruppen's patented Class-TD output stage, which combines the sonic purity of Class-B with the efficiency of Class-D. To maximize headroom in any application, the FP 7000 offers adjustable input gain along with Lab.Gruppen's exclusive Voltage Peak Limiter (VPL). Adjustable on a per-channel basis, VPL optimizes the output for any load, from a single massive subwoofer to a series of HF compression drivers.

Features

  • 7000W, 2-channel amplifier with up to 3500W output per channel and NomadLink network for monitoring and control
  • Selectable gain plus scalable Voltage Peak Limiter (VPL) and bridge-mode operation allow custom configuration for any application
  • Proven and reliable Class-TD output stage delivers Class A/B audio quality with Class-D efficiency
  • Regulated Switch Mode Power Supply (R.SMPS) ensures constant power output at all times
  • Intuitive DeviceControl software monitors and controls key functions via the NomadLink network
  • Comprehensive protection scheme including current, voltage, DC, temperature, short circuit, and open load warnings
  • Efficient Intercooler copper cooling system dissipates more heat for extended peak output
  • Two balanced analog audio inputs and two link outputs on Neutrik XLR connectors
  • 2 NL4 Neutrik speakON output connectors
  • Removable dust filter grilles for increased air circulation
  • Rugged 2 RU rackmount chassis for durability in touring applications

Network Control

  • The FP 7000 is shipped with a NomadLink network interface as standard. In conjunction with DeviceControl software, NomadLink allows monitoring of all key amplifier parameters and remote control of power on/off, channel mutes, and channel solo functions.
  • NB. NomadLink requires the separate NLB 60E NomadLink Bridge & Network Controller

Proven Ergonomics

  • View all key performance parameters at a glance—in real time—on the comprehensive front-panel display.
  • The FP+ provides the most complete and useful front-panel indication on the market today.
  • Bright, color-coded LEDs give clear status indication of all control activation, warnings and faults—without scrolling through menus.
  • Conditions such as blown drivers, shorted lines, and over-temperature channels are easily recognizable.

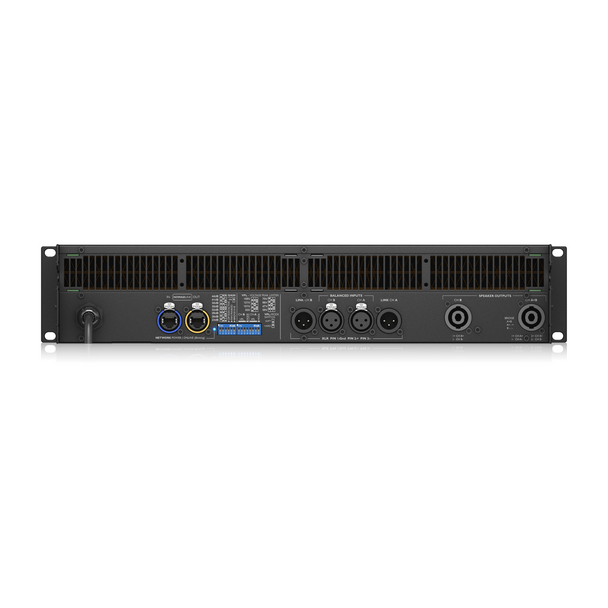

Around the Back

The FP+ rear panel provides all the input and output connections you'll need plus RJ45 in and out for NomadLink control and monitoring. With the DIP-switch matrix, you can assign a hard or soft attack to the limiter functions, set overall gain to one of seven different levels, bridge any pair of channels, and set the VPL for optimum output characteristics with the connected load. All in a matter of seconds while the amp is in the rack.
Under the Hood
  • To achieve the extreme power-to-size ratio in the FP+ Series, LAB GRUPPEN engineers refined and upgraded two proprietary technologies: the regulated switch-mode power supply (R.SMPS) and the patented Class TD output stage. Both are incorporated in all four FP+ Series amplifiers. Working together, this new generation of proprietary circuits produces more power from a smaller package, while at the same time, maintaining LAB GRUPPEN’s peerless reputation for sonic excellence.
  • To ensure efficient, uniform cooling, the ultra-efficient Intercooler uses thousands of tiny cooper cooling fins to increase exposure of the heat sink to the cooling air flow. Twin variable-speed fans respond to temperature sensors, forcing air over the Intercooler fins in a front-to-rear flow. All output devices are mounted transverse to the airflow, so the cooling effect is uniform. There are no “end-of-tunnel” output transistors subject to greater warming and, consequently, possible premature failure.

Tech Specs

Number of Channels:
2
Amplifier Class:
Class-TD
Analog Audio I/O:
2x XLR 3-Pin Female Balanced Input
2x XLR 3-Pin Male Balanced Line Thru
2x speakON NL4 Speaker Output
Digital I/O:
No
Network I/O:
2x etherCON/RJ45 Ethernet
Rackmount Size:
2 U
