Juice Goose

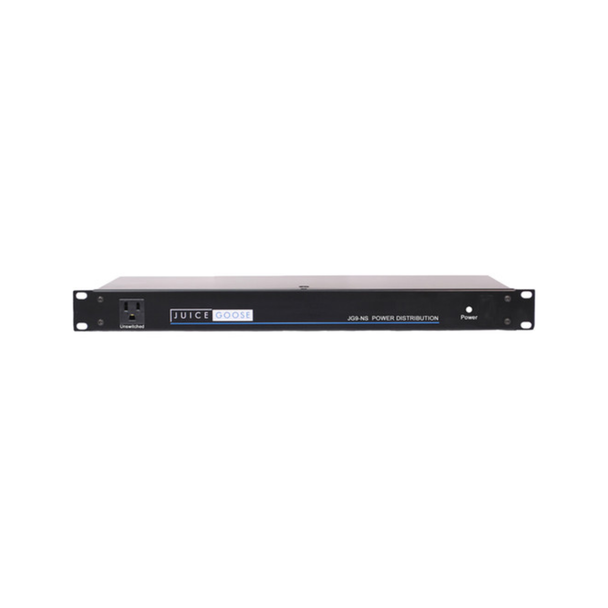

Juice Goose JG9NS Power Distribution Center for 19" Rack Systems

$103.99
Juice Goose JG9NS Power Distribution Center for 19" Rack Systems
Juice Goose JG9NS Power Distribution Center for 19" Rack Systems
SKU:
JG 9NS
UPC:
852560000750
Width:
9.00 (in)
Height:
2.30 (in)
Depth:
21.20 (in)
Shipping:
Free Shipping
Current Stock:

Description

The JG9NS Power Distribution Center from Juice Goose is intended for use in 19-inch rackmount environments. To prevent users from accidentally turning the unit off, the JG9NS has no power switch. Instead, it features a front-panel LED to indicate whether power is being supplied. The unit features 9 NEMA 5-15R outlets: 8 on the back, 1 on the front. The front outlet is unswitched. The back outlets are rotated 90 degrees to better accommodate wall wart power supplies. The outlets draw power via the unit's 15-foot NEMA 5-15P power cord. To protect your installation from electrical damage, the JG 9 features a back-mounted circuit breaker, line conditioning, and spike protection.

Connectivity

The JG 9 provides 9 AC receptacles, including one unswitched outlet on the front the unit. The eight receptacles on the back are rotated to better accommodate wall wart power supplies. Each of the AC outlets is NEMA 5-15R, rated for 15 amps.

Capacity

The JG 9 has a 15A circuit breaker and a 12A maximum current rating.

Power Protection

The unit features AC power protection that includes a fast-acting metal oxide varistor, which guards against high-energy surges between the line and neutral power leads. This protection also includes filtration capacitance, which enhances the surge protection and adds a primary level of line-noise elimination.

Power Cord

The power cord is rated for 15A and features a NEMA 5-15P plug. It's 6' long.

Circuit Breaker

The JG 9 features a circuit breaker mounted on the back of the chassis and is rated for 15A.

Tech Specs

Outlets:
8x NEMA 5-15R (Rear Panel)
1x NEMA 5-15R (Front Panel)
Wall Plug Type:
NEMA 5-15P
AC Input Power:
120 VAC, 60 Hz
Output Current:
12 A (Maximum)
Sequencing Delay:
Yes
Protection Types & Modes:
Metal-Oxide Varistor (MOV)
Rackmount Size:
1 U
Cable Length:
Cable Length
Dimensions:
19 x 7 x 1.75"
