Description

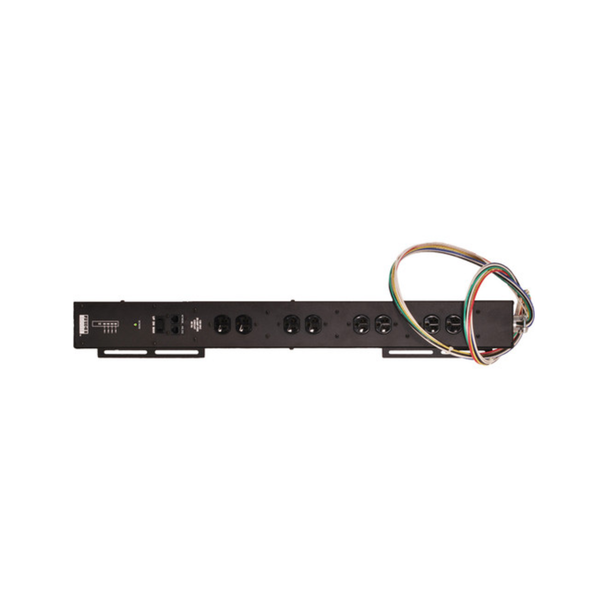

The Juice Goose iP PD1-4 provides web based control and monitoring for four separate twenty amp circuits (eighty amps total) in a single chassis. This microcontroller based power distribution device that can be accessed via internet or intranet communications using Ethernet based HTML, TCP or UDP communications. It also has RS232 connectivity.
With this remote access, four individual circuits can be turned on and off and monitored for electrical current (amperage).
Current draw can be monitored from 0.2 to 20.0 amps per power POD.
The iP PD1-4 can be controlled by the on board web server graphic interface that can be accessed by any web browser.
It can also be remote controlled by TCP, UDP or RS232 connection to commercial or proprietary control systems.
FEATURES
The iP PD1-4 is priced many hundreds of dollars below comparable Ethernet addressable power modules.
Yet, it features high quality design and construction as well as the most important features needed for web based remote control.
- Internet, intranet and RS232 remote control
- Local fail safe sequencing and manual override
- On-board web server for easy set up, control, sequencing and monitoring
- Front panel indicators for network connection and outlets on
- Amperage monitoring from 0.20 to 20.0 amps per power POD
- Administrator and User login options
- Automatic Power Cycle to reboot a network data router if network connection is lost
Using third party programs the iP PD1-4 can be scheduled to turn on and off at specific times.
Also, its outlets can be sequenced on and off if required for application in audio systems.
This remote control can also be used to reboot DSPs or other processor based electronics as well as to save energy costs by scheduling electronic equipment to turn off when not in use.
WEB SERVER
All iP Series products have an on board web server that provides graphic user interface for controlling and monitoring equipment connected to the iP Series unit.
This feature is available for remote use as soon as the IP address of the unit is entered in a web browser.
CRESTRON MODULE
Crestron released a completed module for control and true feedback of all iP Series products via TCP/IP.
TCP or UDP
It is possible to control and monitor iP PD1-4 over Ethernet using simple text commands and TCP or UDP protocol.
In this mode, any PC (Windows, Linux, Mac ) can connect to the iP unit a standard communications client program.
Once the connection is made, the console commands are available to the user as if the user was connected to the iP device over a local serial connection.
RS232 CONTROL
The RJ11 style connector on the iP PD1-4 chassis (labeled "RS232") can be used for remote control of this unit via RS232 protocol over distances of no more than 50 feet. Commands for this control are detailed in the user Manual in the section titled "RS232 Control and Monitoring".
