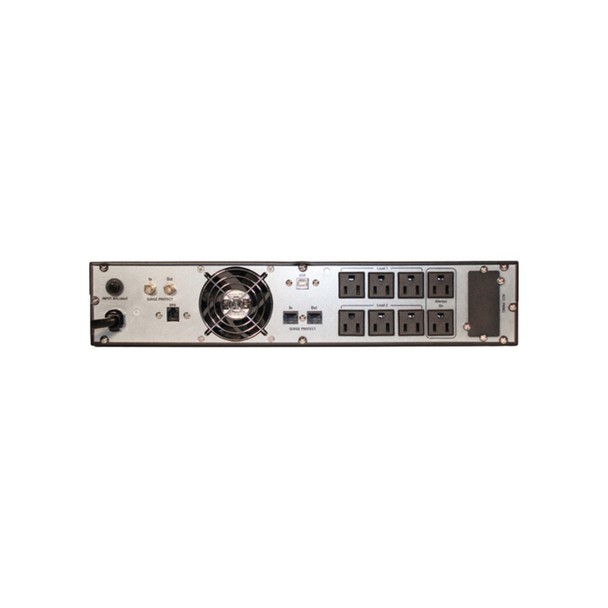

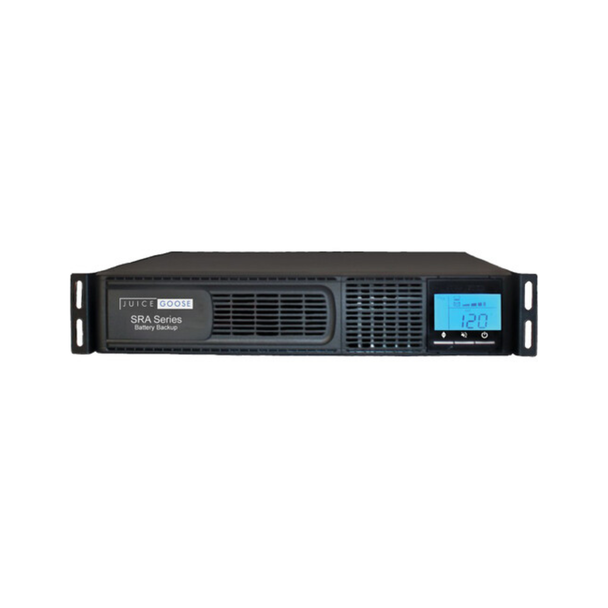

Juice Goose 1000VA / 700W SRA Series On-Line Simulated Sine Wave Rackmount UPS

Description
Tech Specs
Delivery & Returns

Description

Deliver clean power to connected devices and keep them protected in the event of a power failure with the 1000VA / 700W SRA Series On-Line Simulated Sine Wave Rackmount UPS from Juice Goose. Boasting a 700W power capacity or 1000VA apparent power rating, this uninterruptible power supply sports a NEMA 5-15P plug and eight NEMA 5-15R outlets. Compatible with 120 VAC inputs and providing 103 to 136 VAC output, the Juice Goose SRA UPS ensures efficient power via its on-line design and simulated sine wave topology. Under full load, this UPS supplies 4 minutes of power, or up to 14 minutes of power under half load.

An integrated LCD screen lets you view important system information, while the smartcard port allows for remote control via a compatible network card, available separately. Audible and visual alarms keep you alert to issues, while emergency power off and 960 joules of surge protection prevent overloading the UPS. Sealed batteries with hot-swap support allow for easy removal and replacement without turning the UPS off, while plug-and-play connectivity and a 2 RU form factor allow for hassle-free deployment to standard server racks, walls, or desktops.

Voltage Regulation

Voltage regulation provides support during low voltage sags. When utility power ranges between 90 and 150 VAC, voltage output stabilizes between 103 and 136 VAC.

Emergency Power Off (EPO)

Emergency Power Off (EPO) immediately removes power from UPS outlets in case of an emergency.

Easy Installation

Installation options for a variety of power continuity applications allow you to easily deploy this UPS in a server rack, as a tower, or attached to a wall.

Integrated LCD

Easy to view, the integrated LCD panel displays UPS and electric power status. Plus, the rotating design can orient the display to suit rack, tower, or wall installation.

Maintenance-Free Batteries

Maintenance-free batteries last 3 to 5 years under normal operations and conditions and can be replaced for improved longevity.

Automatic Voltage Regulation

Line Interactive circuitry monitors the incoming voltage level and routes current through the appropriate taps on a buck/boost transformer to raise or lower output voltage, improving the performance of powered equipment and extending the usable range of the utility power before switching to battery mode.

This regulation continues to operate when incoming voltage is between 90 and 150 VAC. Regulated output voltage will vary between 103 and 136 VAC. The product also provides 960 joules of AC line surge protection.

High Efficiency Protection

Simulated sine wave output yields efficient performance. To protect against power overload, the UPS will automatically shut down in one minute if the current load is 110% of the rated maximum and will shut off immediately if the load reaches 150% of rated capacity.

Monitoring

An easy-to-read, front panel LCD provides real-time indication of major system parameters and status, including load level, voltage and frequency, UPS status, battery charge level, estimated runtime, and internal and external faults.

Emergency Power Off

Use the EPO port to connect an alarm trigger which will turn off outlets in the event of an emergency.

Self Test

Both automatic and user-invoked processes test UPS and battery function to verify proper operation.

Applications

Voltage regulating UPSs are designed for a broad range of applications with sensitive electronic equipment, including broadcast and streaming, AV controllers, paging, security, data network, and transition to generator applications.

Tech Specs

Total Outlets:	8x NEMA 5-15R
Plug Type:	NEMA 5-15P
Surge Protection:	Yes: 960 Joules
Maximum Wattage:	700 W
Full-Load Runtime:	4 Minutes
