Description

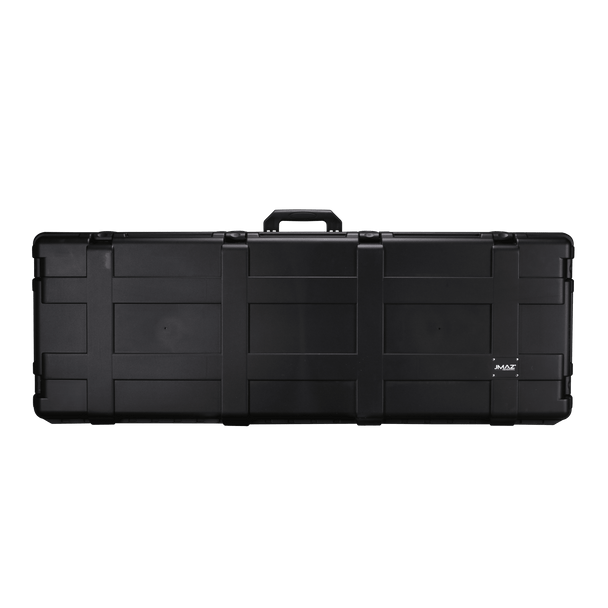

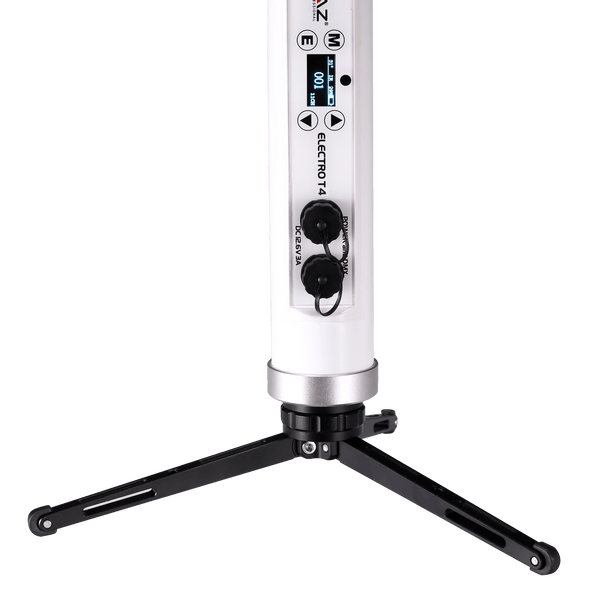

The JMAZ Professional Electro 4PK T4 Kit delivers a powerful and portable lighting solution with four Electro T4 RGBW LED battery-powered tubes housed in a rugged injection-molded case. Each tube features a 90W output with 288 RGBW SMD LEDs, delivering vivid color washes and smooth 180° coverage. With 32-pixel control zones, 35 preset color programs, 68 built-in auto/fade effects, and 4 advanced sound-active modes (each with 15 color variations), this kit offers massive creative potential. The adjustable CTO range (2800K-10000K) provides warm to cool whites with precision. Operating up to 15 hours on a single charge—or up to 30 hours in battery saver mode—the Electro T4 is ready for all-day outdoor events thanks to its IP65 weatherproof rating. The kit supports DMX512, Wireless DMX, WiFi, and IR remote protocols, and includes 7 personality modes (2-128 channels). Accessories include a tripod stand, eyebolts, tube extender T-screw, DMX cables, AC charger, IR remote, spare connection caps, QSG, and manual. The case holds up to 6 tubes for future expansion. CE, FCC, and RoHS certified.
Features

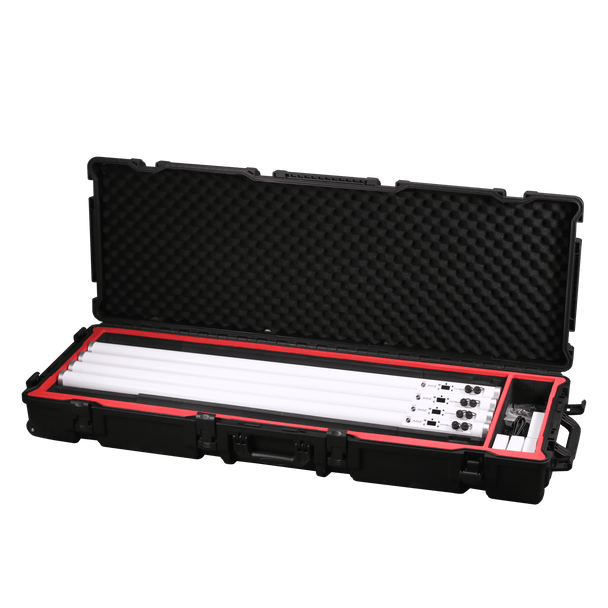

- Complete four-fixture package includes four Electro T4 battery-powered RGBW LED tubes and a rugged injection-molded road case for easy transport, storage, and deployment.

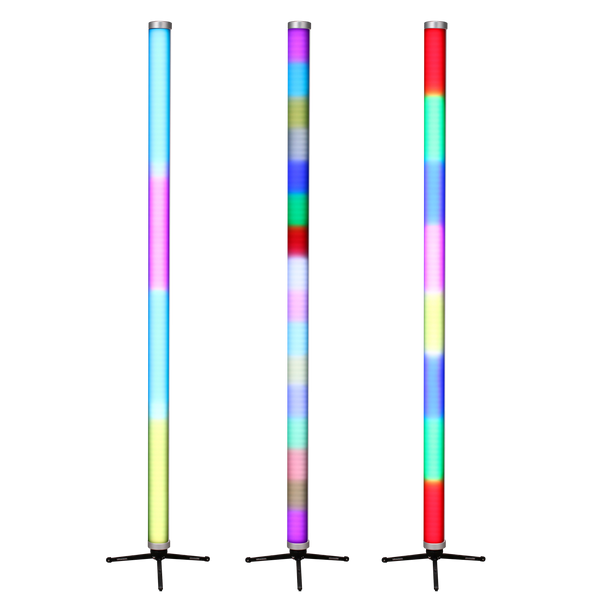

- Each tube features 288 RGBW LEDs with 32-pixel control and a wide 180° beam angle, enabling dynamic pixel-mapped effects, vibrant color washes, and immersive visual designs.
- Integrated lithium-ion batteries provide up to 15 hours of runtime per charge, or up to 30 hours in battery saver mode, making the kit ideal for cable-free indoor and outdoor productions.
- IP65-rated construction and fanless operation ensure reliable performance in demanding environments while maintaining completely silent operation for live events, broadcast, and installations.
- Advanced RGBW color mixing with adjustable CTO from 2800K-10000K delivers rich saturated colors, smooth pastel tones, and precise white light reproduction.

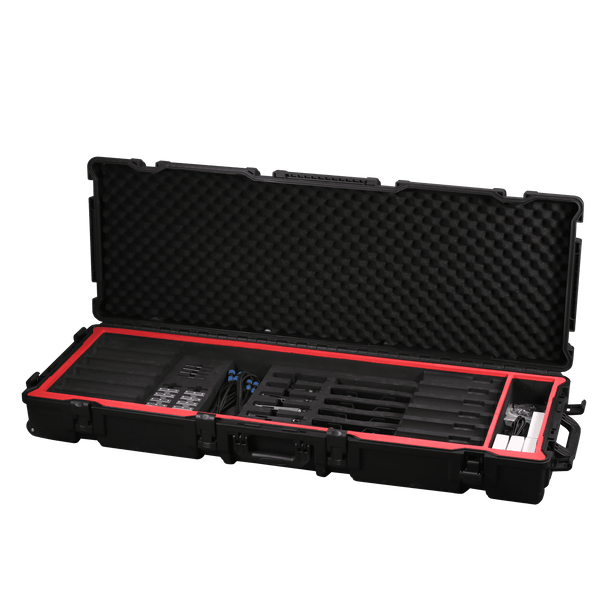

- Expandable road case accommodates up to six Electro T4 fixtures and includes tripod stands, truss-mount accessories, chargers, DMX cables, and IR remotes for a complete production-ready solution.
Why We Like This
The Jmaz Lighting JP2003 Electro T4 4Pack RGBW Battery-Powered Outdoor LED Pixel Tube Kit is source-built for professional production environments, giving users a dependable led pixel tube option with product details, compatibility, and physical specifications carried over from the setup sheet.
FAQs
Q: What is the Jmaz Lighting JP2003 Electro T4 4Pack RGBW Battery-Powered Outdoor LED Pixel Tube Kit?
A: It is a Jmaz Lighting led pixel tube.
Q: What source features are included for the JP2003?
A: The Features section uses the product's source Feature 1 through Feature 10 fields where available.
Q: Where are the specifications for the JP2003?
A: The specs section includes the available full specifications, dimensions, weight, packaging, UPC, warranty, and source-linked product data.
Q: Are image links included for the JP2003?
A: Yes, when available in the Excel file, the Hero Image is listed first and the All Images Dropbox link follows it.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Box Content: |
1 x Injection Molded Case; 4 x Tripod Stand; 4 x Eyebolts; 8 x Metal Tube Holders; 4 x Wing Plate for Truss Mounts; 8 x 5-Pin DMX Cables (Male and Female); 5 x 5-Pin Chargers; 4 x IR Remotes; 1 x QSG; 1 x Manual |
Brand: |
Jmaz Lighting |
CE, FCC, RoHS - Maximum Temperature: |
60 ° C ( 140 ° F) |
CE, FCC, RoHS - Minimum Temperature: |
- 10 ° C ( 14 ° F) |
Color System: |
RGBW Color Mixing 8/16 Bit |
Color System - CTO: |
2800K to 10000K |
Control: |
64CH -16 Pixels; 128CH -32 Pixels |
Control - Personalities (7 Modes): |
2CH; 4CH; 6CH; 11CH; 32CH -8 Pixels; |
Control - Protocol: |
DMX512, Wireless DMX, Wi-Fi, IR Remote |
Country of Origin: |
China |
Designed and Engineered: |
California |
Dynamic Effect: |
Individual Dynamic Chase, Fade, Static and Sound Active Modes; Max 15 Hour Batery Life / 30 Hour In Battery Saving Mode; 35 Preset Color Programs; 4 Advanced Sound Active Mode with 15 Color Options; 68 Auto / Fade Built-In Programs |
Dynamic Effect - Charging Time: |
5 Hours |
Dynamic Effect - Selectable Battery Saving Mode: |
25%, 50%, 75%, 100% |
Electrical - Battery Capacity: |
21,700mAH, 273.4 Wh/hour |
Electrical - Battery Voltage: |
12.6V / 18Ah |
Electrical - Charger: |
12.6V, 2A |
Electrical - Input Voltage: |
100 - 240V AC, 50/60Hz |
Electrical - PWM: |
1.5KHz |
Electrical - Power Consumption: |
50W |
Electrical - Rechargeable Battery Type: |
Lithium Ion ***UL Listed*** |
Electronics - Control Pixel: |
32 Pixels |
Electronics - Linear Dimmer: |
0 - 100% |
Electronics - Refresh Rate: |
20KHz |
Electronics - Strobe Shutter: |
1-20Hz Variable |
Fading / Jumping Macros Light Change and Jump - Shutter/Strobe: |
Electronic |
Fading / Jumping Macros Light Change and Jump - Strobe Rate: |
0-25Hz |
Full Product Specifications: |
Technical specifications Light Source • 288 x 0.3W RGBW LEDs • LED Life Expectancy: 50,000 Hours Color System • RGBW Color Mixing 8/16 Bit • CTO: 2800K to 10000K Optics • Beam Angle: 180° Dynamic Effect • Individual Dynamic Chase, Fade, Static and So |
Item Height: |
8.1 in |
Item Length: |
57 in |
Item Weight: |
57.2 lbs |
Item Width: |
20.3 in |
Light Source: |
288 x 0.3W RGBW LEDs |
Light Source - LED Life Expectancy: |
50,000 Hours |
Manufacturer: |
JMAZ Group |
Master Pack Cartons: |
1 |
Master Pack Height: |
9.1 in |
Master Pack Length: |
58 in |
Master Pack Quantity: |
1 |
Master Pack Weight: |
58.2 lbs |
Master Pack Width: |
21.3 in |
Model: |
JP2003 |
Optics - Beam Angle: |
180° |
Physical - Cooling: |
Fanless |
Physical - IP Rating: |
65 |
Product Data Sheet: |
https://www.dropbox.com/scl/fi/lmtpi8ax1kaj77g5gaxoh/JMAZ-PROFESSIONAL-JP2001-ELECTRO-T4-Product-Data-Sheet.pdf?rlkey=1qjznrge6qbhse924p81pouf7&st=nl9nsesx&dl=0 |
Product Name: |
Electro T4 4Pack |
Product Type: |
LED Pixel Tube |
Prop 65 Compliant: |
Yes |
SKU: |
JP2003 |
Shipping Cartons: |
1 |
Shipping Height: |
9.1 in |
Shipping Length: |
58 in |
Shipping Width: |
21.3 in |
UPC: |
618528598765 |
Video URL: |
https://youtu.be/fH0cNUfZZX4?si=SI3GvCUrSQRCg-FO |
Website URL: |
https://jmazprofessional.com/Products/electro-t4-4pk/ |
