Description

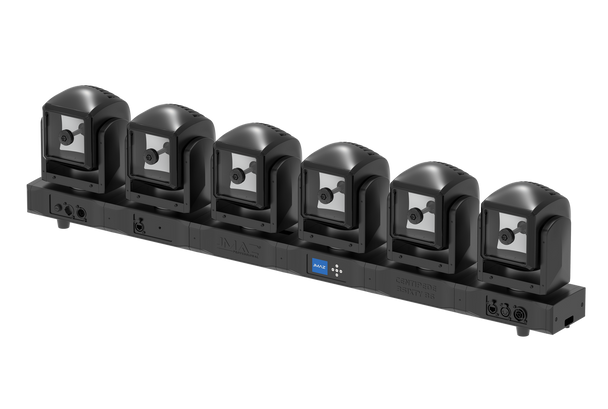

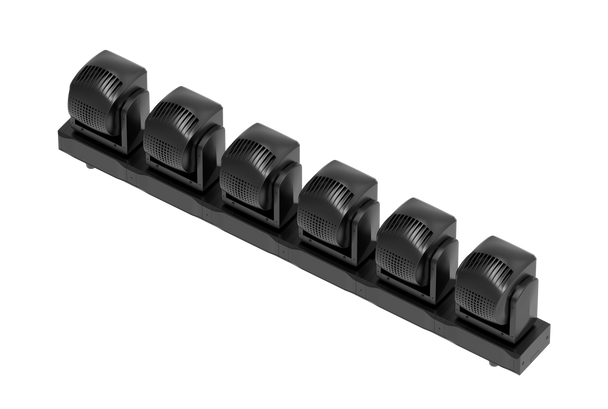

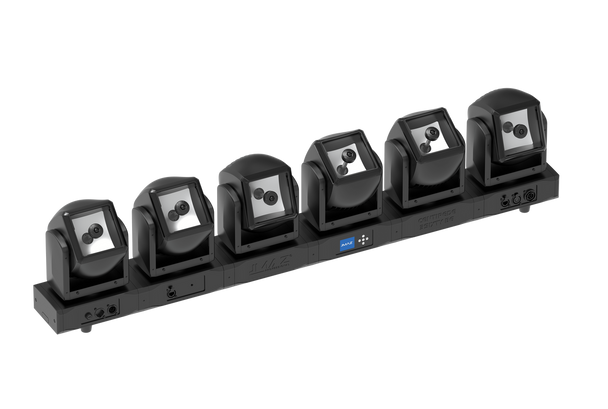

The JMAZ Professional Centipede 3SIXTY B6 is a dynamic RGBW moving head bar featuring six individually controlled 60W RGBW LED heads and 180 RGB SMD ring LEDs for striking visual effects. Each head offers 360° infinite pan/tilt rotation and pixel-level control, unlocking endless creative possibilities. Built-in macros include virtual color presets and animated movement sequences with full foreground and background color separation. With 16-bit RGBW color mixing and a variable CTO range of 2500K-8000K, the B6 delivers precision output through sharp 3.5° beams. Individual dynamic ring color effects and four personality modes (27/61/85/110 channels) make it versatile for everything from high-energy concerts to immersive installations. Compatible with DMX512, Art-Net, RDM, sACN, and Kling-Net, the 3SIXTY B6 ensures seamless integration into any advanced lighting setup. TRUE1 IN/OUT power connections and 5-pin DMX round out its professional-grade I/O. Includes TRUE1 power cable, 5-pin DMX cable, dual omega brackets, two safety cables, and a user manual. CE, cETL, FCC, and RoHS certified.
Features
- Six high-output 60W RGBW LED heads arranged in a linear moving head bar deliver intense 3.5° beam effects with exceptional brightness, color saturation, and aerial impact.
- Independent 360° continuous pan and tilt movement on every head transforms the fixture into a dynamic moving beam bar capable of limitless motion effects and sweeping visual displays.
- Individual head pixel control enables intricate beam chases, animations, and custom pixel-mapped effects across all six moving heads for stunning stage looks.
- Integrated RGB LED rings feature built-in color and effect macros with variable speed control, adding dynamic eye-candy effects that enhance the fixture's visual presence.
- Advanced 16-bit RGBW color mixing with linear CTO adjustment from 2500K-8000K delivers smooth fades, vibrant colors, and precise white light control.
- Built-in movement macros, virtual color presets, and multi-protocol support including DMX512, Art-Net, RDM, sACN, and Kling-Net simplify programming and integration into professional lighting systems.
Why We Like This
The Jmaz Lighting JP1003 Centipede 3SIXTY B6 RGBW LED Intelligent 6 Moving Head Bar is source-built for professional production environments, giving users a dependable moving head lighting fixture option with product details, compatibility, and physical specifications carried over from the setup sheet.
FAQs
Q: What is the Jmaz Lighting JP1003 Centipede 3SIXTY B6 RGBW LED Intelligent 6 Moving Head Bar?
A: It is a Jmaz Lighting moving head lighting fixture.
Q: What source features are included for the JP1003?
A: The Features section uses the product's source Feature 1 through Feature 10 fields where available.
Q: Where are the specifications for the JP1003?
A: The specs section includes the available full specifications, dimensions, weight, packaging, UPC, warranty, and source-linked product data.
Q: Are image links included for the JP1003?
A: Yes, when available in the Excel file, the Hero Image is listed first and the All Images Dropbox link follows it.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Body: |
Die-cast Aluminum and Steel structure with high impact flame retardant PA6 GF 30 (Polyamide 6); with 30% glass fiber |
Body - Exterior finish: |
Black |
Box Content: |
1 x 3SIXTY B6; 1 x TRUE1 Power Cable; 1 x 5-Pin DMX Cable; 1 x User Manual; 2 x Omega Brackets; 2 x Safety Cable |
Brand: |
Jmaz Lighting |
CE, cETL, FCC, RoHS - Maximum Temperature: |
60 ° C ( 140 ° F) |
CE, cETL, FCC, RoHS - Minimum Temperature: |
- 10 ° C ( 14 ° F) |
Color System: |
16 bit RGBW Color Mixing; Linear 16bit Color Temperature |
Color System - CTO: |
2500K - 8000K |
Control - Personalities: |
4 Modes 27/61/85/110 |
Control - Protocol: |
5-Pin DMX512, Art-Net, RDM, sACN, Kling-Net |
Country of Origin: |
China |
Designed and Engineered: |
California |
Dimensions: |
47.3″ x 10.5″ x 6.6″ |
Dynamic Effect: |
360° Pan / Tilt Continuous Movement & 540° Pan / 270° Tilt Movement (8-bit and 16-bit); Selectable preset home position Macros by DMX function channel for fast and easy programming; Selectable fast and precise movement speed by DMX function channel; |
Dynamic Effect - Linear Dimmer: |
0 - 100% Electronic Dimming |
Electrical: |
Up to 5 units @110V with a 20A circuit; Up to 9 units @208V with a 20A circuit; Up to 9 units @230V with a 20A circuit |
Electrical - Fuse: |
F12A, 250V |
Electrical - Input Voltage: |
100 - 240V AC, 50/60Hz (Auto ranging with active PFC) |
Electrical - Power Consumption: |
420W |
Full Product Specifications: |
Technical specifications Light Source • 360W (6 x 60W) RGBW LED • Ring Effect: 36W ( 180 x 0.2W) RGB SMD LEDs • LED Life: 50,000 Hours Color System • 16 bit RGBW Color Mixing • CTO: 2500K - 8000K • Linear 16bit Color Temperature • Individual Head Pix |
High Speed Electronic Shutter and Strobe: |
0-25Hz Shutter/Strobe effect with Variable Speed; Preset Pulse Strobe Effect with Variable Speed |
Individual Head Pixel Control: |
Individual Dynamic Ring Color And Effect Macro |
Item Height: |
10.4 in |
Item Length: |
47.3 in |
Item Weight: |
49.4 lbs |
Item Width: |
6.6 in |
Light Source: |
360W (6 x 60W) RGBW LED |
Light Source - LED Life: |
50,000 Hours |
Light Source - Ring Effect: |
36W ( 180 x 0.2W) RGB SMD LEDs |
Manufacturer: |
JMAZ Group |
Master Pack Cartons: |
1 |
Master Pack Height: |
9.7 in |
Master Pack Length: |
56.1 in |
Master Pack Quantity: |
1 |
Master Pack Weight: |
54.7 lbs |
Master Pack Width: |
15 in |
Model: |
JP1003 |
Optics - Beam Angle: |
3.5° |
Physical - Cable Length: |
Power 5 feet (1.5 meter); DMX 5 feet (1.5 meter) |
Physical - Connection: |
True1 (UL listed) |
Physical - Cooling: |
Fan |
Physical - IP Rating: |
20 |
Physical - Power In/Out: |
True1 |
Physical - Protocol Connectors: |
5-Pin DMX512 In/Out, Art-Net RJ45 |
Product Data Sheet: |
https://www.dropbox.com/scl/fi/e7qlpw1lnaumtznatl9r7/JMAZ-PROFESSIONAL-JP1003-CENTIPEDE-3SIXTY-B6-Product-Data-Sheet.pdf?rlkey=hb9zb90xc70uolaulqbj5d48k&st=coy54hpc&dl=0 |
Product Name: |
Centipede 3SIXTY B6 |
Product Type: |
Moving Head Lighting Fixture |
Prop 65 Compliant: |
Yes |
SKU: |
JP1003 |
Sharp Beam Effect: |
Dynamic Ring Effect with built-in Macros with variable speed |
Shipping Cartons: |
1 |
Shipping Height: |
9.7 in |
Shipping Length: |
56.1 in |
Shipping Width: |
15 in |
UPC: |
618528599007 |
Video URL: |
https://youtu.be/FxWDsWMtrCU?si=stO6uKAWPIa_oI4v |
Warranty: |
3 Years |
Website URL: |
https://jmazprofessional.com/Products/centipede-3sixty-b6/ |
