JBL

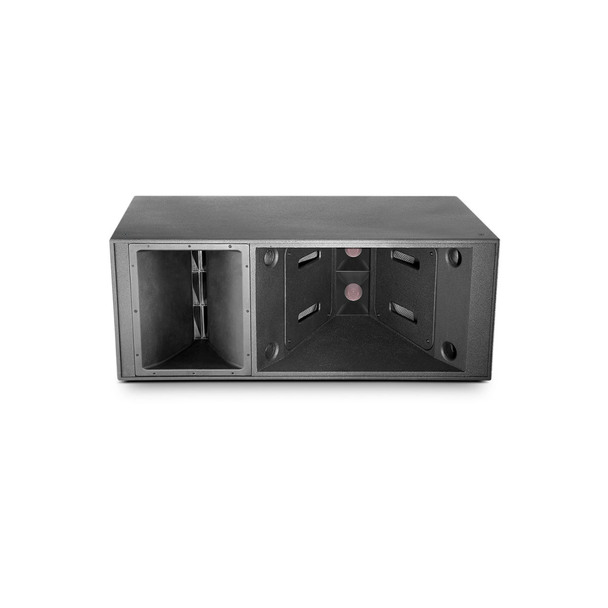

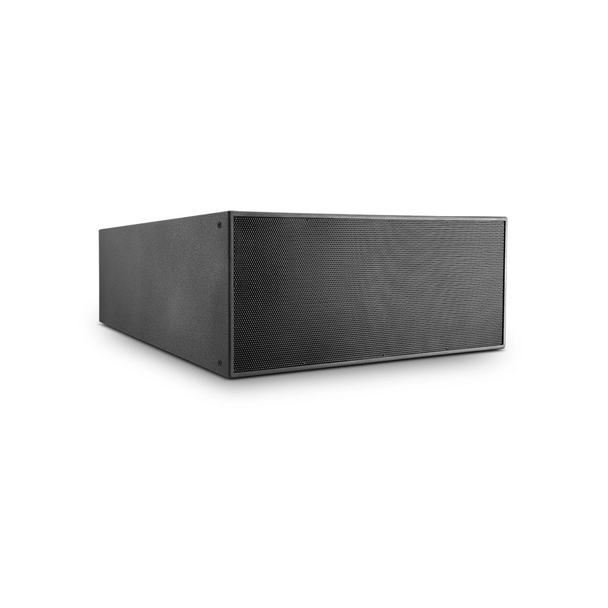

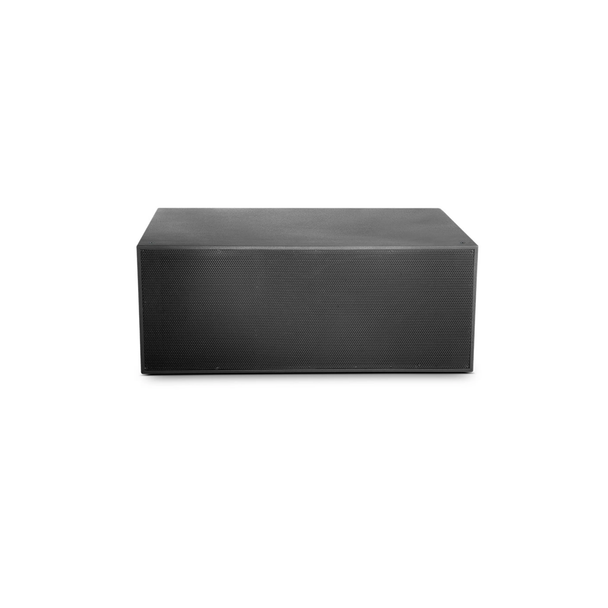

JBL VLA601i Three-Way Full Range Loudspeaker with 2 x 15" LF

$10,420.00
JBL VLA601i Three-Way Full Range Loudspeaker with 2 x 15" LF
JBL VLA601i Three-Way Full Range Loudspeaker with 2 x 15" LF
JBL VLA601i Three-Way Full Range Loudspeaker with 2 x 15" LF
SKU:
VLA601I
UPC:
691991014963
Width:
53.00 (in)
Height:
20.80 (in)
Depth:
30.20 (in)
Shipping:
$150.00 (Fixed Shipping Cost)
Current Stock:

Description

Three-Way Full Range Loudspeaker with 2 x 15" LF, 2 x 8" MF, 3 x 1.5" exit HF 60° Horizontal Dispersion

Variable Line Array Series (VLA Series) is a revolutionary product providing high-impact sound reinforcement at throw distances beyond the reach of traditional loudspeaker designs.

Features

  • Line array module optimized for permanent install applications.
  • Standard version features 3 HF drivers, 2MFdrivers, & 2 LF drivers
  • Advanced technology component transducers for low weight and high output.
  • Comprehensive rigging points for creating a line array configuration.
  • Rugged DuraFlex™ exterior finish and weatherized components. JBL's WRC or WRX weather protections
    also available.

Tech Specs

Frequency Range (-10dB):
41 - 20kHz
Frequency Response (-6 dB):
45 - 19.5kHz
Frequency Response (-3 dB):
50 - 19.2kHz
Horizontal Coverage:
60° nominal (500 Hz – 16 kHz)
Vertical Coverage:
Varies with array size and configuration.
System Power Ratings:
LF: 1000W Continuous (IEC /100 hour)

MF: 400W Continuous (IEC /100 hour)

HF: 160W Continuous (IEC /100 hour)
Maximum SPL (1m):
147.2dB (Preset: Flat)
LF Driver:
2 x JBL 2265H, 15in diameter, dual 3in diameter voice coil, Neodymium Differential Drive
Nominal Impedance:
4 ohms
Sensitivity (2.83V @ 1m):
LF: 99dB/96dB
MF: 107dB/104dB
HF: 108db/111dB
Mid-Frequency Driver:
2 x JBL 2169H, 8in diameter, dual 3in diameter voice coil, Neodymium Differential Drive
High-Frequency Driver:
3 x JBL 2432H, 1.5in exit compression driver, 3in diameter voice coil, Neodymium Magnet
Enclosure:
18mm and 16mm, Exterior grade Baltic birch plywood, DuraFlexTM finish or optional Fiberglass
Suspension Attachments:
16 points (4 each top bottom & rear, 2 each side), M10 threaded hardware (eyebolts NOT included).
Finish:
Black DuraFlexTM (STD), Gray DuraFlexTM (WRC), Gray Fiberglass (WRX), optional colors; Stainless Steel Hardware (WRC/WRX)
