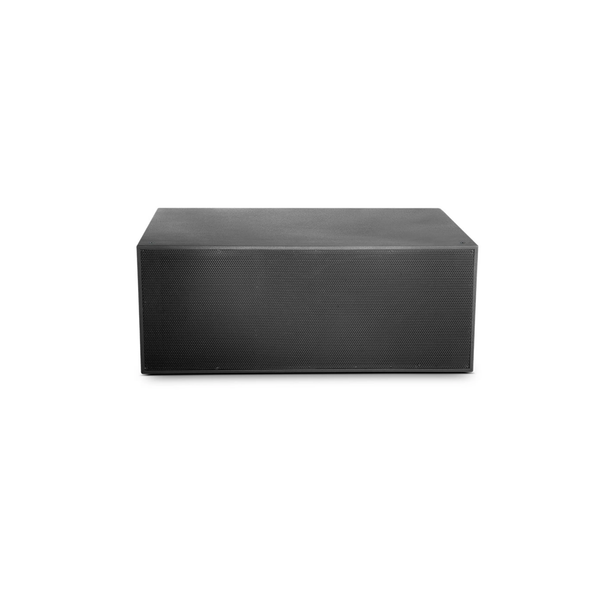

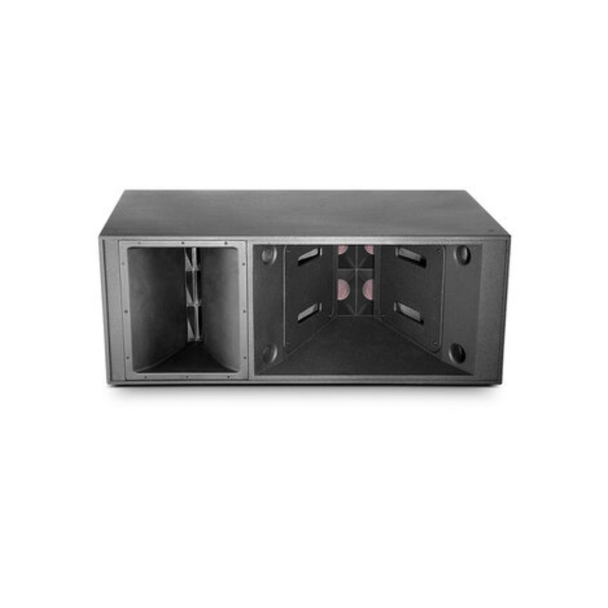

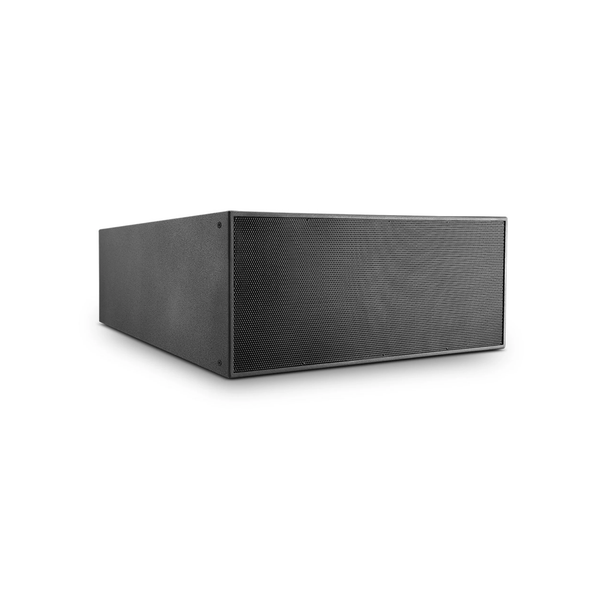

High Output Three-Way Full Range Loudspeaker with 2 x 15" LF, 4 x 8" MF, 6 x 1.5" exit HF 60° Horizontal Dispersion
Variable Line Array Series (VLA Series) is a revolutionary product providing high-impact sound reinforcement at throw distances beyond the reach of traditional loudspeaker designs.
Frequency Range (-10dB): |
41 - 20kHz |
Frequency Response (-6 dB): |
45 - 19.5kHz |
Frequency Response (-3 dB): |
50 - 19.2kHz |
Horizontal Coverage: |
60° nominal (500 Hz – 16 kHz) |
Vertical Coverage: |
Varies with array size and configuration. |
System Power Ratings (AES): |
LF: 1000W Continuous (IEC /100 hour) MF: 550W Continuous (IEC /100 hour) HF: 300W Continuous (IEC /100 hour) |
Maximum SPL (1m): |
150.7dB (Preset: Flat) |
LF Driver: |
2 x JBL 2265H, 15in diameter, dual 3in diameter voice coil, Neodymium Differential Drive |
Nominal Impedance: |
4 ohms |
Sensitivity (2.83V @ 1m): |
LF: 99dB/96dBMF: 104dB/104dB HF: 114db/111dB |
Mid-Frequency Driver: |
4 x JBL 2169H, 8in diameter, dual 3in diameter voice coil, Neodymium Differential Drive |
High-Frequency Driver: |
6 x JBL 2432H, 1.5in exit compression driver, 3in diameter voice coil, Neodymium Magnet |
Enclosure: |
18mm and 16mm, Exterior grade Baltic birch plywood, DuraFlexTM finish or optional Fiberglass |
Suspension Attachments: |
16 points (4 each top bottom & rear, 2 each side), M10 threaded hardware (eyebolts NOT included). |
Optional Weather Resistant Versions: |
WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity. |
