Description

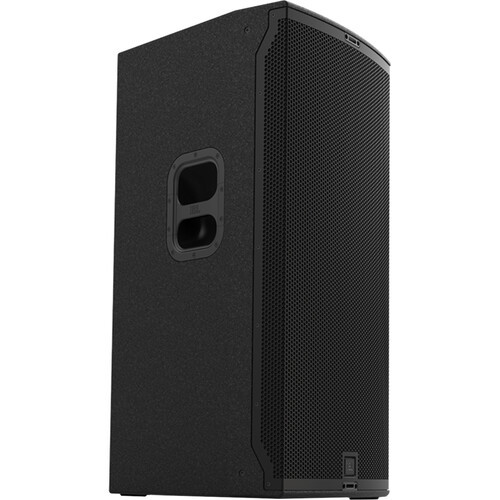

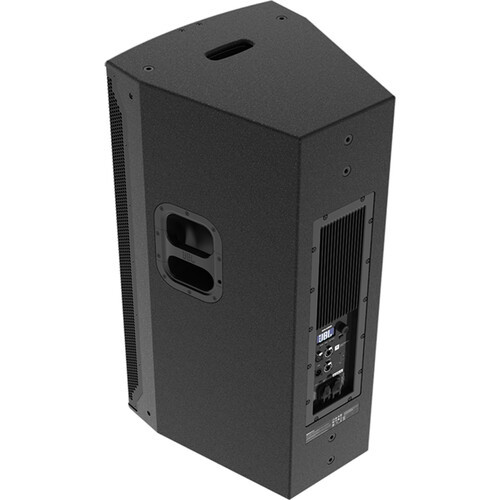

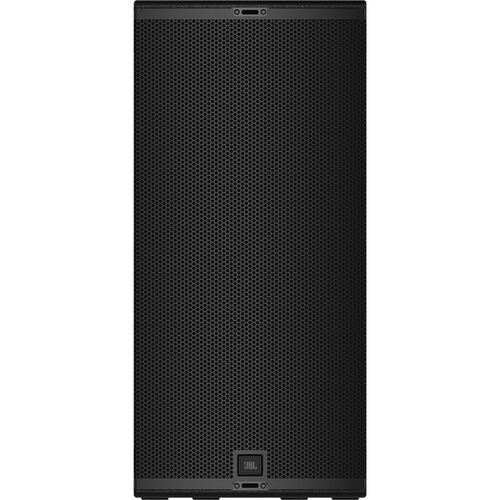

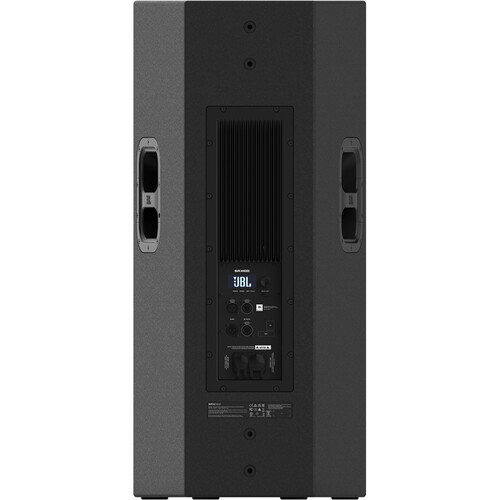

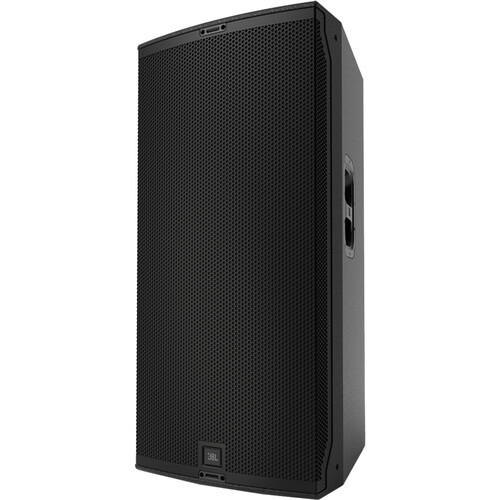

JBL SRX922 Dual 12-inch 3-Way Powered Point-Source Loudspeaker featuring High-Performance, High-Density System, Two 12-inch Low-Frequency Drivers, 6.5-inch Mid + 1.5-inch Compression Driver, Class-D Amplification, Two Ethernet Ports with Neutrik etherCON, Supports HARMAN HControl Ethernet, LevelMax Limiting for Protection, Eight M10 Quick-Link Attachment Points, Reinforced Baltic Birch Enclosure
Features
- High-Performance
- High-Density System
- Two 12-inch Low-Frequency Drivers
- 6.5-inch Mid + 1.5-inch Compression Driver
- Class-D Amplification
- Two Ethernet Ports with Neutrik etherCON
- Supports HARMAN HControl Ethernet
- LevelMax Limiting for Protection
- Eight M10 Quick-Link Attachment Points
- Reinforced Baltic Birch Enclosure
- Speaker Type: Active Loudspeaker
- Configuration: 3-Way
Why We Like This
This JBL product is presented with the confirmed specifications and application details supplied in the source record, supporting more confident system planning and integration.
FAQs
Q: What is the JBL SRX922 Dual 12-inch 3-Way Powered Point-Source Loudspeaker?
A: It is a active loudspeaker.
Q: What type of application is the JBL SRX922 Dual 12-inch 3-Way Powered Point-Source Loudspeaker intended for?
A: It is designed for the professional audio, cinema, live sound, or installed-sound application indicated by the source product details.
Q: What confirmed specifications are available for the JBL SRX922 Dual 12-inch 3-Way Powered Point-Source Loudspeaker?
A: The product specifications section lists the confirmed source specifications for this model.
Q: Does the JBL SRX922 Dual 12-inch 3-Way Powered Point-Source Loudspeaker include source-provided product images?
A: Source-provided product images are included in the image list when available.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
AC Input Power: |
100 to 240 VAC, 50 / 60 Hz |
AC Power I/O: |
1x powerCON TRUE1 Input,1x powerCON TRUE1 Output |
Alignment Delay: |
Up to 2000 ms (2200' / 670.56 m) |
Amplifier Class: |
Class-D |
Amplifier Power Rating: |
Low Frequency (LF),550 W Continuous / 800 W Peak,High/Mid Frequency (HF/MF),550 W Continuous / 800 W Peak |
Audio I/O: |
2x XLR 3-Pin Line Input/Output |
Box Dimensions (LxWxH): |
38.75 x 27 x 23.25-inch |
Brand: |
JBL |
Color: |
Black |
Configuration: |
3-Way |
Construction Material: |
Perforated Metal Grille, Polypropylene |
Coverage Angle: |
90° H x 60° V |
Current Consumption: |
120 VAC: 3 A (Typical) / 19.8 A (Max),240 VAC: 1.5 A (Typical) / 7.4 A (Max) |
Digital Signal Processing: |
24-Bit DSP, Delay, FIR Filter (Adjustable via Optional Software) |
Dimensions: |
37.2 x 19.9 x 17.3-inch / 94.5 x 50.5 x 43.9 cm |
EQ & Filters: |
No |
Enclosure Type: |
Bass-Reflex |
Environmental Resistance: |
No |
Frequency Range/Response: |
40 Hz to 17 kHz (-10 dB),48 Hz to 17 kHz (-3 dB) |

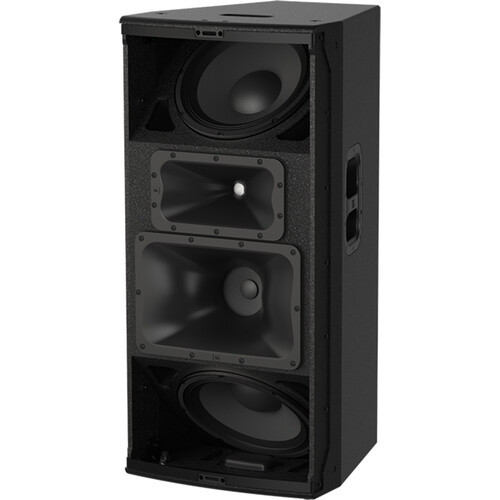

HF Driver: |
1x 1-inch / 25.4 mm Horn-Loaded Compression Driver,Voice Coil: 1.5-inch / 3.8 cm,Magnet: Neodymium |
Handles: |
1x Each Side |
LF Driver: |
2x 12-inch / 30.5 cm Woofer,Voice Coil: Dual 3-inch / 7.6 cm,Magnet: Ferrite |
MF Driver: |
1x 6-inch / 15.2 cm Horn-Loaded Cone,Voice Coil: 1.5-inch / 38.1 mm,Magnet: Ferrite |
Manufacturer: |
JBL |
Maximum SPL: |
138 dB SPL |
Mobile App Compatible: |
No |
Model: |
JBL-P3364MX |
Mounting: |
8 x M10 Fly Point |
Network I/O: |
2x etherCON/RJ45 (Ethernet) |
Package Weight: |
117.28 lb |
Product Type: |
Active Loudspeaker |
SKU: |
JBL-P3364MX |
Speaker Type: |
Active Loudspeaker |
Total Output Power: |
1100 W RMS / 1600 W Peak |
USB I/O: |
No |
Wireless: |
No |
