JBL SRX922 Dual 12" 3-Way Powered Point-Source Loudspeaker

$2,499.00
JBL SRX922 Dual 12" 3-Way Powered Point-Source Loudspeaker
JBL SRX922 Dual 12" 3-Way Powered Point-Source Loudspeaker
JBL SRX922 Dual 12" 3-Way Powered Point-Source Loudspeaker
JBL SRX922 Dual 12" 3-Way Powered Point-Source Loudspeaker
JBL SRX922 Dual 12" 3-Way Powered Point-Source Loudspeaker
JBL SRX922 Dual 12" 3-Way Powered Point-Source Loudspeaker
JBL SRX922 Dual 12" 3-Way Powered Point-Source Loudspeaker
JBL SRX922 Dual 12" 3-Way Powered Point-Source Loudspeaker
JBL SRX922 Dual 12" 3-Way Powered Point-Source Loudspeaker
SKU:
SRX922
Width:
37.20 (in)
Height:
17.30 (in)
Depth:
19.90 (in)
Shipping:
$50.00 (Fixed Shipping Cost)
Current Stock:

Out of stock or discontinued
Check new versions and similar products

Description

The SRX922 is a compact, acoustically three-way, dual 12-inch powered point-source loudspeaker engineered for applications requiring high output and precise directivity control from a trapezoidal full-range enclosure. It is an ideal choice for high-output mains systems, side-fills, or as a high-performance point-source element within larger SRX900 deployments.

The system delivers an exceptional output-to-weight ratio thanks to its innovative acoustic design, with dual LF woofers providing higher output than traditional 15-inch three-way systems in a significantly more compact enclosure. Multiple M10 QuickLink™ suspension points support fast, secure integration with a variety of dedicated accessories for touring and installed applications.

Integrated DSP and amplification provide a true plug-and-play experience, ensuring consistent, optimized performance anywhere in the world. A full-featured software suite provides comprehensive control and monitoring across Windows, macOS, and iPadOS platforms.

Features

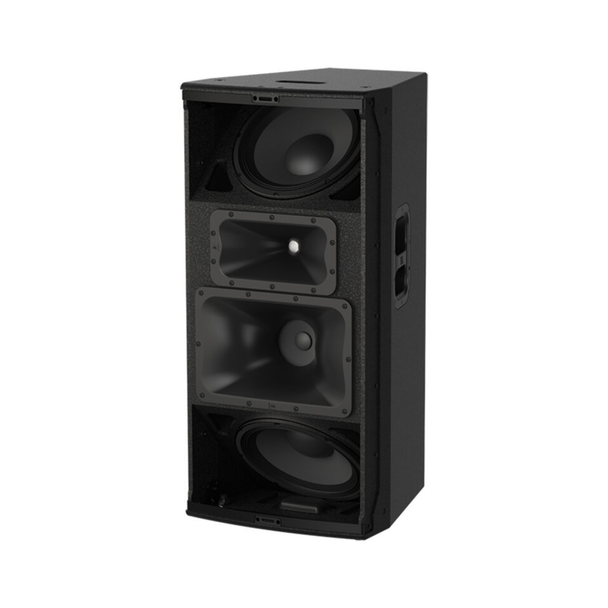

  • Includes dual 12-inch LF woofers, a 6.5-inch horn-loaded MF driver, and a 1.5-inch annular-diaphragm compression driver
  • Symmetrically-arranged dual LF section provides double the low-frequency headroom of traditional single-woofer designs
  • Dipole configuration delivers enhanced vertical directivity control
  • Horn-loaded MF section enables LF drivers to operate in their most efficient and controlled bandwidth
  • Dual 90° × 60° Progressive Transition™ waveguides provide smooth, predictable coverage
  • Four large, flared ports extend low-frequency response down to 50 Hz
  • 80 Hz high-pass preset available for applications using SRX900 subwoofers
  • Voicing and phase response carefully optimized to match SRX900 line-source products
  • Integrated amplification delivers plug-and-play operation
  • Rear LCD enables fast configuration
  • DSP includes 24 user-adjustable filters, 2,000 ms delay, and essential loudspeaker management tools
  • Eight M10 Quick-Link™ attachment points are provided for suspension using standard M10 eye bolts
  • Constructed from outdoor-grade Baltic birch plywood for excellent durability

Tech Specs

Frequency Range (-10dB):
40 Hz-17.5 kHz
Coverage Pattern:
90° x 60°
Maximum SPL:
138 dB
System Type:
Point-source, acoustically three-way, bi-amplified, powered
Amplifier Design:
Class-D
Continuous Power Rating:
1100 Watts | LF: 550 Watts | MHF: 550 Watts
LF Driver:
(2) JBL 2273G, 12 in diameter, dual 3.0 in diameter voice coil, ferrite Differential Drive®
MF Driver:
(1) JBL 196H-1, 6.0 in diameter, 1.5 in diameter voice coil, ferrite
HF Driver:
(1) JBL 2408H-1, 1 in exit neodymium compression driver with 1.5 in voice coil
Enclosure:
Exterior grade birch plywood, DuraFlexTM finish, two integral handholds, two integral recessed handles
Suspension:
(8) JBL QuickLink M10 points
