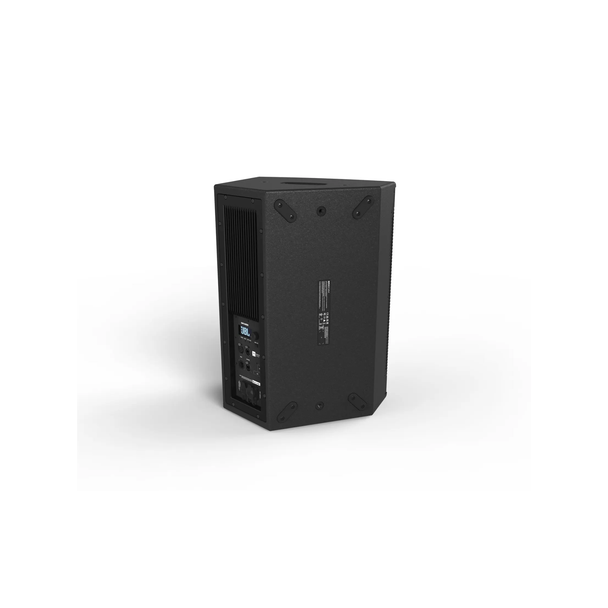

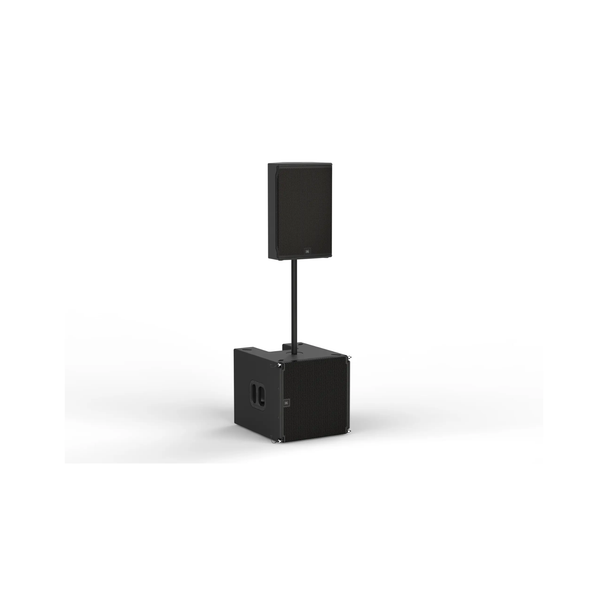

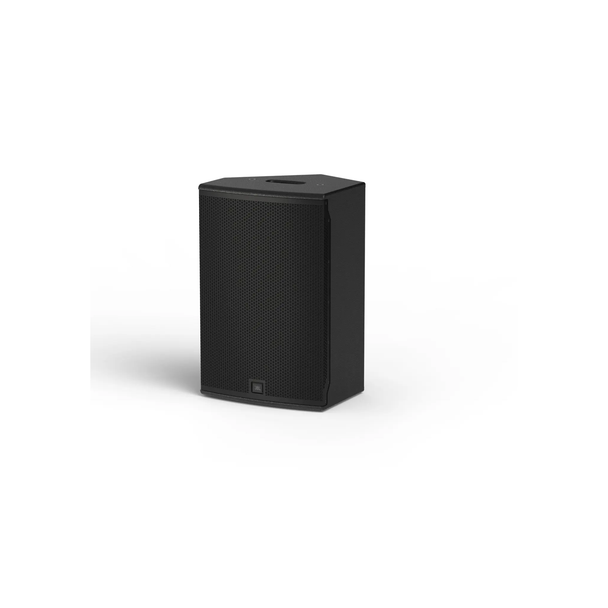

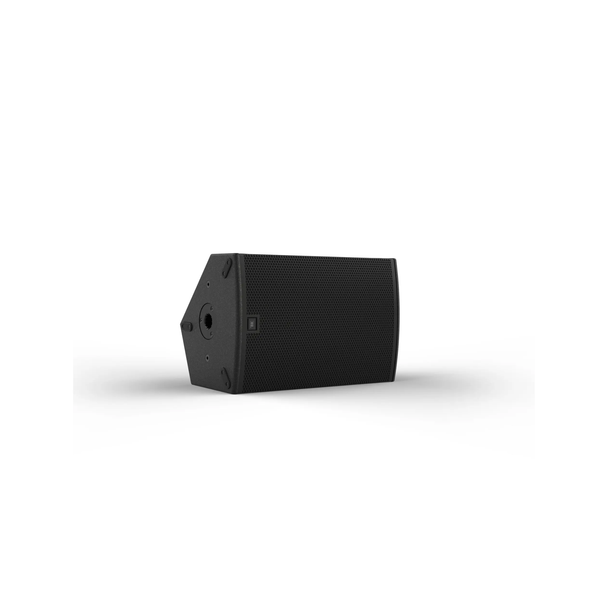

JBL SRX912M 12" 2-Way Multi-Purpose Powered Point-Source Loudspeaker

$1,799.00
JBL SRX912M 12" 2-Way Multi-Purpose Powered Point-Source Loudspeaker
JBL SRX912M 12" 2-Way Multi-Purpose Powered Point-Source Loudspeaker
JBL SRX912M 12" 2-Way Multi-Purpose Powered Point-Source Loudspeaker
JBL SRX912M 12" 2-Way Multi-Purpose Powered Point-Source Loudspeaker
JBL SRX912M 12" 2-Way Multi-Purpose Powered Point-Source Loudspeaker
JBL SRX912M 12" 2-Way Multi-Purpose Powered Point-Source Loudspeaker
JBL SRX912M 12" 2-Way Multi-Purpose Powered Point-Source Loudspeaker
JBL SRX912M 12" 2-Way Multi-Purpose Powered Point-Source Loudspeaker
JBL SRX912M 12" 2-Way Multi-Purpose Powered Point-Source Loudspeaker
JBL SRX912M 12" 2-Way Multi-Purpose Powered Point-Source Loudspeaker
JBL SRX912M 12" 2-Way Multi-Purpose Powered Point-Source Loudspeaker
JBL SRX912M 12" 2-Way Multi-Purpose Powered Point-Source Loudspeaker
SKU:
SRX912M
Width:
23.00 (in)
Height:
15.00 (in)
Depth:
13.40 (in)
Shipping:
Free Shipping
Current Stock:

Out of stock or discontinued
Check new versions and similar products

Description

The SRX912M is an exceptionally compact, multi-purpose, two-way 12-inch powered point-source loudspeaker that delivers remarkably high output for its size. It is designed for a wide range of applications, including use as a main PA, stage monitor, or front fill. When deployed as a stage monitor, the enclosure’s multi-purpose design provides a 42-degree monitor angle in an ultra-low-profile package.

Multiple M10 QuickLink™ suspension points support quick and secure integration with a variety of accessories for both portable and installed sound applications. Integrated DSP and amplification provide a true plug-and-play experience, ensuring consistent, optimized performance anywhere in the world.

JBL transducers and proprietary Progressive Transition™ waveguides deliver outstanding fidelity and best-in-class SPL from an enclosure of this size. A full-featured software suite provides comprehensive control and monitoring across Windows, macOS, and iPadOS platforms.

Features

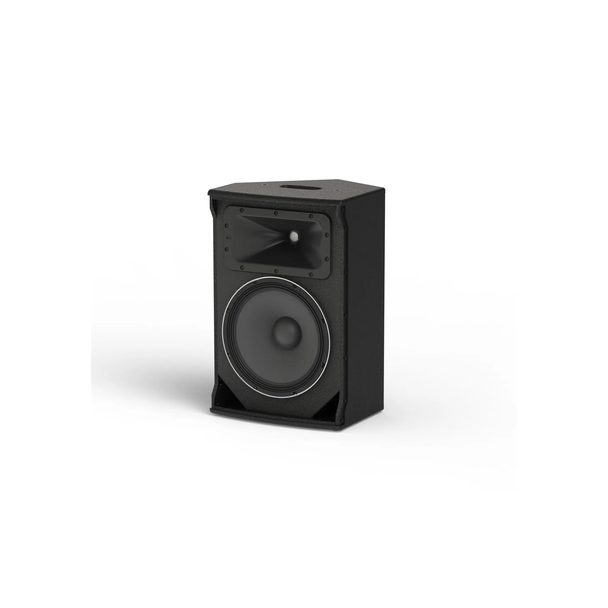

  • Includes single 12-inch low-frequency driver and neodymium 1.5-inch annular-diaphragm compression driver
  • 272F woofer employs JBL’s patented Differential Drive® technology
  • Dual 2-inch voice coils and a ferrite magnet provide ideal balance of output, weight, and thermal performance
  • 90° × 60° Progressive Transition™ waveguide ensures smooth, predictable coverage
  • LF extension reaches down to 50 Hz
  • 80 Hz high-pass preset available for applications using SRX900 subwoofers

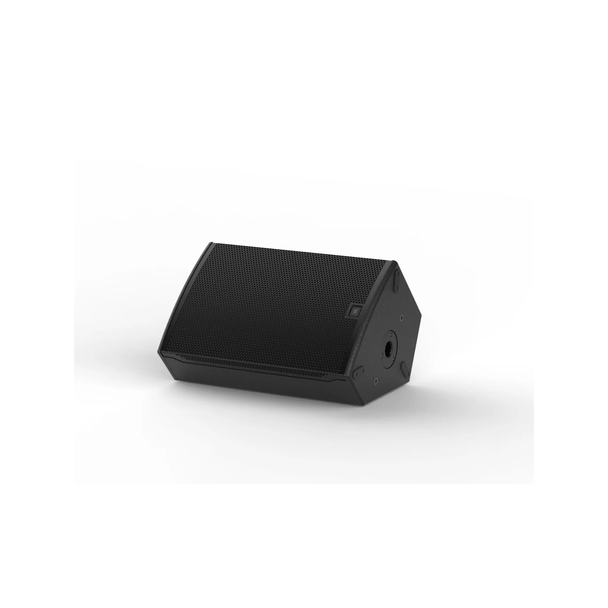

  • 42-degree monitor angle for use as a high-performance, full-range stage monitor

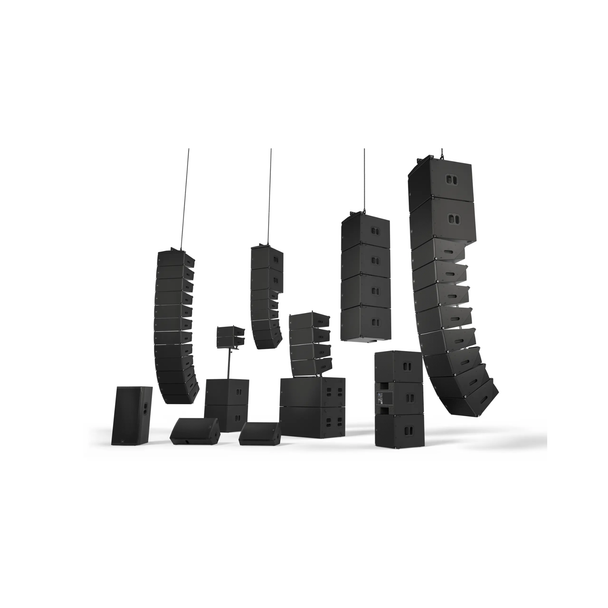

  • Voicing and phase response optimized to match SRX900 line-source products
  • Integrated amplification delivers plug-and-play operation
  • Rear LCD enables fast configuration
  • DSP includes 24 user-adjustable filters, 2,000 ms delay, and essential loudspeaker management tools

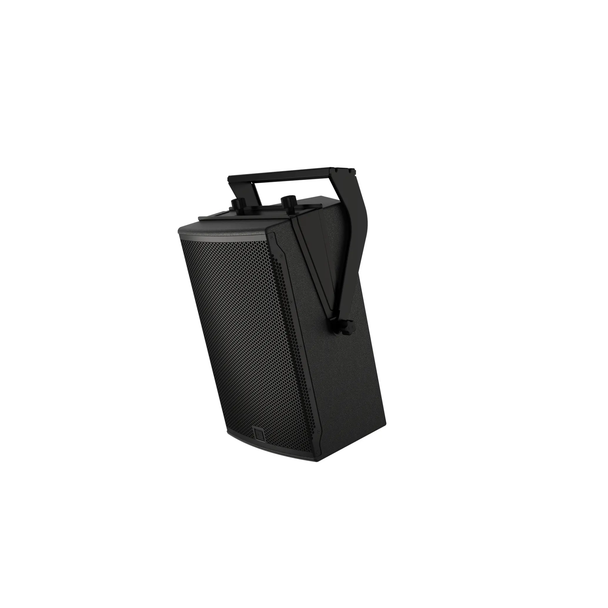

  • Six M10 Quick-Link™ attachment points are provided for suspension using standard M10 eye bolts
  • Constructed from outdoor-grade Baltic birch plywood for excellent durability

Tech Specs

Frequency Range (-10dB):
50 Hz-20 kHz
Coverage Pattern:
90° x 60°
Maximum SPL:
133 dB
System Type:
Multi-purpose point-source, two-way powered
Amplifier Design:
Class-D
Continuous Power Rating:
600 Watts | LF: 400 Watts | HF: 200 Watts
LF Driver:
(1) JBL 272F, 12 in diameter, dual 2.0 in diameter voice coil, ferrite Differential Drive®
HF Driver:
(1) JBL 2408H-1, 1 in exit neodymium compression driver with 1.5 in voice coil
Enclosure:
Exterior grade birch plywood, DuraFlex finish, one integral handhold
Suspension:
(6) JBL QuickLink M10 points
