JBL Control 414C/T Micro Plus 2-Way 4" Low-Profile Coaxial Ceiling Loudspeaker (Pair)

Description
Tech Specs
Delivery & Returns

Description

Ideal for restricted plenum spaces in commercial or public environments, the Control 414C/T Micro Plus is a low-profile ceiling loudspeaker intended for distributed audio systems, featuring a 4" woofer and a coaxially mounted 0.5" PEI soft-dome tweeter. With a 160° conical coverage design, this loudspeaker offers consistent coverage and directivity over a very wide area.

The Control 414C/T Micro Plus sports up to 100W peak power handling. The 25W 70/100V multitap transformer delivers low saturation at high drive levels, ensuring high-quality sound in distributed audio systems. The voice coil ensures a wide 69 Hz to 25 kHz frequency range for balanced and high-fidelity sound with extended highs. The stylish bezel-less grille cleanly fits into the aesthetics of nearly any space. The Control 414C/T Micro Plus includes a jumper and all necessary mounting hardware, including a cable strain relief, cutout template, tile rails, screws, and C-ring.

Note: this loudspeaker does not feature a transformer bypass and is designed for distributed audio systems only. A 70 Hz (24 dB/octave) high-pass filter is recommended.

Coaxial Loudspeaker Design

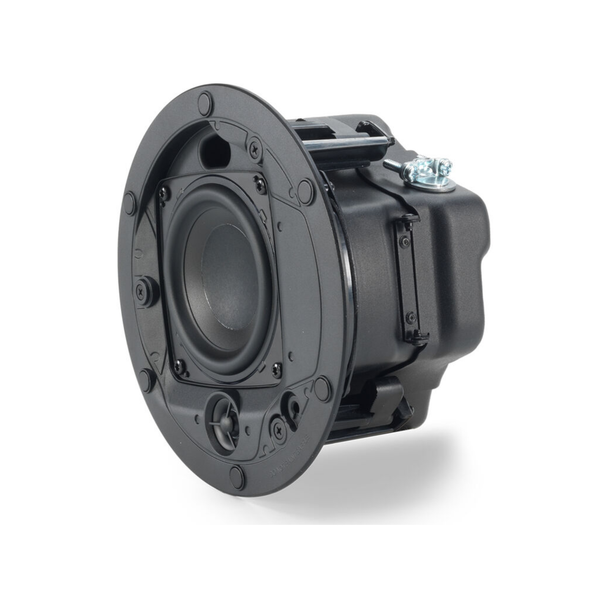

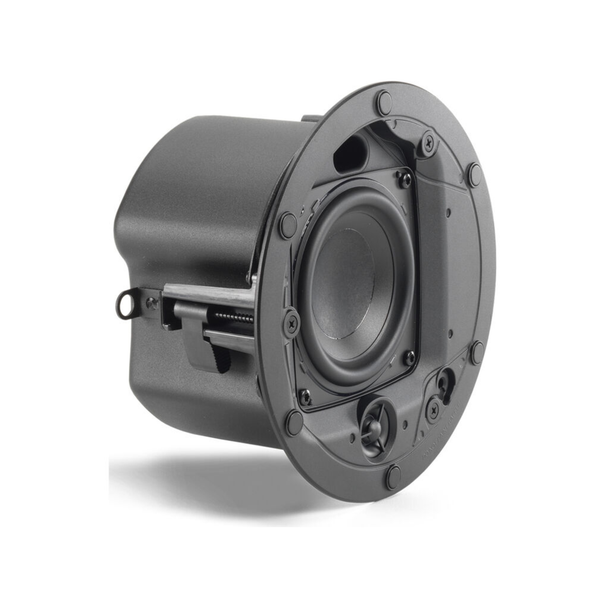

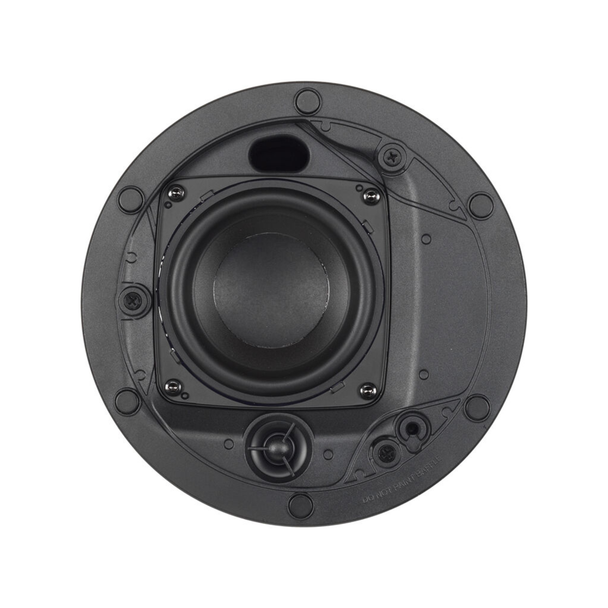

The Control 414C/T Micro Plus is a two-way ceiling speaker with a 4" woofer and 0.5" soft-dome tweeter mounted coaxially. The drivers are mounted in a ported baffle, with a pre-attached backcan for quick and easy installation. The Control 414C/T Micro Plus is designed to provide exceptional sound quality for a wide range of low to medium volume applications, such as music café’s, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more

Compact, Low-Profile Design

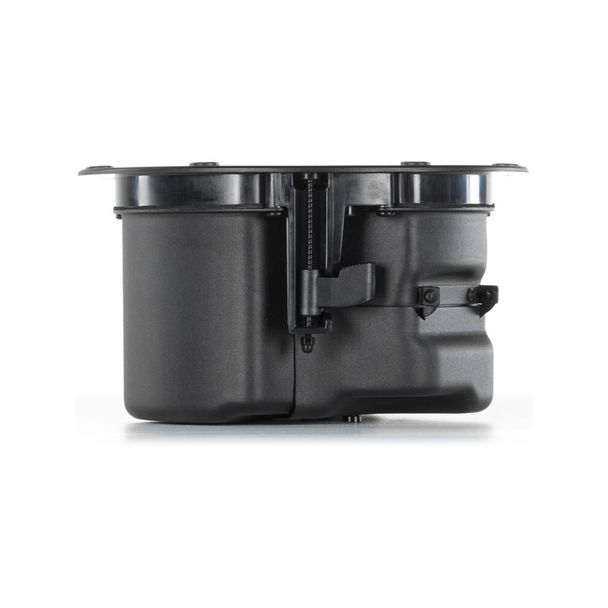

The Control 414C/T Micro Plus sports a compact design with a mere 4.6" depth. This makes this loudspeaker easy to mount when only restricted plenum spaces are available. The reduced bass response from the shorter back can makes this loudspeaker an ideal pairing for dedicated low-frequency satellite speakers, such as the Enhanced Coverage Series Control 419CS/T subwoofer.

Integrated 25W Transformer

Intended for distributed systems, the UL-registered transformer is designed for exceptionally low saturation, even at high drive levels, providing a top-quality, low-distortion distributed sound character.

Easy and Reliable Installation

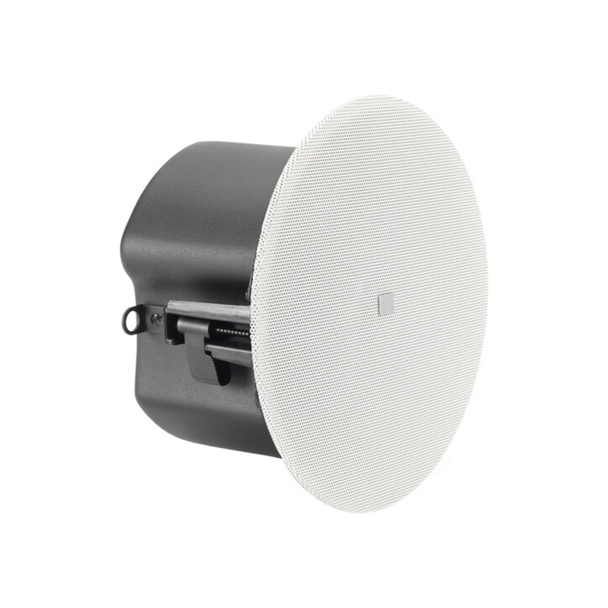

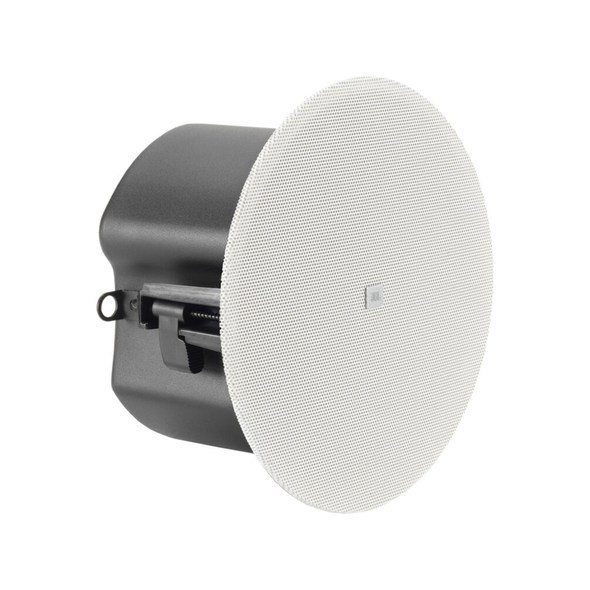

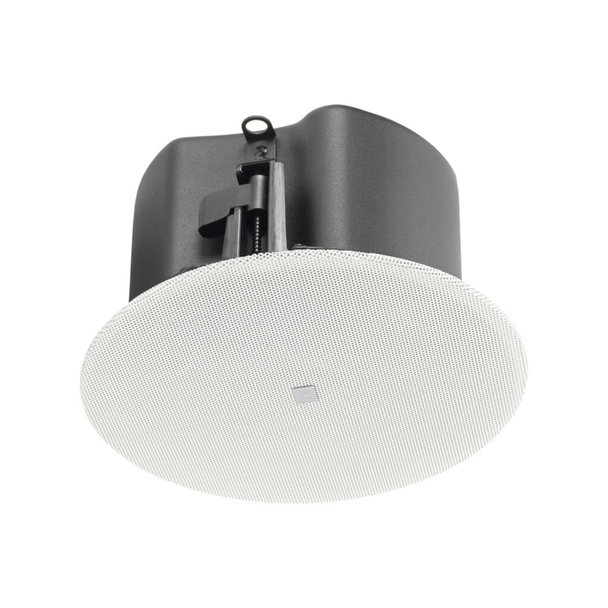

The stylish bezel-less grille fits seamlessly into a variety of architectural aesthetics. The integrated back can on the Control 414C/T Micro Plus combined with the C-ring support backing plate allows for quick and easy installation of the unit.

The included white grille is paintable (grille backing is removable and re-applicable for painting), and optional accessory grilles are available in black and in square shape. The Control 414C/T Micro Plus is UL 1480A and UL 2043 listed.

Efficient and Flexible

Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

Features

For Commercial Spaces, Hotels & Museums
Coaxial 4" Woofer and 0.5" Dome Tweeter
100W Peak Power Handling
70/100V 25W Multitap Transformer
69 Hz to 25 kHz Frequency Range
Extremely Wide 160° Coverage
PEI Dome Tweeter, Neodymium Magnet
Stylish Bezel-Free Grille
Includes Mounting Hardware

Tech Specs

Active/Passive:	Passive
Number of Included Speakers:	2
Speaker Configuration:	2-Way
Power Handling:	25 W RMS 100 W Peak
Constant Voltage / Transformer Taps:	70 V 25 / 12 / 6 W 100 V 25 / 12 W
HF Driver:	0.5" / 1.3 cm PEI Soft-Dome Tweeter
LF Driver:	4" / 10.2 cm Polypropylene-Coated Paper Woofer
Frequency Range:	69 Hz to 25 kHz -10 dB
