Description

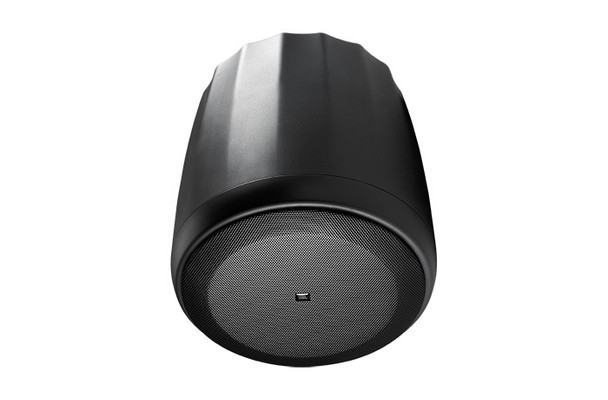

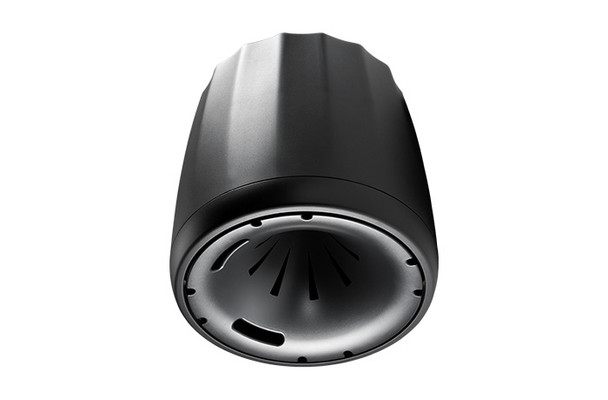

Narrow 75° Coverage High Ceiling Pendant Speaker
Control 67HC’s well-controlled narrow coverage is ideal for improved voice intelligibility and musical clarity in high-ceiling venues or in rooms with difficult acoustics, such as convention centers, transit centers, exhibit venues and hotel atrium areas.
FEATURES
∧
- RBI Radiation Boundary Integrator Technology
- Well-controlled 75° coverage for excellent clarity in high-ceiling and reverberant locations
- 6.5" (165 mm) low-frequency with silk-dome tweeter for outstanding sonic fidelity
- High 93 dB sensitivity
- 75 Watts, 8 ohms and 60W multi-tap transformer
- Black or white
SPECIFICATIONS
^
| Frequency Response (-10 dB) | 75 Hz – 17 kHz | |
| Frequency Range (±3 dB) | 110 Hz – 16 kHz | |
| Power Capacity | 75 Watts Continuous Pink Noise Power (with 300 Watts peaks) 150 Watts Continuous Program Power |
|
| Nominal Sensitivity | 93 dB | |
| Nominal Coverage Angle | 75° (+15°/-20°) | |
| Directivity (Q) | 10.4 | |
| Directivity Index (DI) | 9.8 dB | |
| Rated Maximum SPL @ 1m | 112 dB continuous pink noise, 118 dB peak | |
| Rated Impedance | 8 ohms | |
| Transformer Taps | 70V: 60W, 30W, 15W & 7.5W 100V: 60W, 30W, 15W |
|
| Transformer Insertion Loss | 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W | |
| LF Driver | 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former |
|
| HF Driver | 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former | |
| Enclosure Material | High impact polystyrene | |
| Grille | Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting) |
|
| Environmental | Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating. | |

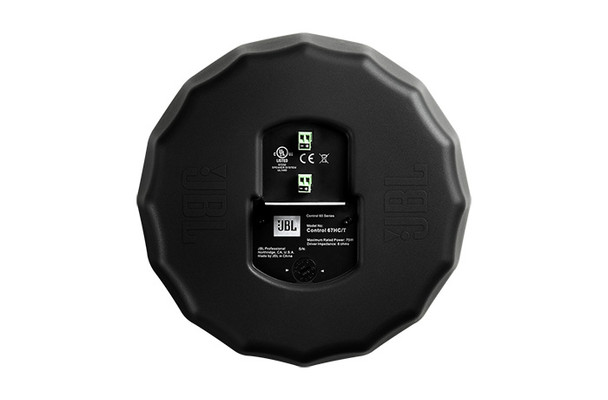

| Termination | Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included. | |
| Suspension | Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb). |
|
| Safety Agency Ratings | Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81. | |
| Dimensions | 333 mm (13.1 in) diameter x 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket. | |
| Net Weight (ea) | 5.9 kg (13 lbs) | |
| Shipping Weight (pair) | 14.1 kg (31 lbs) | |
| Included Accessories | Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors. | |
| Optional Accessories | MTC-PC60HC top panel / terminal cover | |
| Colors | Available in black or white (-WH). Paintable. |
