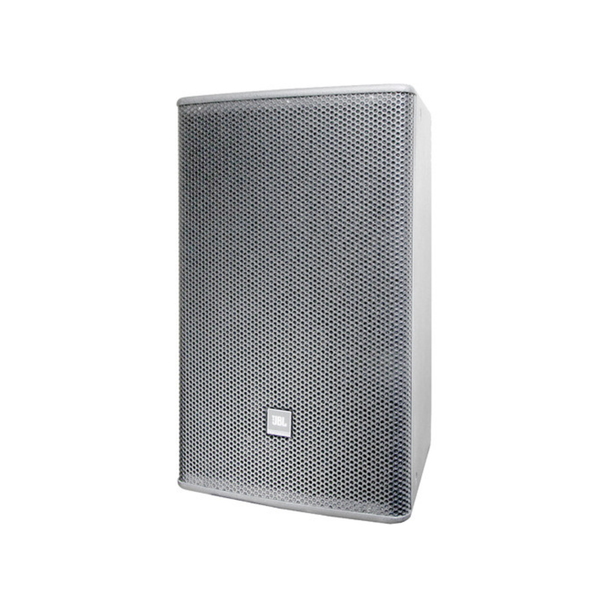

AC566 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC566 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications
Description
Features
- Robust 15mm enclosure with black textured finish
- 384 mm (15 in) LF transducer
- 60° x 60° Waveguide with a 25 mm (1 in) exit 35mm (1.5") diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
Applications
- Performing Spaces
- Clubs & Bars
- Houses of Worship
- Multi Media Spaces
- Retail & Hospitality Spaces
- Presentation Suites
- Educational Facilities
Tech Specs
Frequency Range (-10dB): |
60 Hz - 20 kHz |
Frequency Response (±3 dB): |
75 Hz - 18 kHz |
System Sensitivity (1w @ 1m): |
98 dB |
Nominal Impedance: |
8 ohms |
Maximum SPL (1m): |
122 dB (128 dB peak) |
System Power Rating: |
350W (1400W peak), 2 hrs (AES rated) 250W/500W/1000W (Continuous/Program/Peak) (IEC rated) |
Coverage Pattern: |
60° x 60° (H x V) |
Crossover: |
1.5 kHz |
LF Driver: |
1 x 15" woofer (P/N: 5053935), 384 mm (15 in) driver with 66 mm (2.5 in) voice-coil |
HF Driver: |
1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil |
Input Connector: |
Dual Neutrik NL4MP connectors plus covered barrier trip terminals |
Enclosure: |
15 mm multi-ply hardwood plywood |
Suspension Attachment: |
14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket |
Crossover Modes: |
Passive |
Nominal LF Driver Impedance: |
8 ohms |
Nominal HF Driver Impedance: |
8 ohms |
