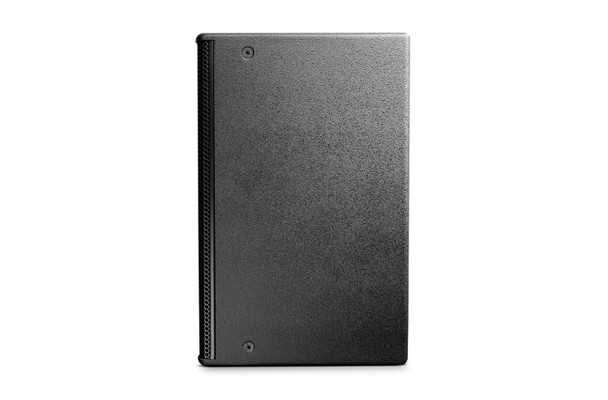

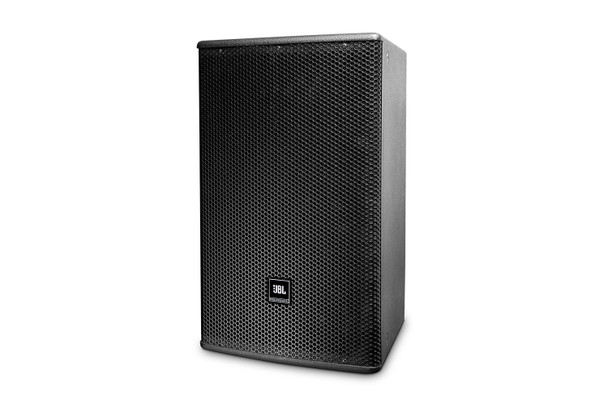

AC266 is a compact 2-way full-range loudspeaker system comprised of one 310 mm (12 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC266 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
Description
Features
- Robust 15mm enclosure with black textured finish
- 310 mm (12 in) LF transducer
- 60° x 60° Waveguide with a 25 mm (1 in) exit 35mm (1.5") diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
Applications
- Performing Spaces
- Clubs & Bars
- Houses of Worship
- Multi Media Spaces
- Retail & Hospitality Spaces
- Presentation Suites
- Educational Facilities
Specifications
| Frequency Response (-10dB) | 63 Hz - 20 kHz |
| Frequency Response (±3 dB) | 80 Hz - 18 kHz |
| System Sensitivity (1w @ 1m) | 97 dB |
| Nominal Impedance | 8 ohms |
| Maximum SPL (1m) | 121 dB (127 dB peak) |
| System Power Rating | 350W (1400W peak), 2 hrs (AES rated) 250 W/500 W/1000 W (Continuous/Program/Peak) (IEC rated) |
| Coverage Pattern | 60° x 60° (H x V) |
| Crossover | 1.5 kHz |
| LF Driver | 1 x 12" woofer (P/N: 5050730), 310 mm (12 in) driver with 66 mm (2.5 in) voice-coil |
| HF Driver | 1 x 2408H-2 driver with 25 mm (1 in) exit/35 mm (1.5 in) voice-coil |
| Input Connector | Dual Neutrik NL4MP connectors plus covered barrier trip terminals |
| Enclosure | 15 mm multi-ply hardwood plywood |
| Grille | Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing |
| Finish | Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish. |
| Suspension / Mounting | 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket |
| Dimensions (H x W x D) | 600 mm x 370 mm x 392 mm 23.6 in x 14.5 in x 15.4 in |
| Net Weight | 17.4 kg (38.3lbs) |
| Crossover Modes | Passive |
| Nominal LF Driver Impedance | 8 ohms |
| Nominal HF Driver Impedance | 8 ohms |
