Description

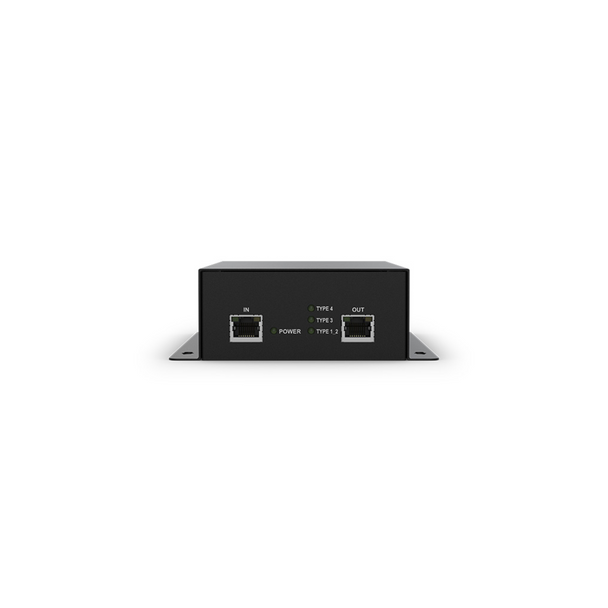

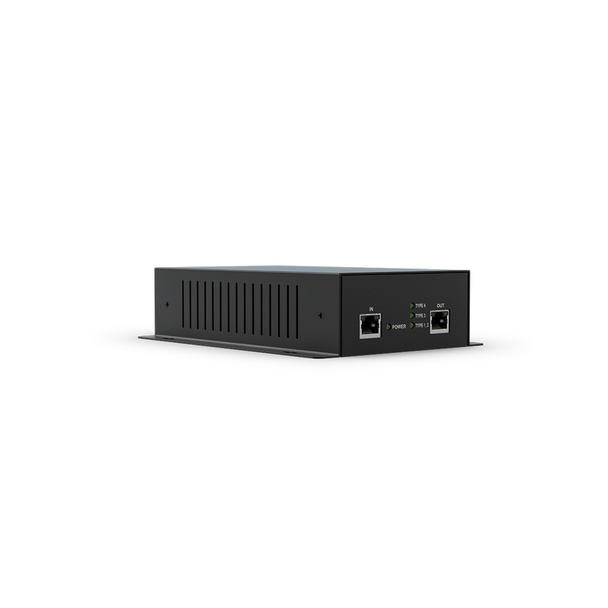

Designed to inject POE power to remote fixtures using the latest POE standard IEEE 802.3 bt (Power over Ethernet). The Logic POE Injector has 1 output port and supports a maximum of 92.5 W. This unit can be mounted using the 2 teardrop brackets on either side of the housing. One power cable is included. A Logic controller using the Logic Remote Protocol (proprietary) is required to monitor the POE Injector.
Specifications
- Fixture Color: Black
- Mounting Options: wall mount via teardrop slots on side of Injector housing (2 on each side, 4 total)
- Weight: 1.8 lb (0.9 kg)
Control Specifications
- Control Protocol: Art-RDM, Art-Net, sACN
- Standalone Control: N/A
- Recommended Control Cable Specification: Belden 2413F, 2412F
Electrical System Specifications
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging), From LOGIC Driver
- Power and Current:
- 150 W, 1.50 A @ 100 V
- 150 W, 1.25 A @ 120 V
- 150 W, 0.72 A @ 208 V
- 150 W, 0.63 A @ 240 V
