Description

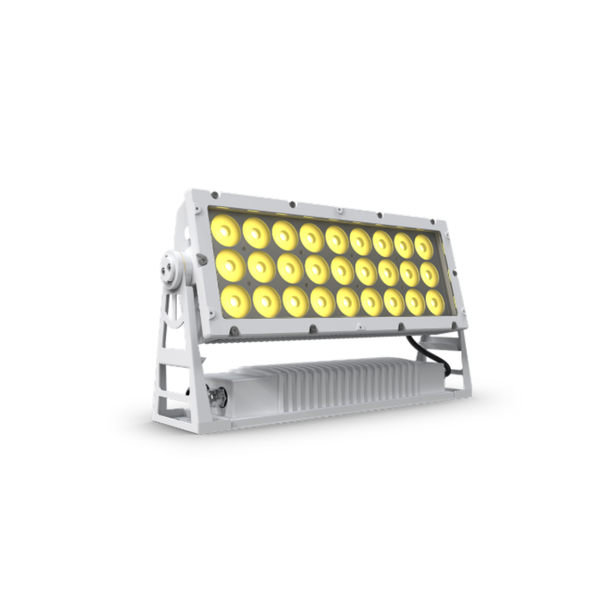

Ilumipanel ML2 from Iluminarc is a large-format LED architectural unit. Perfect for washing the sides of buildings in bold, beautiful colors, it includes a filter frame for attaching a range of optional easy-to-install beam spread filters designed to provide coverage for any size application. Installation is fast and simple, while the sleek chassis blends into the environment. Precision optics eliminate multicolored shadows, and the RGBL (Red, Green Blue, Lime) four-in-one LEDs output clean, true whites and a nearly unlimited palette of striking colors.
Specifications
Light Source and Optical Specifications
- Light Source: 27 LEDs (quad-color RGBL) 20 W, (1.5A)
- Installed Optics: 6°
- Optional Optics: Medium filter, Wide filter, Very Wide, Asymmetrical Filter
- Beam Angle:
(Installed optics): 8°
(Medium filter): 20.8°
(Wide filter): 34.4°
(Very Wide filter): 34°
(Asymmetrical filter): 40° x 13.9° - Field Angle:
(Installed optics): 14.6°
(Medium filter): 43.7°
(Wide filter): 69.1°
(Very Wide filter): 70.3°
(Asymmetrical filter): 79.8° x 30.9° - Cutoff Angle:
(Installed optics): 20.8°
(Medium filter): 64.7°
(Wide filter): 126.2°
(Very Wide filter): 151.1°
(Asymmetrical filter): 165.3° x 58.9° - Lumens:
(Installed optics): 11,884
(w/Medium filter): 6,444
(w/Wide filter): 6,597
(w/Very Wide filter): 6,090
(w/Asymmetrical filter): 7,122 - Iluminance:
(Installed optics): 17,205 lux @ 5 m
(w/Medium filter): 1,277 lux @ 5 m
(w/Wide filter): 502 lux @ 5 m
(w/Very Wide filter): 438 lux @ 5 m
(w/Asymmetrical filter): 884 lux @ 5 m - Efficacy At Full: 38 lm/W
- Color Temperature Presets: 1800K – 10000K
Construction & Physical Specifications
- Dimensions: 20.51 x 7.32 x 9.12 in (521 x 186 x 232 mm)
- Fixture Color: Off white, C5-M
- Housing Material: Cast aluminum
- Lens Cover: Impact resistant glass
- Mounting Options: Bracket, Hole Diameter 13M
- Weight: 25.4 lb (11.5 kg)
Control Specifications
- Control Protocol: USITT DMX-512a, RDM
- Operating Modes: Selectable personalities
Solid (1-Channel)
Arc 1 (3-Channel)
Arc 1+D (4-Channel)
Arc 2 (4-Channel)
Arc 2+D (5-Channel)
Arc Full (8-Channel)
Special 1 (15-Channel)
Special 2 (9-Channel) - Data Connections:
- 6.25 ft (1.9 m) waterproof cable, bare wired to hardwired
- Fixture Setup: RDM Only
- Standalone Control: Yes
- Recommended Control Cable Specification: Gepco DLC224
