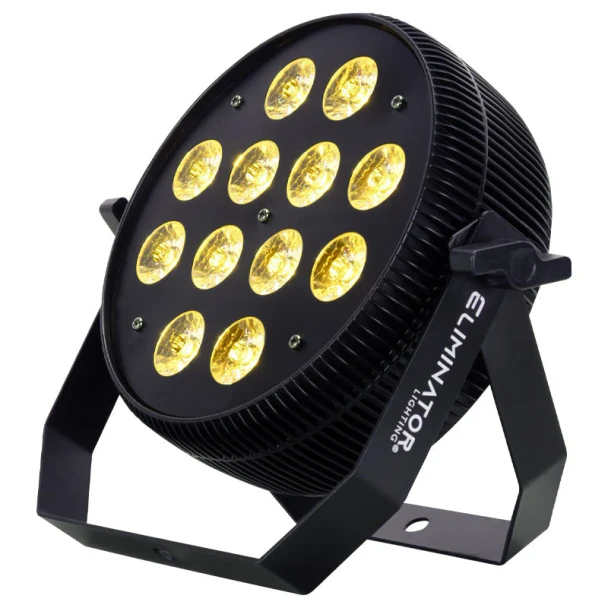

ELIMINATOR LP HEX 12 PLUS

The Eliminator LP HEX 12 PLUS is a compact, high-output LED wash fixture engineered to deliver brilliant color performance for DJs, bands, production companies, theaters, houses of worship, and event venues. Equipped with 12 powerful 18W RGBWA+UV 6-in-1 LED's, it produces vibrant saturated colors, crisp whites, rich UV effects, and smooth pastel tones with excellent color mixing.

A 25° beam angle provides even wash coverage while maintaining strong output, making the fixture ideal for stage lighting, uplighting, wall washing, and special event applications. Built-in white light balance adjustment allow users to fine-tune output for consistent color reproduction across multiple fixtures.

The LP HEX 12 PLUS offers flexible operation with DMX512, Primary-Secondary, Auto Run, and Sound Active modes. Two DMX channel modes (6 or 10 channels) provide simple or expanded control options, while the onboard 4-digit, 7-segment LED display allows for quick and easy setup. Smooth 0–100% linear dimming and a high-speed electronic strobe add creative flexibility for dynamic lighting effects.

Constructed with a rugged metal housing, the fixture is designed for reliable indoor use in both portable and permanent installations. Locking power input/output connectors and 3-pin XLR DMX connections make setup simple and dependable, while universal auto-switching power ensures compatibility worldwide.

SOURCE:

• 12 × 18W RGBWA+UV 6-in-1 LED's

PHOTOMETRIC DATA:

• 25° Beam Angle
• Pure Color Output
• Excellent Color Mixing
• Smooth Wash Output

COLOR:

• RGBWA+UV 6-in-1 Color Mixing
• White Light Balance Setting

EFFECTS:

• 0–100% Linear Electronic Dimming
• High-Speed Synchronous Strobe

CONTROL / CONNECTIONS:

• 2 DMX Channel Modes (6 / 10 Channels)
• DMX512
• Primary-Secondary Mode
• Auto Run Mode
• Sound Active Mode

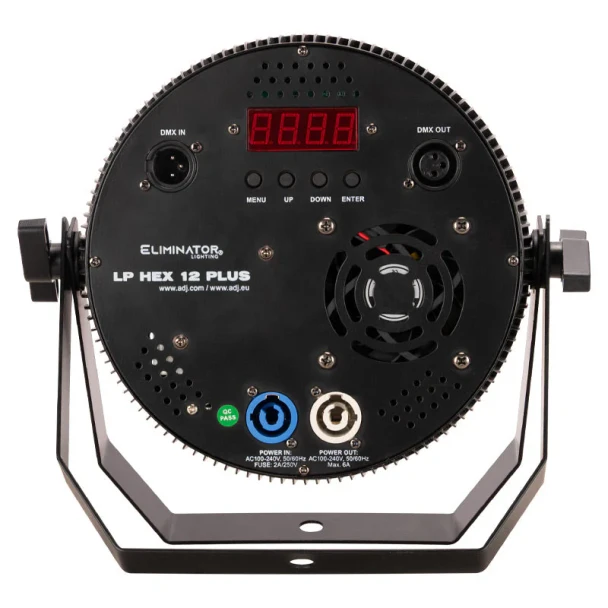

• 4-digit, 7-segment LED display
• 3-pin XLR DMX In/Out
• Indoor Locking Power In/Out

SIZE / WEIGHT:

• Length: 8.27" (210mm)
• Width: 9.84" (250mm)
• Height: 7.48" (190mm)
• Weight: 5.51 lbs. (2.5kg)

ELECTRICAL / THERMAL:

• AC 100-240V, 50/60Hz
• Max Power Consumption: 110W
• Temperature Control Protection

CONSTRUCTION:

• Durable Metal Housing

Why We Like This

The LP HEX 12 PLUS combines powerful RGBWA+UV color mixing, excellent white light quality, UV capability, and professional control features into a compact fixture that's equally suited for touring productions, event lighting, permanent installations, and mobile DJs.

FAQs

Q: What LED colors are included?
The fixture uses RGBWA+UV 6-in-1 LEDs, allowing vibrant colors, clean whites, warm tones, and ultraviolet effects.

Q: Does it support DMX control?
Yes. It supports DMX512 with selectable 6-channel and 10-channel operating modes.

Q: Can it operate without a lighting console?
Yes. It includes Auto Run, Sound Active, and Primary-Secondary operating modes for standalone use.

Q: Is it suitable for professional stage lighting?
Yes. Its high-output LEDs, white balance adjustment, smooth dimming, and durable construction make it ideal for concerts, theaters, churches, venues, and professional event productions.
