Description

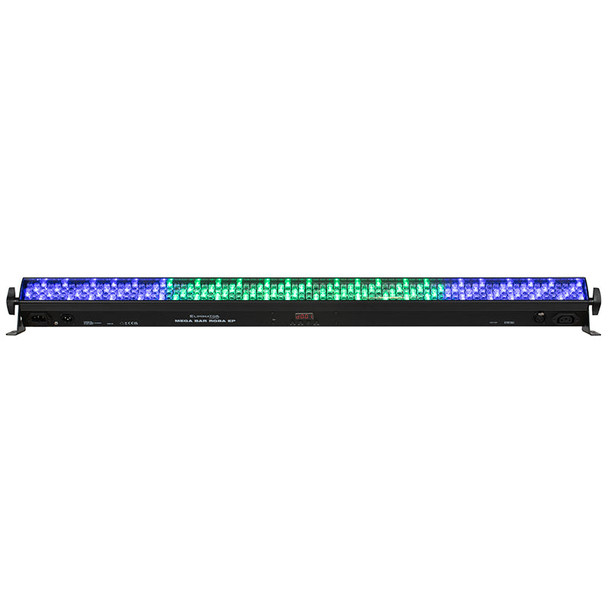

The Eliminator Lighting Mega Bar RGBA EP is a 42-inch indoor LED wash bar with 320 RGBA LEDs. It provides variable color mixing, 48 built-in color macros, DMX control, and included mounting brackets for stage and wall washing.
Features
- 320 10 mm RGBA LEDs
- 30-degree beam angle
- 48 built-in color macros
- LED pulse and strobe effects
- Seven DMX channel modes: 4, 6, 7, 9, 10, 18, or 34 channels
- 3-pin DMX input and output
- 100–240 V, 50/60 Hz operation
- Mounting brackets included
Why We Like This
RGBA color mixing, built-in macros, and DMX control offer several ways to create stage and wall washes from one linear fixture.
FAQs
Q: Is the ADJ RFC remote included?
A: The ADJ RFC wireless remote is compatible and sold separately.
Q: What mounting hardware is included?
A: Mounting brackets are included for wall mounting or placement on the ground.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Source 1: |
1-Meter (42-inch) indoor Linear Fixture with 320, 10mm RGBA LED's (64 Red, 96 Green, 96 Blue 64 Amber) |
Source / Beam angle: |
30-degree |
Source 3: |
Long life LED (Rated at 50,000 hrs.) |
Source / Light output: |
650 LUX @ 2M; 275 LUX @ 4M (30-degree beam) |
Effects 1: |
Variable RGBA color mixing offers a seemingly unlimited color palette - Great for Stage or Wall Washing! |
Effects 2: |
48 built-in Color Macros |
Effects 3: |
LED pulse strobe effect |
Effects 4: |
Flicker Free |
Effects / Refresh Rate: |
410Hz |
Effects / Electronic Dimming: |
0 - 100% |
Control 1: |
4-button LED display on rear panel |
Control / 7 DMX Channel modes: |
4, 6, 7, 9, 10, 18 or 34 channel modes |
Control / 6 Operational modes: |
Manual Color Mode; Static Color Change Mode; Auto (Program Run) Mode; Sound Active Mode; RGBA Manual Control Mode and DMX-512 Mode |
Control 4: |
DMX-512 Protocol |
Control 5: |
Compatible with ADJ RFC wireless remote control (sold separately) |
Connections 1: |
Magnetic End Caps Designed to Ensure the Precise Alignment of Multiple Bars |
Connections 2: |
3-pin DMX Input/Output |
Connections 3: |
IEC In/Out AC outlets on rear to daisy chain power (up to 20 units) |
Connections 4: |
With Wired Digital Communication Network |
Electrical / Multi-voltage: |
100-240V, 50/60Hz |
Electrical / Power Draw: |
32W max |
Dimensions / Weight / Dimensions (LxWxH): |
41.75” x 3” x 5.75” / 1060 x 73 x 145mm |
Dimensions / Weight / Weight: |
6 lbs. / 2.7 kg. |
What’s Included 1: |
Includes mounting brackets to mount on a wall or set on the ground |
What’s Included / Power cable length: |
1.8 meter (IEC) |
What’s Included 3: |
Specifications are subject to change without notice. |
Imported dimensions (L x W x H, inches): |
41.75 x 3 x 5.75 |
Imported dimension type: |
Product dimensions |
Imported weight (lb): |
6 |
Imported weight type: |
Product dimensions |
