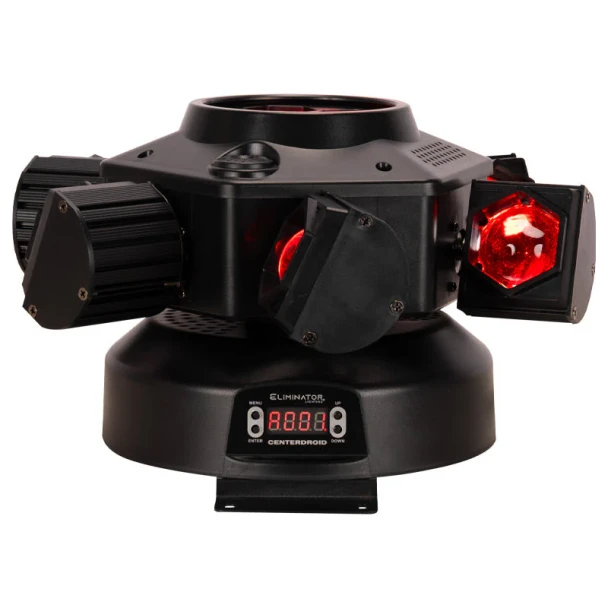

Eliminator CenterDriod Multi-Effect Lighting Fixture

The Eliminator CenterDriod is a powerful all-in-one lighting effect fixture designed to be the visual centerpiece of any performance or entertainment space. Combining ten high-output 15W RGBW 4-in-1 LED's with integrated red and green lasers, CenterDriod produces brilliant color beams, vivid mid-air effects, sweeping movements, and dynamic laser patterns that transform dance floors and stages into immersive lighting experiences.

Its tilting arms and rotating center optics continuously change the direction and movement of the light, creating constantly evolving effects that add energy and excitement to clubs, bars, mobile DJ events, lounges, and live performances. Rich RGBW color mixing delivers vibrant saturated colors, while the integrated lasers add sharp aerial patterns and depth to every show.

CenterDriod offers flexible operation through DMX512, Manual, Primary-Secondary, Auto Run, and Sound Active modes, making it equally suited for fully programmed productions or plug-and-play entertainment. A 22-channel DMX personality provides comprehensive control over movement, color, dimming, and effects, while smooth 0–100% linear dimming and onboard programming make it easy to customize performances.

A 4-digit, 7-segment LED display simplifies setup and addressing, while 3-pin XLR DMX connectivity and IEC power input provide reliable integration into professional lighting systems. Housed in a compact enclosure and weighing just over eight pounds, the Eliminator CenterDriod delivers professional multi-effect lighting performance for indoor venues of all sizes.

SOURCE:

• 10 × 15W RGBW 4-in-1 LED's

LASERS:

• 1 × 100mW Red Laser
• 1 × 50mW Green Laser

PHOTOMETRIC DATA:

• Pure Color Output
• Excellent Color Mixing
• Dynamic Beam Effects

COLOR:

• RGBW 4-in-1 Color Mixing

EFFECTS:

• Tilting Arms
• Rotating Center Optics
• Dynamic Beam Effects
• Laser Effects
• 0–100% Linear Electronic Dimming

CONTROL / CONNECTIONS:

• 22 DMX Channels
• DMX512
• Manual Mode
• Primary-Secondary Mode
• Auto Run Mode
• Sound Active Mode
• 4-digit, 7-segment LED Display
• 3-pin XLR DMX In/Out
• IEC Power In

SIZE / WEIGHT:

• Length: 12.2" (310mm)
• Width: 12.2" (310mm)
• Height: 7.48" (190mm)
• Weight: 8.16 lbs. (3.7kg)

ELECTRICAL / THERMAL:

• AC 100-240V, 50/60Hz
• Max Power Consumption: 100W

APPROVALS / RATINGS:

• IP20

Why We Like This

The CenterDriod packs multiple professional lighting effects into one compact fixture. With moving RGBW beams, rotating optics, integrated lasers, and versatile operating modes, it delivers a complete light show that's perfect for DJs and venues looking to maximize visual impact with minimal setup.

FAQs

Q: What lighting effects are built into the CenterDriod?
The fixture combines RGBW moving beam effects, tilting arms, rotating center optics, and integrated red and green lasers into one all-in-one lighting system.

Q: Can it operate without a DMX controller?
Yes. It supports Auto Run, Sound Active, Manual, and Primary-Secondary modes for standalone operation.

Q: Does it support professional DMX programming?
Yes. The fixture features a 22-channel DMX mode for detailed control over movement, color, dimming, and laser effects.

Q: What venues is the CenterDriod best suited for?
It is ideal for DJs, clubs, bars, lounges, dance floors, live performances, event venues, and mobile entertainment where a single fixture can create a complete, high-energy lighting show.
