Elation Lighting

Elation Professional Prisma Driver 8 IP IP 65 driver for Prisma Mini Series

Write a Review
$833.00
Elation Professional Prisma Driver 8 IP IP 65 driver for Prisma Mini Series
Elation Professional Prisma Driver 8 IP IP 65 driver for Prisma Mini Series
Elation Professional Prisma Driver 8 IP IP 65 driver for Prisma Mini Series
Elation Professional Prisma Driver 8 IP IP 65 driver for Prisma Mini Series
Elation Professional Prisma Driver 8 IP IP 65 driver for Prisma Mini Series
Elation Professional Prisma Driver 8 IP IP 65 driver for Prisma Mini Series
Elation Professional Prisma Driver 8 IP IP 65 driver for Prisma Mini Series
Elation Professional Prisma Driver 8 IP IP 65 driver for Prisma Mini Series
SKU:
PSD162
Width:
10.40 (in)
Height:
8.70 (in)
Depth:
4.05 (in)
Shipping:
Free Shipping
Current Stock:

Description

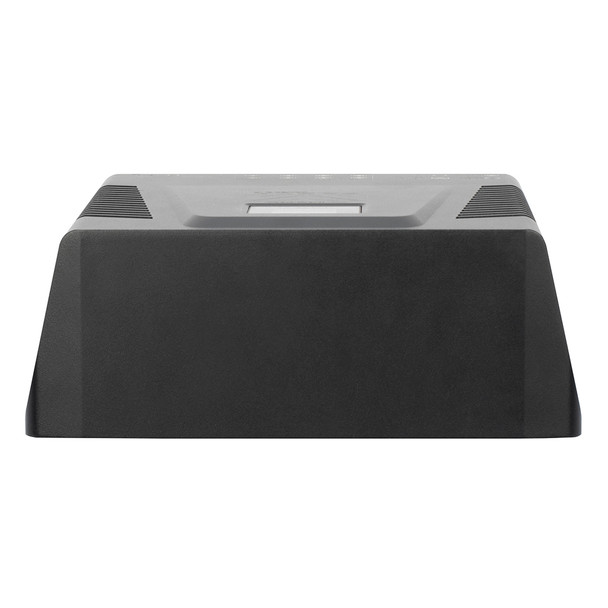

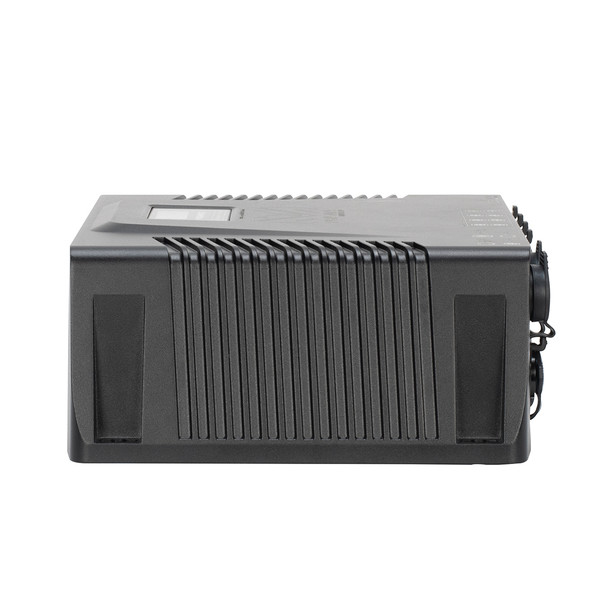

PRISMA DRIVER 8 IP™ is an easy to use 48VDC, IP65 protected, driver system which provides individual DMX-512 control including variable delayed time dimming modes for up to (8) PRISMA MINI UV LED series fixtures including the PRISMA MINI PAR 20™, PRISMA MINI PAR 45™ and the PRISMA MINI BAR 20™.

Features

Features include a rugged IP65 housing, easy keyhole slots for wall and surface mounting, multiple DMX control modes, an onboard 4 button touch control panel, 8x 4pin locking output sockets, DMX 5pin locking XLR in/out and locking power in/out.


Specifications

CONSTRUCTION
Rugged IP65 Housing

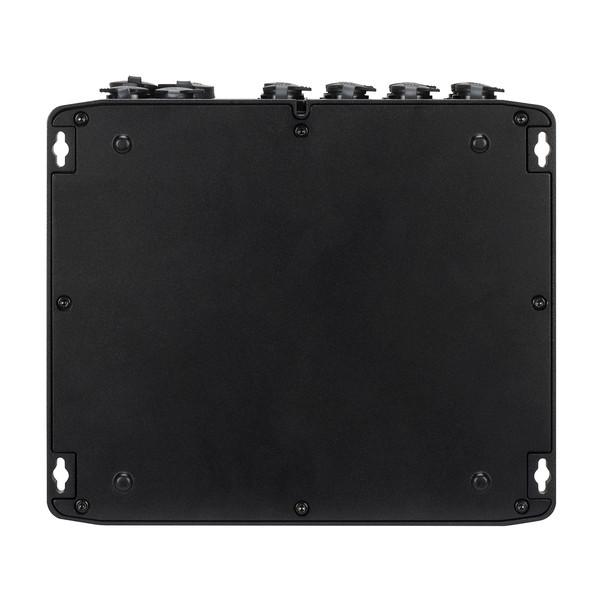

Easy Keyhole Slots for Wall/Surface Mounting

CONTROL
Multiple DMX Channel Modes

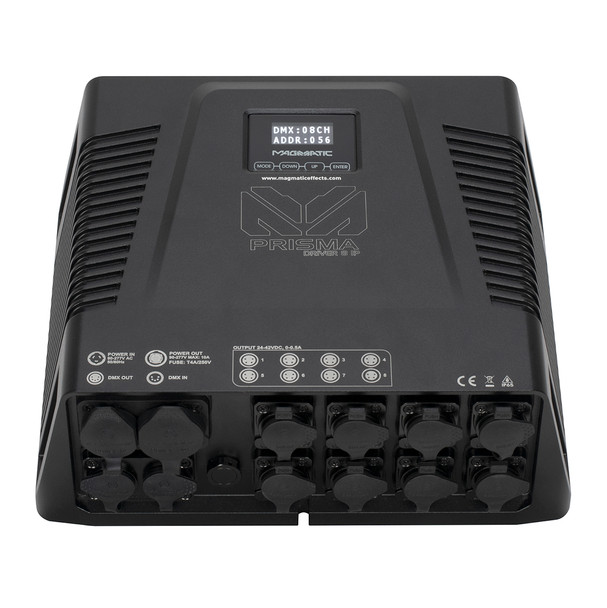

Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support

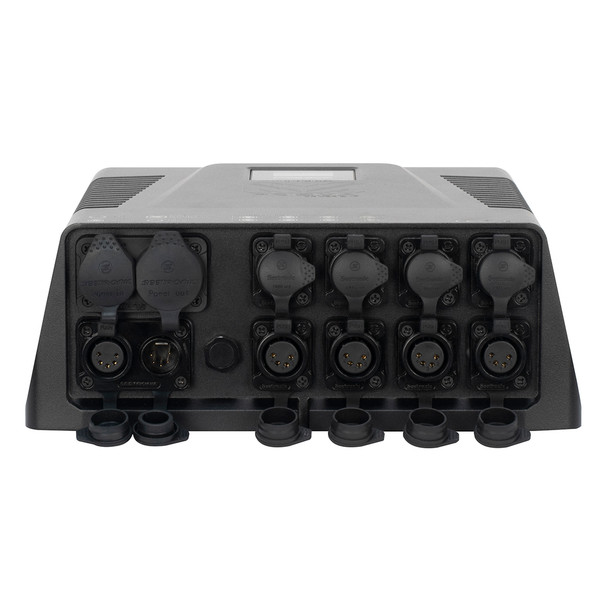

CONNECTIONS
8x 4pin locking output sockets (8 PRISMA MINI fixtures max)
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 4.05 in. (102.9mm)
Width: 10.4 in. (264.3mm)
Height: 8.74 in. (221.9mm)
Weight: 8.05 lbs. (3.65 kg)

ELECTRICAL
AC90-240V, 50-60Hz
48VDC 8.3A
167W Max Power Consumption

THERMAL
Maximum Temperature (Ambient): 113° F (45° C)
Minimum Temperature (Ambient): 14° F (-10° C)

APPROVALS / RATINGS
CE | cETLus *Pending | IP65
