Description

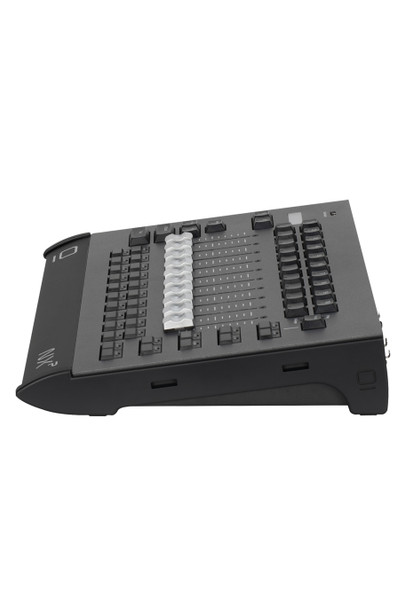

Elation Professional NXP 10 Motorized Fader Playback Wing

The NX P is a motorized fader wing for ONYX. The ideal expansion for the NX1 console and ONYX PC systems, it replicates the full playback section of the NX1 console. Four integrated DMX ports provide instant connectivity to the lighting system.

Multiple NX P wings can be connected to any ONYX console or PC system, expanding direct access with 20 playbacks at a time. The flexible button array can be mapped to playback control or powerful function keys. The NXP replicates the layout and all functionality of the NX1 and NX4 console surfaces so all operation is seamless and intuitive.

A simple magnetic alignment system allows attachment on any side of the NX1 console or NX K command pad. The keypad and playback wing are part of the ONYX platform and can be utilized with all other NX devices or ONYX on any PC system.

KEY FEATURES

Portable and compact motorized playback wing

10 Motorized Playbacks, 10 Playback / Function Hybrids, 4 Encoders, Master Go section

4x DMX Ports integrated

ONYX Nova+ License (4 Universes + MIDI/OSC/ Timecode support)

SPECIFICATIONS

SURFACE

10x 60 mm motorized playback faders, each with 4x function-assignable buttons

10x customizable playback or multi-function keys

Playback Select button

Master Go section with Go, Pause, Snap and Release

CONNECTIONS

4x DMX / RDM Universe In/Out: 5pin locking XLR

IP65 Locking Power In

1x USB-B 2.0 input

PHYSICAL

Length: 298.5 mm (11.75 in.)

Width: 373mm (14.7 in.)

Height: 71 mm (2.8 in.)

Weight: 4.5 kg (9.9 lbs.)
