Elation Professional IPC415 Overview
The IPC415-DMX Power Control Center from Elation Professional offers four powerCON outputs (15A max each), four 5-pin XLR DMX outputs, one 5-pin XLR DMX input, one 5-pin XLR DMX thru-put, and a multi-voltage universal auto switching 100-240 VAC power supply. The unit features an internal scheduler that switches on or off when a signal is lost or a cue is triggered from a DMX console. The ICP415 comes with ears for rack-mounting but it can also be mounted with an optional clamp via the unit's M10 rigging point at its center.
Benefits
- 2 x DMX control modes (1/4)
- Internal on/off scheduler
- 1 x 5-pin XLR DMX input
- 5-pin XLR DMX output (thru-put)
- 4 x 5-pin XLR DMX outputs

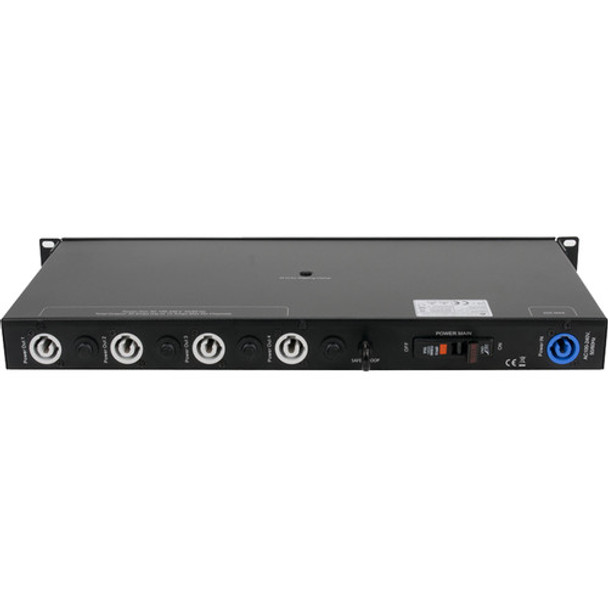

- 4 x powerCON 15 amp outputs (NAC3MPB-1)
- Main 20 amp power switch
- powerCON power input (NAC3MPA-1)
- 19" rackmount ears included

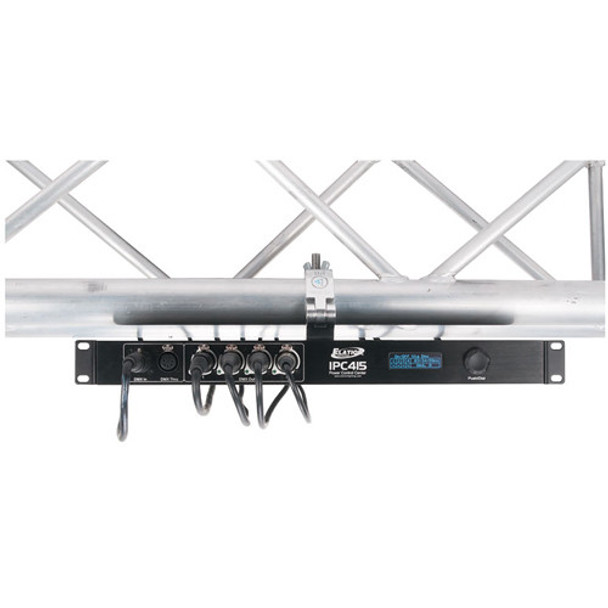

- M10 rigging center point for truss mounting (clamp not included)
Elation Professional IPC415 Specs
| Ports | 1 x 5-Pin XLR DMX Input 1 x 5-Pin XLR DMX Output 4 x 5-Pin XLR DMX Output 4 x powerCON |
| Power Consumption | 7 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Operating Temperature | 35 to 113°F / 2 to 45°C |
| Certifications | CE, as per Manufacturer |
| Dimensions | 19.0 x 9.1 x 1.7" / 482.0 x 232.0 x 44.0 mm |
| Weight | 6.6 lb / 3 kg |
| Package Weight | 8.7 lb |
| Box Dimensions (LxWxH) | 21 x 11.7 x 5" |
