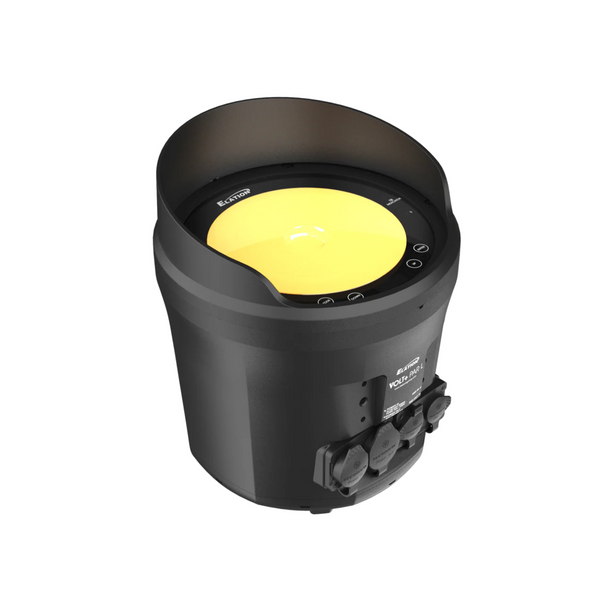

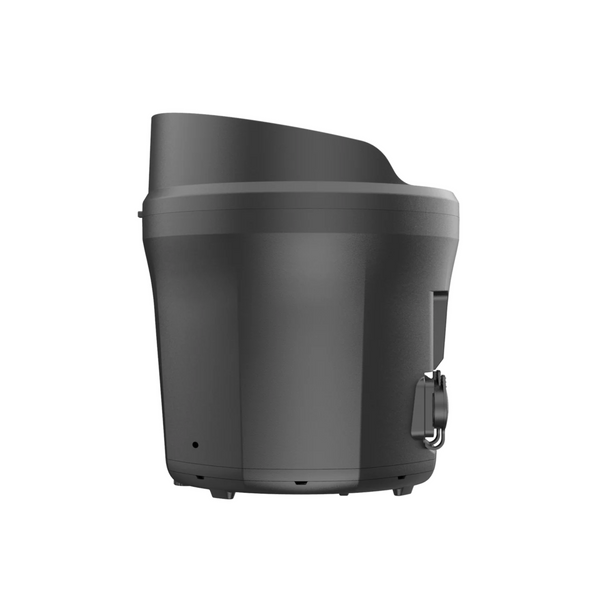

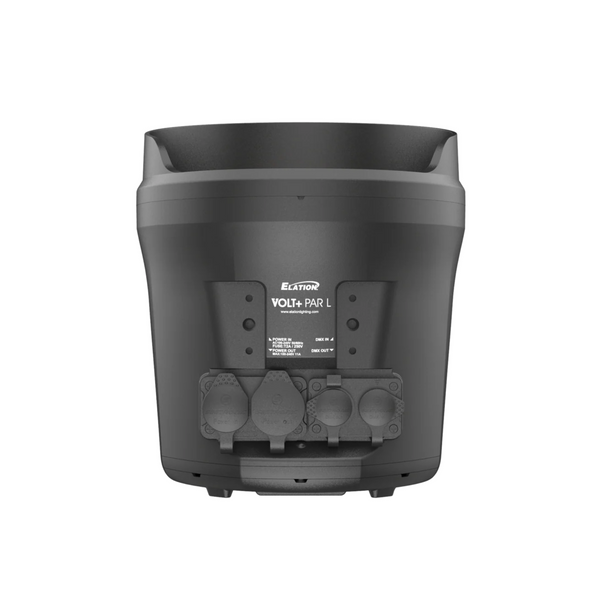

Elation Lighting VOL327 60W Battery PAR

Introducing the VOLT+ PAR L, a next-generation replacement fixture in Elation’s popular VOLT Series that delivers the ultimate in battery-powered lighting performance with enhanced efficiency, versatility, and durability in a sleek form factor.

Designed as a direct upgrade for previous VOLT models, the VOLT+ PAR L features cutting-edge RGB+Lime+Amber+UV LED technology, providing superior color mixing, increased output, and exceptional color rendering with a high CRI. Its fully homogenized beam ensures smooth, even coverage with no color separation, making it ideal for both wash and direct-view applications. The fixture’s sleek design with integrated power and DMX connectors make wire free, or wired setups a breeze.

Built with an IP65-rated housing and a rugged construction, the VOLT+ PAR L is ready for any environment, indoors or outdoors, making it the perfect solution for productions, installations, and events where mobility and reliability are key.

For added convenience and extended wireless runtime, the VOLT+ PAR L offers an optional external battery, giving users the flexibility to keep their designs untethered for even longer durations.

Whether used as a wash light, uplight, accent fixture, or direct-view pixel effect, the VOLT+ PAR L delivers exceptional flexibility with numerous wireless control options, including an IR Remote, Prebuilt & Custom Standalone Effect Sequences, proprietary Aria x2 wireless device management and NFC Configuration.

With its advanced technology, effortless portability, and expanded accessory options, the VOLT+ PAR L is the ultimate choice for lighting professionals who demand uncompromising performance and adaptability.

Features

• 60W RGBLA+UV LED
• 3600 Total Fixture Lumen Output (Sphere)
• 90.9 CRI
• 15° Beam Angle, Diffusion Lens Included
• Removable Snoot Included
• >12hr Maximum Battery Run Time
• IP65 Rated

Specifications

SOURCE

• 60W RGBLA+ UV LED
• 30,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

Total Lumen Output:

• 3,600 (Integrating Sphere)
• CRI- 90.9
• TLCI- 80
• Beam Angle: 15°
• Field Angle: 28°

EFFECTS

• Prebuilt & Custom Standalone Effect Sequences
• Electronic Dimmer and Strobe
• Variable 16-bit Dimming Modes and Curves

COLOR

• RGBLA+ UV Color Array
• CMY Emulation
• Variable CCT 2400K - 8500K
• Virtual Gel Swatch Book

CONTROL / CONNECTIONS

• 8 DMX Channel Modes (1ch, 3ch, 6ch, 9ch, 11ch, 14ch, 14ch, 20ch)
• 4 Button Control Panel, LED Display
• Aria x2 Wireless Device Management
• IR Remote
• NFC Configuration
• 5pin DMX and IP65 Locking Power Cable In/Out

ELECTRICAL / THERMAL

• AC 100-240V - 50/60Hz
• 70W Max Power Consumption
• 5°F to 113°F (-15°C to 45°C)
• BTU/hr (+/- 10%) 238.7

BATTERY

• Lithium Ion Rechargeable
• Battery Capacity: 19.2Ah
• Battery Voltage: 18V
• Charge Time: 4.5hr
• Battery Life: >12hr
• Battery Recharge Cycles: >300 to 80% Capacity

INCLUDED ITEMS

• Diffusion Filter
• Concentric Ring
• Removable Half Snoot

OPTIONAL ITEMS

• VOLT+ IR REMOTE (VOL555)
• VOLT+ PAR L YOKE (VOL359)
• VOLT+ PAR L LENS KIT (VOL345)
• VOLT+ PAR BATTERY BASE (VOL402)
• VOLT+ PAR STAND ADAPTER
• VOLT+ PAR L 6-PACK (VOL302)
