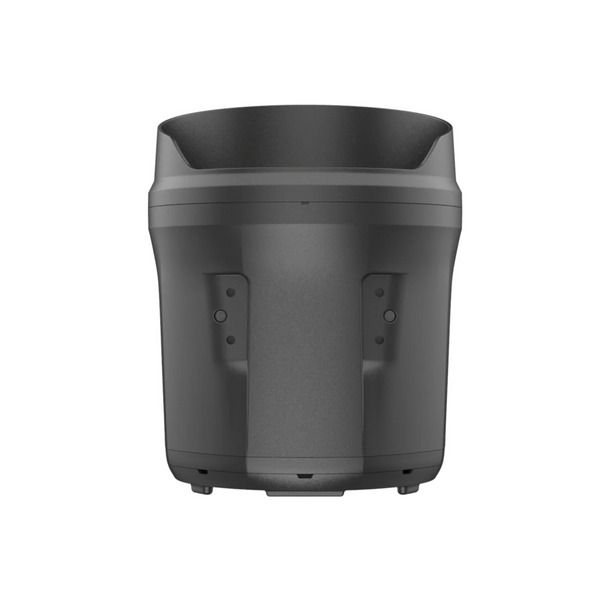

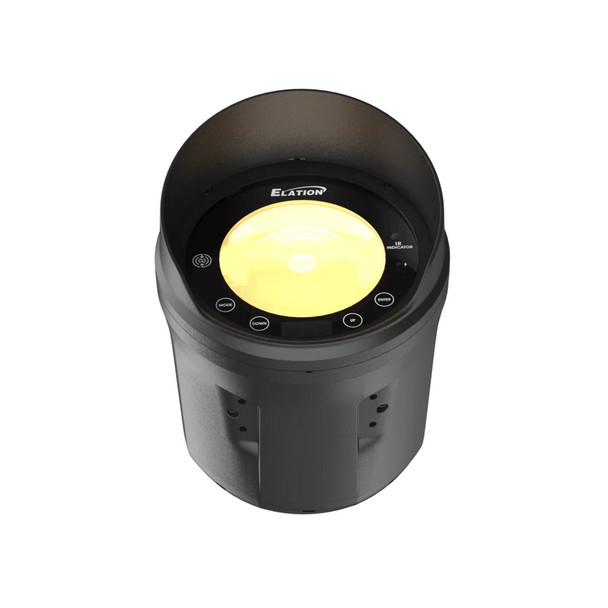

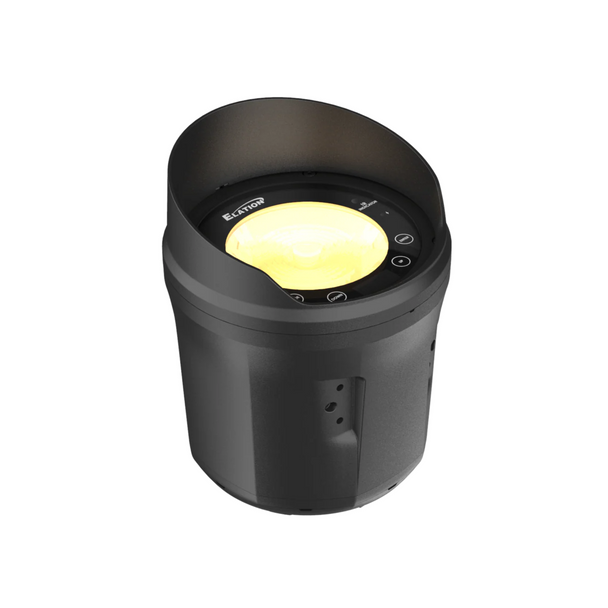

Elation Lighting VOL214 40W RGBMA+UV LED Battery PAR

Introducing the VOLT+ PAR S, a next-generation replacement fixture in Elation’s popular VOLT Series that delivers the ultimate in battery-powered lighting performance with enhanced efficiency, versatility, and durability in a compact, sleek form factor.

Designed as a direct upgrade for previous VOLT models, the VOLT+ PAR S features cutting-edge RGB+Lime+Amber+UV LED technology, providing superior color mixing, increased output, and exceptional color rendering with a high CRI. Its fully homogenized beam ensures smooth, even coverage with no color separation, making it ideal for both wash and direct-view applications. The fixture’s sleek, connection-free design eliminates external cabling, ensuring a clean, professional look that seamlessly integrates into any setup.

Built with an IP65-rated housing and a rugged construction, the VOLT+ PAR S is ready for any environment, indoors or outdoors, making it the perfect solution for productions, installations, and events where mobility and reliability are key.

For added convenience and extended runtime, the VOLT+ PAR S offers an optional wired charging and DMX base, allowing users to operate the fixture while simultaneously charging, ensuring uninterrupted use for longer events or run DMX when wireless operation would prove difficult. Additionally, an optional external battery is available for extended wireless operation, giving users the flexibility to keep their designs untethered for even longer durations.

The optional Bowens mount adapter expands creative possibilities by allowing compatibility with a wide range of light-shaping modifiers, enabling precise beam control and customized visual effects.

Whether used as a wash light, uplight, accent fixture, or direct-view pixel effect, the VOLT+ PAR S delivers exceptional flexibility with numerous wireless control options, including an IR Remote, Prebuilt & Custom Standalone Effect Sequences, proprietary Aria x2 wireless device management and NFC Configuration.

With its advanced technology, effortless portability, and expanded accessory options, the VOLT+ PAR S is the ultimate choice for lighting professionals who demand uncompromising performance and adaptability.

Features

• 30W RGBLA+UV LED
• 1975 Total Fixture Lumen Output (Sphere)
• 90.9 CRI
• 20° Beam Angle, Diffusion Lens Included
• Removable Snoot Included
• Optional Wired DMX & Power Charging Base
• Optional Bowen Mount Adapter
• >12hr Maximum Battery Run Time
• IP65 Rated

Specifications

SOURCE

• 30W RGBLA+ UV LED
• 30,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

• Total Lumen Output:
• 1,975 (Integrating Sphere)
• CRI- 90.9
• TLCI- 80
• Beam Angle: 20°
• Field Angle: 32°

EFFECTS

• Prebuilt & Custom Standalone Effect Sequences
• Electronic Dimmer and Strobe
• Variable 16-bit Dimming Modes and Curves

COLOR

• RGBLA+ UV Color Array
• CMY Emulation
• Variable CCT 2400K - 8500K
• Virtual Gel Swatch Book

CONTROL / CONNECTIONS

• 8 DMX Channel Modes (1ch, 3ch, 6ch, 9ch, 11ch, 14ch, 14ch, 20ch)
• 4 Button Control Panel, LED Display
• Aria x2 Wireless Device Management
• IR Remote
• NFC Configuration
• Wireless Power Charging
• Optional Charging Base with:
• 5pin DMX and IP65 Locking Power Cable In/Out

ELECTRICAL / THERMAL

• AC 100-240V - 50/60Hz
• 40W Max Power Consumption
• 5°F to 113°F (-15°C to 45°C)
• BTU/hr (+/- 10%) 136.4

BATTERY

• Lithium Ion Rechargeable
• Battery Capacity: 9.6 Ah
• Battery Voltage: 18V
• Charge Time: 4hr
• Battery Life: >12hr
• Battery Recharge Cycles: >300 to 80% Capacity

INCLUDED ITEMS

• Diffusion Filter
• Concentric Ring
• Removable Half Snoot

ORDERING INFORMATION

• VOLT+ PAR S 6-PACK (VOL201)
• (Kit Includes: 6x VOLT+ PAR S, 2x IR Remote, 1x Charging Roadcase)
• VOLT+ PAR S Base Pack (VOL242)
• (Kit Includes: 1x VOLT+ PAR S & 1x VOLT+ PAR S Connector Base)

OPTIONAL ITEMS

1. VOLT+ IR REMOTE (VOL555)
2. VOLT+ PAR S YOKE (VOL231)
3. VOLT+ PAR S LENS KIT (VOL256)
4. VOLT+ PAR S BOWENS ADAPTER (VOL243)
5. VOLT+ PAR S CONNECTOR BASE (VOL228)
6. VOLT+ PAR STAND ADAPTER
7. VOLT+ PAR BATTERY BASE (VOL402)
