Description

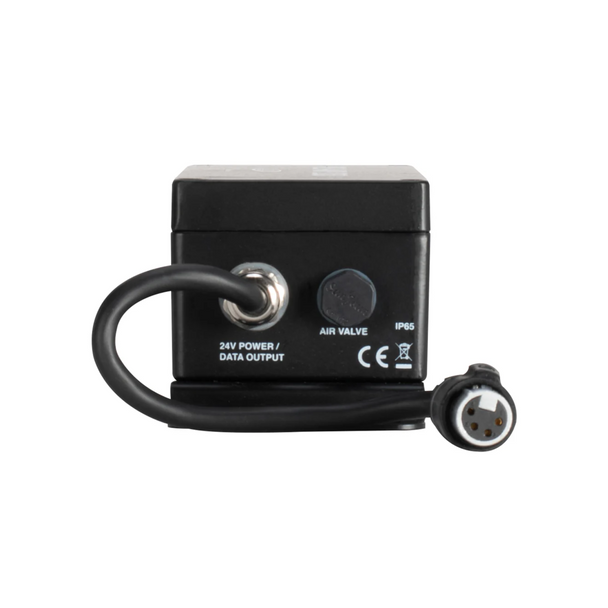

The Pixel Amp 200 is a 200W power and signal amplifier for the Pixel Wash 40IP, Pixel Tape 16IP and Pixel Tape 40IP. This amplifier is designed to work in conjunction with the Elation Pixel Driver 170IP, Pixel Driver 1000IP or the Pixel Driver 4000V3. Each Pixel Amp 200 can power up to 8 Pixel Wash 40IP's in standard mode or 5 Pixel Wash 40IP's in HiPower mode. Up to 4 Pixel Amp 200's can be used in line for each driver output giving you the ability to control a total of 40 Pixel Wash 40IP's in standard mode or 25 Pixel Wash 40IP's in HiPower mode for each driver output. When driving Pixel Tape, up to 6 total tapes can be used per output with use of a Pixel Amp 200 after the third tape. The unit comes equipped with Power In, Data In/Out pigtail connections, and is IP65 rated, which protects the unit from the ingress of dust, as well as low pressure water jets sprayed from any direction.
Can power/drive up to 8 Pixel Wash 40IP's in standard mode or 5 Pixel Wash 40IP's in HiPower mode. Up to 3 additional Pixel Tape 16IP or Pixel Tape 40IP can be added per port. 6 Tapes Max per port with use of a Pixel Amp 200 after the third tape.
- IP65 Rated
- 200W Power Amplifier for Pixel Wash 40IP, Pixel Tape 16IP and Pixel Tape 40IP
- For use with Pixel Driver 170IP, Pixel Driver-1000IP, and Pixel Driver-4000 V3
Specifications
CONTROL / CONNECTIONS
ELECTRICAL
APPROVALS / IP RATING
