Description
The EWDMX IP™ is an IP65 rated wireless DMX transceiver solution featuring a 2dbi outdoor antenna, up to 1,640 ft (500m) wireless DMX range*, FHSS (Frequency Hoping Spread Spectrum) of 1,800 tps, datasafe technology providing wireless fidelity and error correction, invisi-wire high-fidelity technology providing input matching output, easy-to-use single push button function/mode control, RDM (Remote Device Management) support, 2.4GHz radio license free worldwide, TDMA (Time Division Multiple Access), W-DMX G4 protocol support, single DMX-512 universe, a rugged hard plastic case, and a multi-voltage universal auto switching power supply (100-240v).

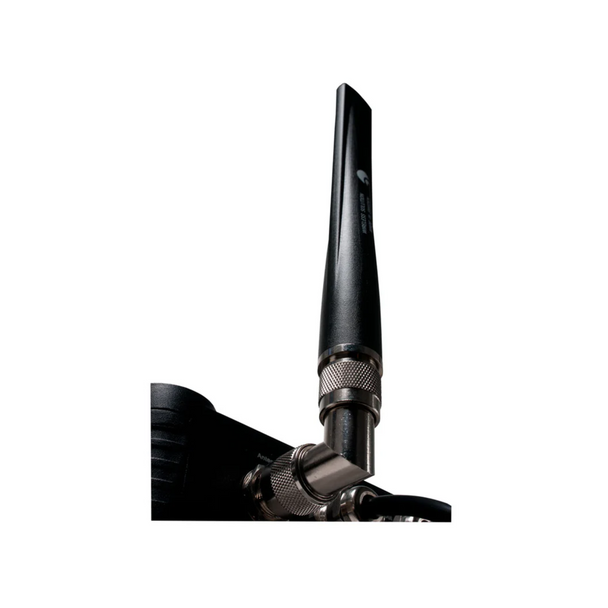

- IP65 Wireless DMX Transceiver with 2dbi Outdoor Antenna
- Up To 1,640 ft. (500m) Wireless DMX Range*
- FHSS (Frequency Hoping Spread Spectrum) 1,800 tps
- Datasafe Tech - Wireless Fidelity and Error Correction
- Invisi-Wire High-Fidelity Tech - Output Matches Input
- Easy-To-Use Single Push Button Function Control
- RDM (Remote Device Management) Support
- 2.4GHz Radio "“ License Free Worldwide
- TDMA (Time Division Multiple Access)
- W-DMX G4 Protocol Support
- Rugged Hard Plastic Case
- Single DMX-512 Universe
Specifications

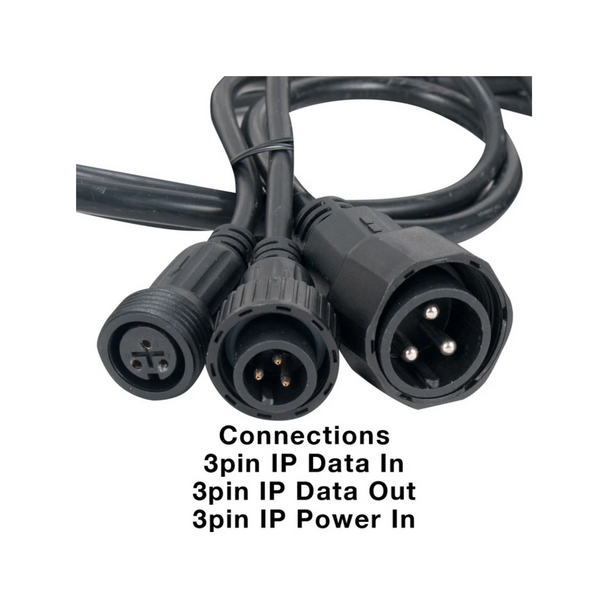

CONTROL / CONNECTIONS
Antenna Port
3pin IP Data Input
3pin IP Date Output
3pin IP Power Input
WIRELESS RANGE
*Based on general testing of the EWDMX IP™ in an outdoor urban area with normal interference, installed in a location 9.8 ft. (3m) ABOVE AUDIENCES and/or GROUND LEVEL, with a DIRECT LINE OF SIGHT (Tx Antenna to Rx Antenna), and 80%+ signal strength.
ELECTRICAL / THERMAL
3W Max Power Consumption
14°F (-10°C) to 113°F (45°C)
APPROVALS / RATINGS
INCLUDED ACCESSORIES
(1) 3pin IP to 5pin DMX Input Cable
(1) 3pin IP to 5pin DMX Output Cable
(1) Clamp Mounting Bracket (2) Screws
(1) Safety Cable
