Description

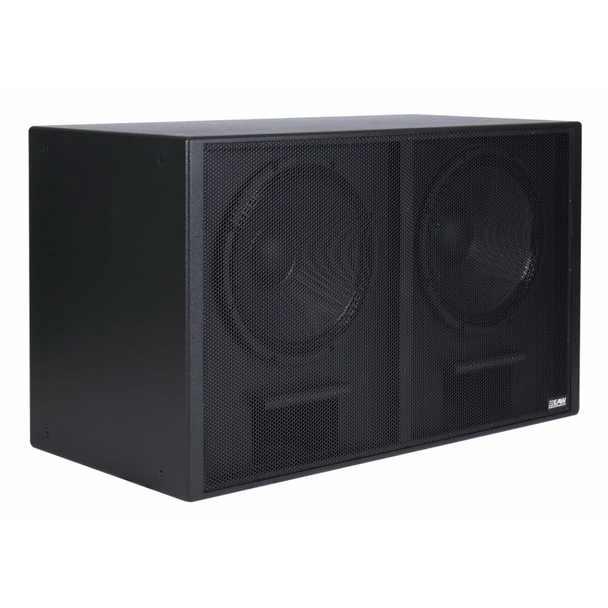

The EAW SB528zP-WP is a passive subwoofer within EAW's SB family for dedicated low-frequency reinforcement in professional sound systems. It fits systems in which amplification and processing for the low-frequency section are provided externally. This ordering SKU is the WP weather-protected configuration, the permanent install configuration.
Features
- Driver configuration: 2 × 18 in cone
- Operating range: 27 Hz to 147 Hz
- Maximum SPL: 141 dB (half space)
- Power handling: Single Amp: 1400 W @ 4 Ω; Parallel: 2 × 700 W @ 8 Ω
- Weather protection: WP
- Operating mode: Single-amp LF; DSP
Why We Like This
The SB528zP-WP is a practical choice when a project calls for this loudspeaker platform in its documented weather-protected configuration.
FAQs
Q: Do I need a separate amplifier for the SB528zP-WP?
A: Yes. The SB528zP-WP is passive and needs external amplification. Match the amplifier and processing to EAW's guidance for the speaker.
Q: How do I connect the SB528zP-WP to my amplifier?
A: The SB528zP-WP connects through barrier strip. Check EAW's wiring and pinout information before making cables or terminations.
Q: How should I integrate the SB528zP-WP with my main speakers?
A: Set crossover, level, polarity, and timing for the complete system using EAW's guidance. Do not assume presets from another speaker combination will be suitable.
Q: Is the SB528zP-WP designed for outdoor installations?
A: The SB528zP-WP is weather-protected. Follow EAW's limits for exposure, mounting orientation, drainage, and connector protection when using it outdoors.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Audio Connections: |
Barrier strip |
Driver Configuration: |
2 × 18 in cone |
EAW Technologies: |
Phase Aligned LF, Symmetry of Sources |
Enclosure Material: |
Baltic birch plywood |
Finish: |
Black |
Frequency Response: |
27 Hz–147 Hz |
Maximum SPL: |
141 dB (half space) |
Power Handling: |
Single Amp: 1400 W @ 4 Ω; Parallel: 2 × 700 W @ 8 Ω |
Product Height: |
30.19 in |
Product Length: |
24.56 in |
Product Type: |
Passive Subwoofer |
Product Width: |
50.69 in |
Weather Protection: |
WP |
