Description

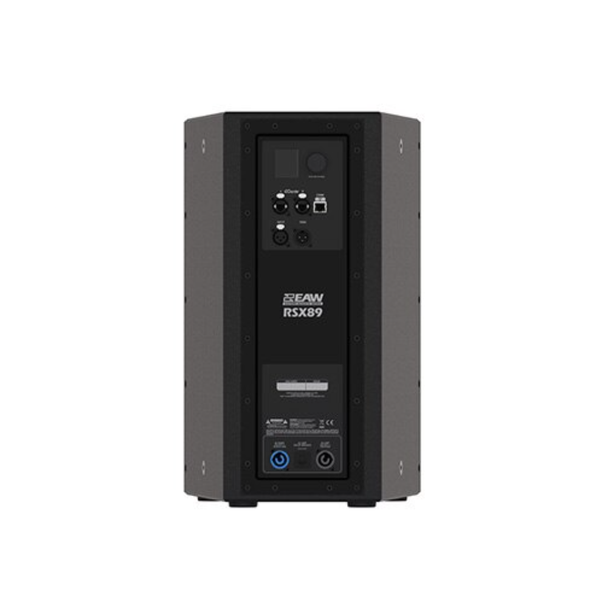

The EAW RSX89 is a self-powered professional loudspeaker within EAW's RSX family for sound reinforcement and installed audio. It fits systems where integrated amplification simplifies deployment while coverage and connectivity are selected for the venue.
Features
- Driver configuration: LF: 1 × 8 in cone, 2 in voice coil; HF: 1 × 1 in exit, 1.4 in voice coil compression driver
- Operating range: 68 Hz t o 18 kHz
- Maximum SPL: 128 dB (whole space, 12 dB crest factor)
- Nominal coverage: 90° H × 60° V
- Integrated amplification: LF: 500 W; HF: 500 W
- Operating mode: Bi-amp LF/HF; DSP with EAW Focusing and DynO
Why We Like This
The RSX89 is useful when integrated amplification and processing simplify deployment and reduce dependence on external amplifier channels.
FAQs
Q: Do I need a separate amplifier for the RSX89?
A: No. Amplification is built into the RSX89. Plan for the correct AC power and signal connections before using it.
Q: Will the RSX89 work on different mains voltages?
A: Yes. The RSX89 accepts 100–240 V AC. Check the AC connector and local power requirements before use.
Q: How do I connect the RSX89 to my audio system?
A: The RSX89 connects through XLR input with loop-through; etherCON/RJ-45 network. Check EAW's wiring and pinout information before making cables or terminations.
Q: Will the RSX89 cover my audience area?
A: That depends on the room, aiming, and seating geometry. Model the coverage before deciding speaker placement and quantity.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
AC Connector: |
Neutrik powerCON |
AC Frequency: |
50 Hz to 60 Hz |
AC Voltage: |
100–240 V |
Amplifier Output: |
LF: 500 W; HF: 500 W |
Audio Connections: |
XLR input with loop-through; etherCON/RJ-45 network |
Driver Configuration: |
LF: 1 × 8 in cone, 2 in voice coil; HF: 1 × 1 in exit, 1.4 in voice coil compression driver |
Driver Protection: |
Integral DSP limiting |
EAW Technologies: |
EAW Focusing, DynO, Beamwidth Matched Crossovers |
Finish: |
Black |
Frequency Response: |
70 Hz–20 kHz |
Maximum SPL: |
128 dB (whole space, 12 dB crest factor) |
Nominal Coverage: |
90° H × 60° V |
Power Consumption: |
Idle: 22 W; Peak draw: 175 W |
Product Height: |
19.5 in |
Product Length: |
12.8 in |
Product Type: |
Powered Loudspeaker |
Product Width: |
12.4 in |
