Description

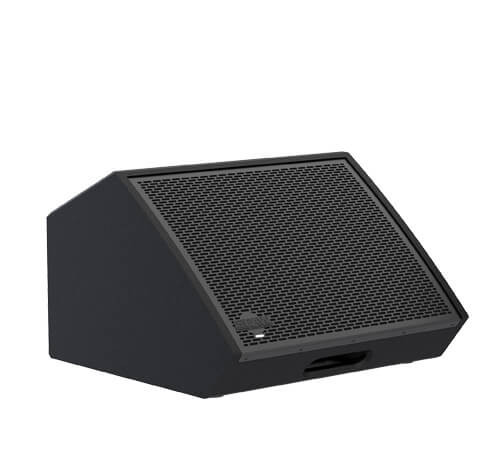

The EAW RSX12M is a self-powered stage monitor designed for performer monitoring without a separate amplifier channel. Its form factor and system role are aimed at stage-monitor applications.
Features
- Driver configuration: 1 × 12 in cone, 2.5 in voice coil 1 × 1 in exit, 1.77 in voice coil Horn-loaded compression driver
- Operating range: 55 Hz to 18 kHz
- Maximum SPL: 129 dB
- Nominal coverage: 105° H × 105° V
- Integrated amplification: LF: 500 W; HF: 500 W
- EAW technologies: EAW Focusing, DynO
- Operating mode: Bi-Amp LF/HF
Why We Like This
The RSX12M is convenient when a self-contained monitor is preferred over dedicating an external amplifier channel to the wedge.
FAQs
Q: Does the RSX12M require a separate power amplifier?
A: No. The RSX12M is self-powered and has amplification built into the loudspeaker system.
Q: What signal connection should I plan for with the RSX12M?
A: Plan around XLR input with loop-through; etherCON/RJ-45 network for this model.
Q: Does the RSX12M include EAW processing technologies?
A: Yes. The applicable EAW processing technologies are listed in the specifications for this model.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
AC Connector: |
Neutrik powerCON |
AC Frequency: |
50 Hz to 60 Hz |
AC Voltage: |
100–240 V |
Amplifier Output: |
LF: 500 W; HF: 500 W |
Audio Connections: |
XLR input with loop-through; etherCON/RJ-45 network |
Driver Configuration: |
1 × 12 in cone, 2.5 in voice coil 1 × 1 in exit, 1.77 in voice coil Horn-loaded compression driver |
Driver Protection: |
Integral DSP limiting |
EAW Technologies: |
EAW Focusing, DynO |
Finish: |
Black |
Frequency Response: |
55 Hz–18 kHz |
Maximum SPL: |
129 dB |
Nominal Coverage: |
105° H × 105° V |
Power Consumption: |
Idle 22 W Peak Draw 175 W Controls/Communication Connections 2x Neutrik® etherCON™, RJ-45 Protocols Ethernet/Dante |
Product Height: |
13.1 in |
Product Length: |
19.2 in |
Product Type: |
Powered Stage Monitor |
Product Width: |
19.7 in |
