Description

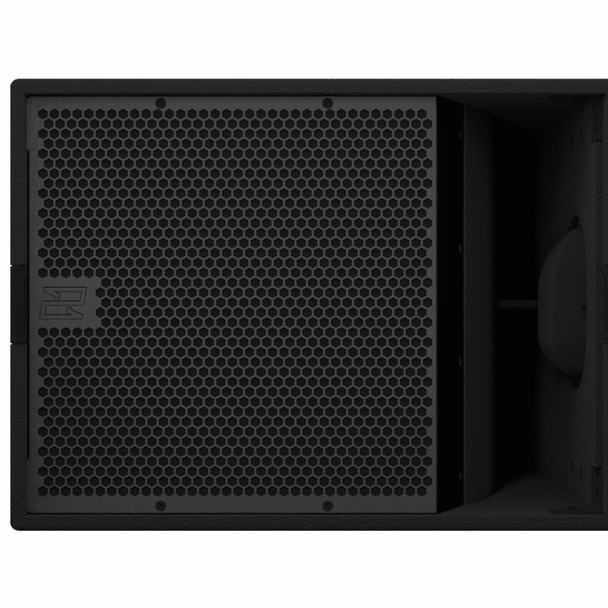

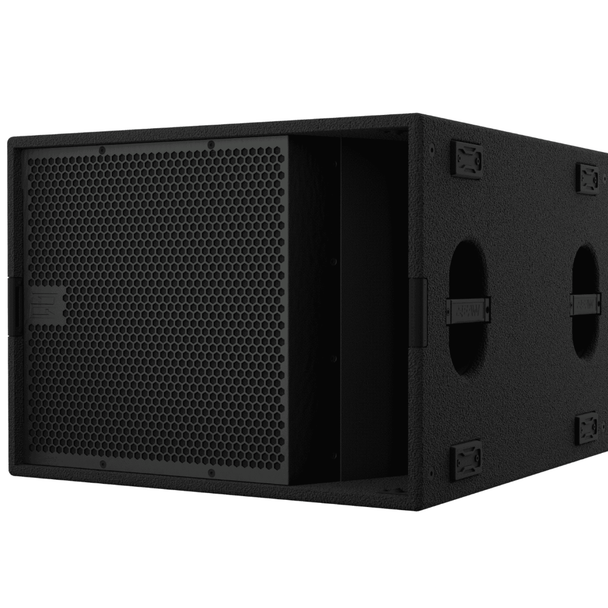

The EAW NT119S is a self-powered subwoofer within EAW's NT family for dedicated low-frequency reinforcement in professional sound systems. It fits systems that need a dedicated low-frequency section with integrated amplification.
Features
- Driver configuration: 1 × 19 in cone, 4 in VC, vented
- Operating range: 25 Hz–125 Hz
- Maximum SPL: 136 dB (half space)
- Integrated amplification: 4000 W peak
- Operating mode: Single-amp VLF; DSP with EAW DynO
- EAW technologies: DynO
Why We Like This
The NT119S is a practical way to add dedicated low-frequency capability while keeping the system architecture consistent with the selected EAW platform.
FAQs
Q: Do I need a separate amplifier for the NT119S?
A: No. Amplification is built into the NT119S. Plan for the correct AC power and signal connections before using it.
Q: Will the NT119S work on different mains voltages?
A: Yes. The NT119S accepts 100–240 V AC. Check the AC connector and local power requirements before use.
Q: How should I integrate the NT119S with my main speakers?
A: Set crossover, level, polarity, and timing for the complete system using EAW's guidance. Do not assume presets from another speaker combination will be suitable.
Q: Can the NT119S be flown as supplied?
A: No. The NT119S is sold without rigging. Check EAW's approved rigging options before planning a flown setup.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
AC Connector: |
Neutrik powerCON TRUE1 TOP |
AC Frequency: |
50 Hz to 60 Hz |
AC Voltage: |
100–240 V |
Amplifier Output: |
4000 W peak |
Amplifier Type: |
Class D |
Driver Configuration: |
1 × 19 in cone, 4 in VC, vented |
Driver Protection: |
Integral DSP limiting |
EAW Technologies: |
DynO |
Finish: |
Black |
Maximum SPL: |
136 dB (half space) |
Power Consumption: |
Idle: 60 W; 1/8 power: 150 W; Full power: 600 W |
Product Height: |
21.3 in |
Product Length: |
31.5 in |
Product Type: |
Powered Subwoofer |
Product Width: |
28.6 in |
