Description

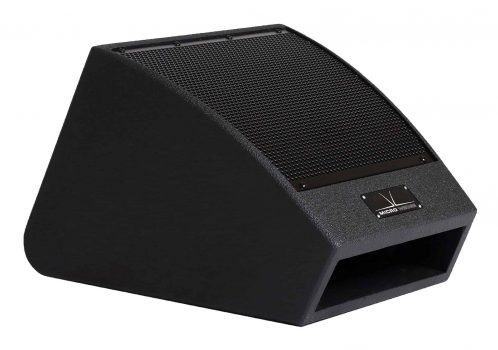

The EAW MW10 is a passive stage monitor within EAW's MW family for performer monitoring in professional production environments. It fits monitor systems built around external amplification and processing.
Features
- Driver configuration: LF: 10 in cone, vented,; HF: 1 in exit compression driver, horn-loaded
- Operating range: 65 Hz to 20 kHz
- Maximum SPL: 134 dB
- Nominal coverage: 90° H × 90° V
- Power handling: Full Range: 500 W @ 8 Ω
- Operating mode: Single-amp LF
Why We Like This
The MW10 provides a purpose-built monitoring format that fits naturally into professional stage workflows.
FAQs
Q: Do I need a separate amplifier for the MW10?
A: Yes. The MW10 is passive and needs external amplification. Match the amplifier and processing to EAW's guidance for the speaker.
Q: How do I connect the MW10 to my amplifier?
A: The MW10 connects through NL4. Check EAW's wiring and pinout information before making cables or terminations.
Q: Can I use the MW10 as a floor monitor?
A: Yes. The MW10 is designed for stage monitoring. Include amplification, processing, placement, and cabling in the monitor-system plan.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Audio Connections: |
NL4 |
Driver Configuration: |
LF: 10 in cone, vented,; HF: 1 in exit compression driver, horn-loaded |
EAW Technologies: |
EAW Focusing |
Finish: |
Black |
Frequency Response: |
65 Hz–20 kHz |
Input Impedance: |
LF/HF: nominal 8 Ω, minimum 6.9 Ω @ 220 Hz |
Maximum SPL: |
134 dB |
Nominal Coverage: |
90° H × 90° V |
Power Handling: |
Full Range: 500 W @ 8 Ω |
Product Height: |
11.36 in |
Product Length: |
18.41 in |
Product Type: |
Passive Stage Monitor |
Product Width: |
13.07 in |
Recommended High-Pass Filter: |
High Pass ≥ 60 Hz, 12 dB/octave Butterworth |
